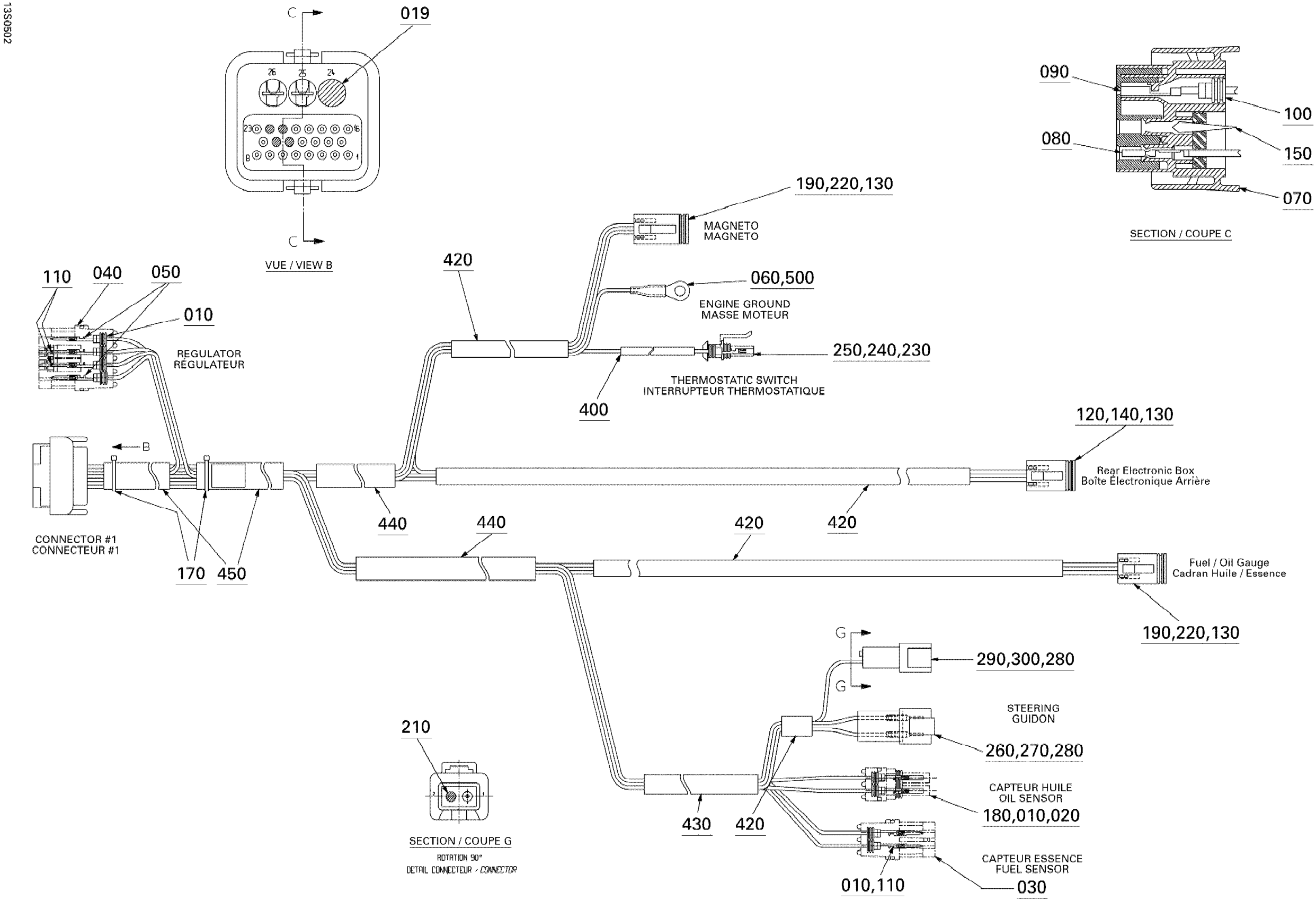

Sea-doo GTI, 2005 10- Electrical Harness Diagram
#
Description
Price
1
Main Harness Ass'y | Includes 1 to 500
278002084
Unavailable
10
Wire Seal
278000218
$4.39
19
SEAL - Call your local BRP dealership
409013900
Unavailable
20
Female Terminal
278000223
$3.19
30
Female Housing, 2 Circuits
278000217
$9.59
40
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278000394
Unavailable
50
Male Terminal
409004300
$5.61
60
Open Barrel
278000992
$2.21
70
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
80
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
90
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
100
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
110
Male Terminal | XT Models
278000222
$3.19
120
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
130
Female Terminal
278000632
$2.09
140
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
150
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
170
Tie Wrap 142 mm
293750002
$1.25
180
Male Connector, 2 Circuits
278000220
$15.49
190
Male Connector, 4 Circuits | CE
278000739
$19.49
210
Sealing Cap
293000052
$3.19
220
Male Lock, 4 Circuits | CE
278000738
$3.09
230
Wire Seal
278001013
$3.28
240
Female Terminal
278001014
$3.28
250
Male Housing, 1 Circuit
278001012
$16.86
260
Male Terminal Housing, 6 Circuits
710001539
$19.99
270
Female Lock, 6 Circuits
278000735
$3.19
280
Male Terminal
278000631
$4.39
290
Male Housing, 2 Circuits
409206900
$9.59
300
Male Lock, 2 Circuits
409207500
$3.19
400
Not Available As Spare Part - Friction Washer
Unavailable
420
Not Available As Spare Part - Friction Washer
Unavailable
430
Not Available As Spare Part - Friction Washer
Unavailable
440
Not Available As Spare Part - Friction Washer
Unavailable
450
Not Available As Spare Part - Friction Washer
Unavailable
500
Not Available As Spare Part - Friction Washer
Unavailable
