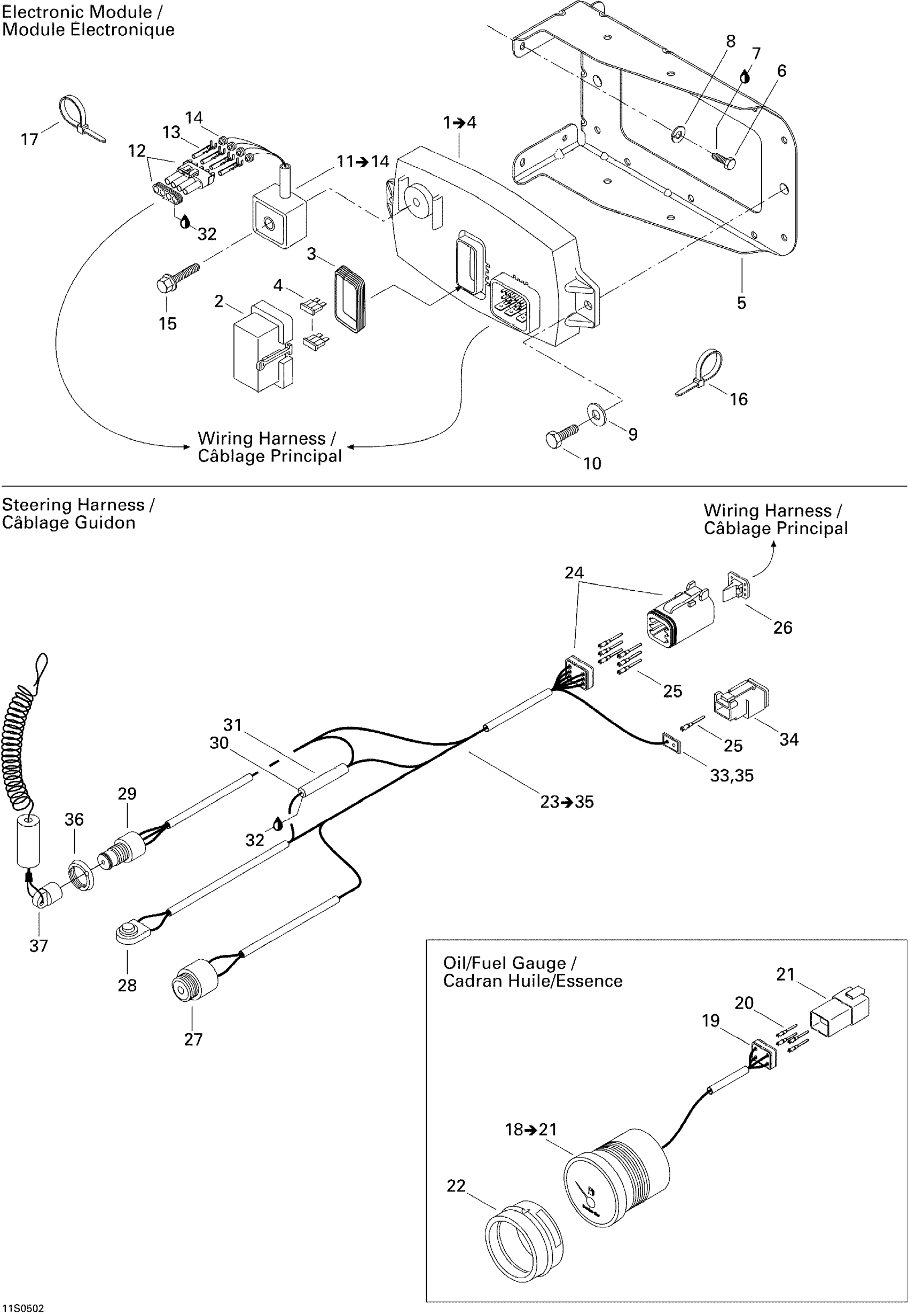

Sea-doo GTI, 2005 Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS?Y - Call your local BRP dealership | Includes 1 to 4

278001796

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

BOX SUPPORT ASS?Y - Call your local BRP dealership

278001644

Unavailable

6

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7

Loctite 271, 10 ml

293800005

$26.99

8

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

11

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

12

Male Housing, 4 Circuits

278000395

$15.99

13

Female Terminal

409007300

$0.45

14

Wire Seal

278000218

$4.39

15

Hex. Tapping Screw

211000139

Unavailable

16

Tie-Rap 173 mm

293750009

$1.04

17

Tie-Rap 180 mm

414115200

$0.11

18

Oil/fuel Gauge | GTI RFI STD, Includes 34 to 37

278002032

Unavailable

19

Female Wedge, 4 Circuits

278000636

$4.39

20

Male Terminal | GTI RFI LE

278001664

Unavailable

21

Female Housing, 4 Circuits

278000635

$16.49

22

Gauge Support

293720047

Unavailable

23

Steering Harness | Includes 23 to 35

278001791

Unavailable

24

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

25

Female Terminal

278000632

$2.09

26

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

27

BUZZER - Call your local BRP dealership

278001586

Unavailable

28

SWITCH - Call your local BRP dealership

278001587

Unavailable

29

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

30

Male Terminal

278000230

$4.39

31

Insulated Sheath

278001008

$3.28

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Sealing Cap

293000052

$3.19

34

Female Connector, 2 Circuits

409207300

$9.85

35

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

36

Safety Nut (DESS Switch)

278002963

$3.28

37

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99
