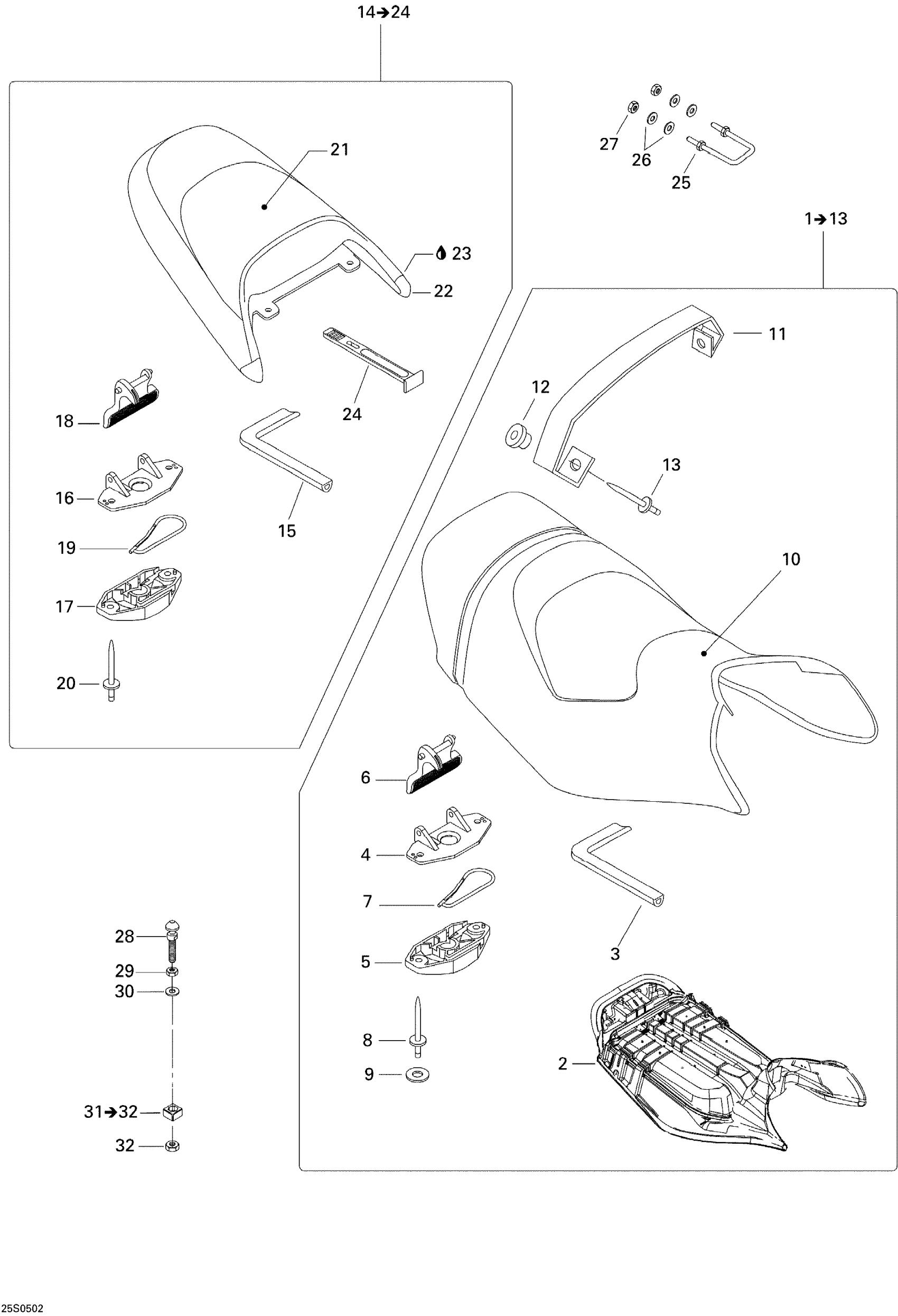

Sea-doo GTI, 2005 09- Seat Diagram
#
Description
Price
1
FRONT SEAT ASS'Y, BRIGHT YELLOW - Call your local BRP dealership | Includes 1 to 13
269001168
Unavailable
2
Seat Base
269000829
Unavailable
3
Was 293200062 Seal
219704366
$76.49
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Spring
269700017
$9.19
8
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Seat Strap, Bright Yellow
269001170
Unavailable
12
Grommet
293720067
$12.99
13
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
14
Rear Seat Ass'y, Bright Yellow | Includes 14 to 24
269001171
Unavailable
15
Was 293200062 Seal
219704366
$76.49
16
Latch Ass'y
269700109
$24.99
17
Latch Ass'y
269700109
$24.99
18
Latch Ass'y
269700109
$24.99
19
Latch Spring
269700017
$9.19
20
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
RH Seat Corner, Bright Yellow
269001173
Unavailable
22
LH Seat Corner, Bright Yellow
269001174
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
24
Strap
269502417
$17.69
25
Seat Bow-Eye
291001527
Unavailable
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Elastic Stop Nut M6
232561600
$1.15
28
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
29
Hex. Jam Nut M10
232100600
$2.22
30
Flat Washer 10 mm, Stainless
234002600
$2.22
31
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
32
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
