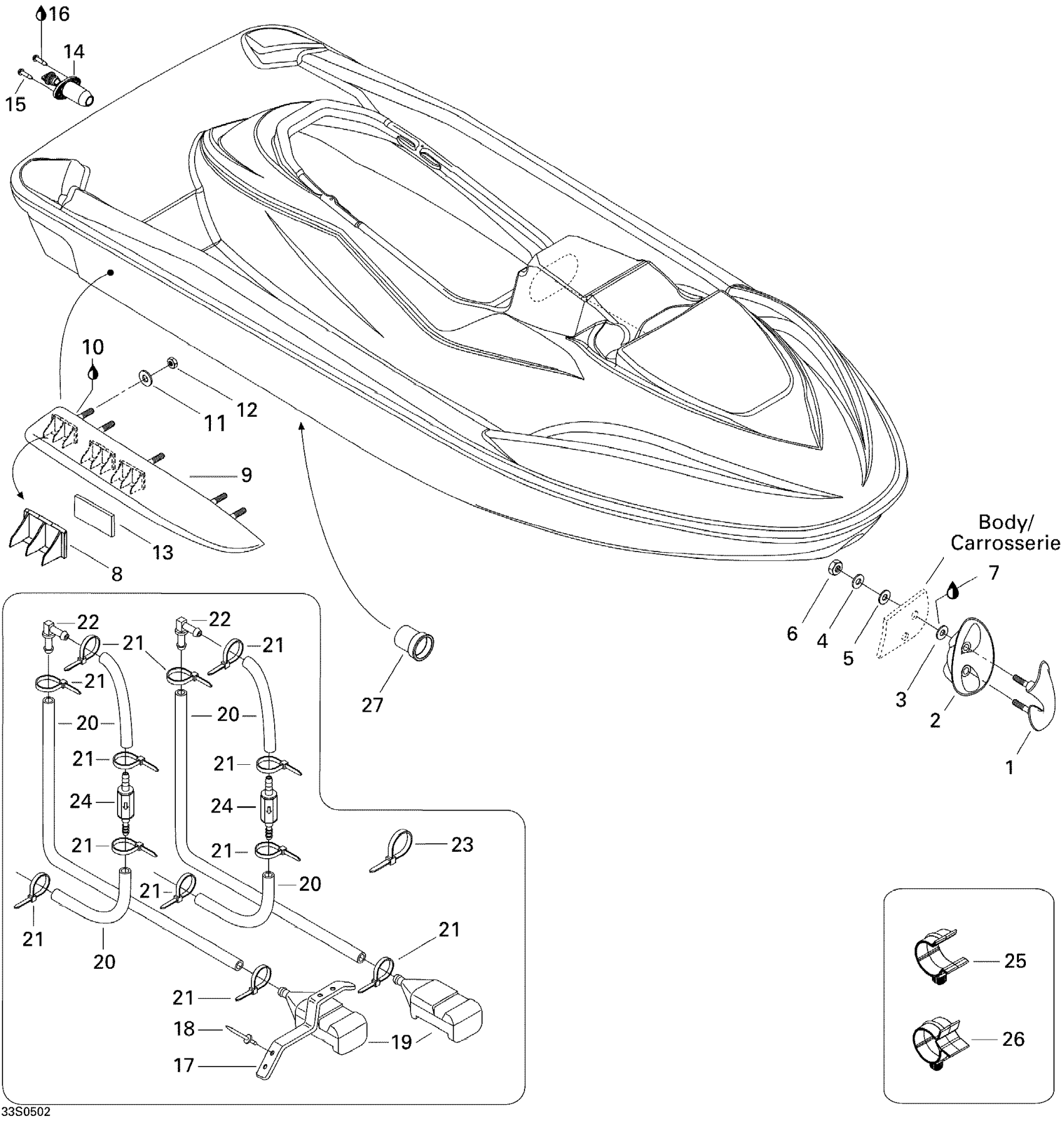

Sea-doo GTI, 2005 09- Hull Diagram
#
Description
Price
1
Bow Eye Ass'y, White
292000710
Unavailable
2
Shell, White
292000511
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
$0.55
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8
232581600
$1.48
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
Insert
293450149
Unavailable
9
RH SPONSON - Call your local BRP dealership
292000594
Unavailable
9
LH SPONSON - Call your local BRP dealership
292000595
Unavailable
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
Flat Washer M6
250200046
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
CUSHION - Call your local BRP dealership
292000414
Unavailable
14
Drain Plug
292001252
$36.99
15
Hex. Screw 10-14 X 7/8”
211000023
$3.59
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
18
Avdel Rivet 3/16"
293150037
$0.56
19
Bailer Screen
292000688
Unavailable
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
23
Tie Wrap 368 mm
293750008
$1.04
24
Check Valve
276000093
Unavailable
25
Cable Retainer
275500527
$2.68
26
Retainer
275500590
$9.69
27
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
