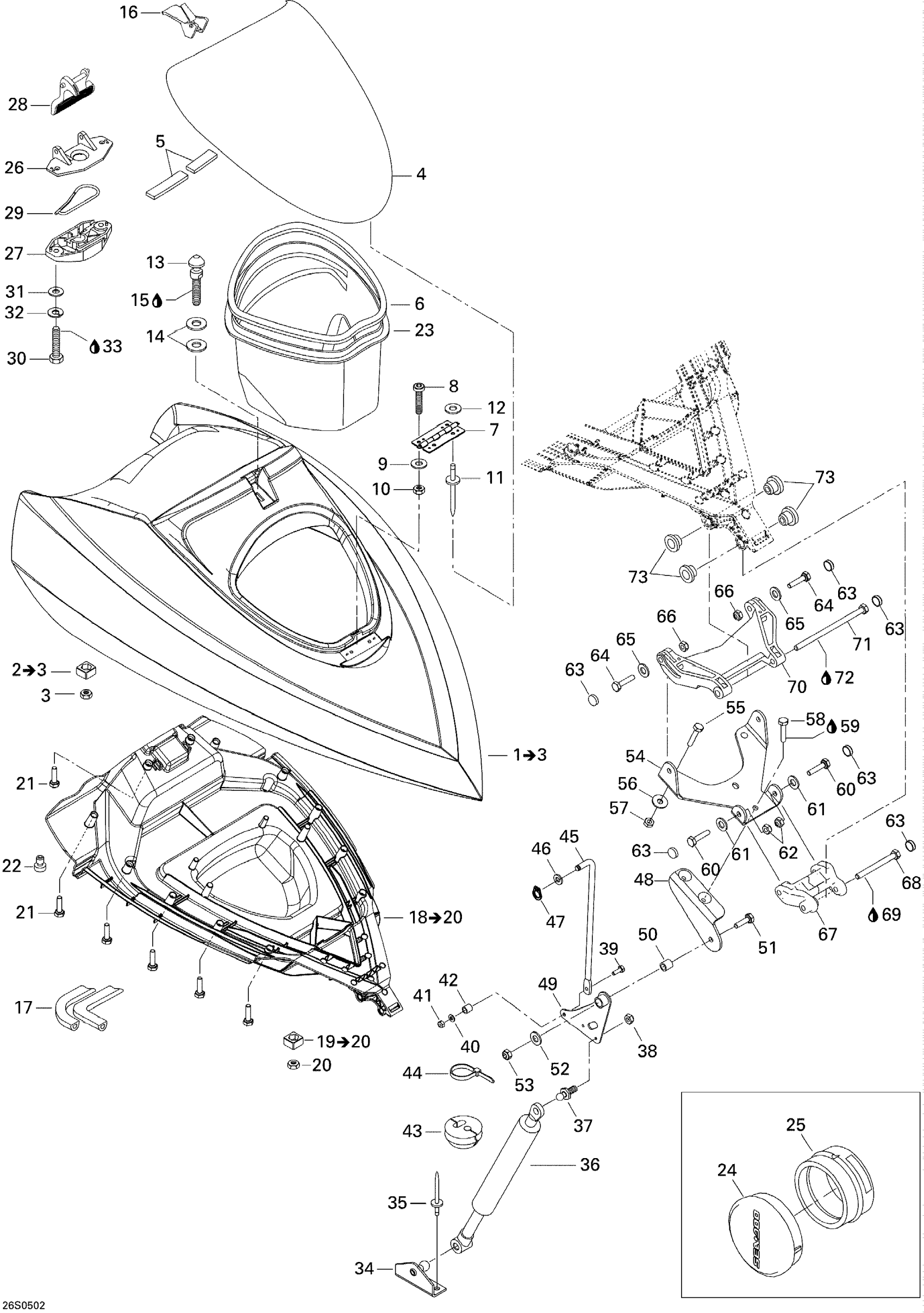

Sea-doo GTI, 2005 09- Front Storage Compartment Diagram
#
1
Storage Cover Ass'y | STD, Includes 1 to 3
269501380
Unavailable
2
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
3
Hex. Nut M6
232061600
$1.15
4
Access Cover, Bright Yellow
269500337
Unavailable
5
Neoprene Seal (1PAC=3M)
219704364
$27.49
6
Was 293200017 Neoprene Seal
219704365
$149.99
7
HINGE - Call your local BRP dealership
269500338
Unavailable
8
Socket Head Screw M5 X 16
205451660
$1.15
9
Flat Washer 5 mm, Stainless
234052600
$0.77
10
Elastic Stop Nut 5 mm
232551200
$1.47
11
Pop Rivet 3/16"
204000081
$1.49
12
Flat Washer 5 mm, Stainless
234052600
$0.77
13
ANCHORING STUD - Call your local BRP dealership
291001242
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
Loctite 243, 10 ml
293800060
$21.49
16
Latch
269501487
$16.99
17
Was 293200017 Neoprene Seal
219704365
$149.99
18
Lower Cover Ass'y | Includes 34 to 36
269501420
Unavailable
19
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
20
Hex. Nut M6
232061600
$1.15
21
Hex. Flange Screw K40 X 13
241141360
$0.67
22
Rubber Bumper
293830005
$8.09
23
GLOVE BOX - Call your local BRP dealership
269501121
Unavailable
24
Gauge Cap | STD
293000068
Unavailable
25
Gauge Support
293720047
Unavailable
26
Latch Ass'y
269700109
$24.99
27
Latch Ass'y
269700109
$24.99
28
Latch Ass'y
269700109
$24.99
29
Latch Spring
269700017
$9.19
30
Hex. Screw M6 X 30
207063060
$1.89
31
Stainless Flat Washer M6
234061600
$0.33
32
Lock Washer Helical M6
234161601
$1.15
33
Loctite 243, 10 ml
293800060
$21.49
34
SHOCK SUPPORT - Call your local BRP dealership
291002124
Unavailable
35
Avdel Rivet 3/16"
293150037
$0.56
36
GAS SHOCK - Call your local BRP dealership
269500988
Unavailable
37
Ball Head Stud
250300016
$14.81
38
Hex. Elastic Nut M8
232581600
$1.48
39
Hex. Screw M4 X 16 | Europe
207141660
$1.47
40
Flat Washer 4 mm, Stainless
234041600
$1.15
41
Elastic Stop Nut M4
232541600
$1.15
42
Spacer
269500841
Unavailable
43
CABLE GROMMET - Call your local BRP dealership | North America
293720070
Unavailable
44
Tie-Rap 180 mm
414115200
$0.11
45
ROD - Call your local BRP dealership
269500842
Unavailable
46
Stainless Flat Washer M6
234061600
$0.33
47
CIRCLIP 6 MM - Call your local BRP dealership | North America
293370005
Unavailable
48
SUPPORT LEVER - Call your local BRP dealership
269501742
Unavailable
49
LEVER - Call your local BRP dealership
269501020
Unavailable
50
SPACER - Call your local BRP dealership
269501022
Unavailable
51
Hex. Screw M6 X 30
207163060
$1.48
52
Flat Washer M6, Stainless
234062600
$0.77
53
Hex. Elastic Stop Nut M6
232561600
$1.15
54
PIVOT SUPPORT - Call your local BRP dealership
269500703
Unavailable
55
Hex. Forming Screw M6 X 20
207162060
$1.29
56
Flat Washer M6, Stainless
234062600
$0.77
57
Hex. Elastic Stop Nut M6
232561600
$1.15
58
Hex. Forming Screw M6 X 20
207162060
$1.29
59
Loctite 243, 10 ml
293800060
$21.49
60
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
61
Stainless Flat Washer M6
234061600
$0.33
62
Hex. Elastic Stop Nut M6
232561600
$1.15
63
BLACK SNAP CAP - Call your local BRP dealership
414436900
Unavailable
64
HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership
211000022
Unavailable
65
Stainless Flat Washer M6
234061600
$0.33
66
Hex. Elastic Stop Nut M6
232561600
$1.15
67
FRONT ARM - Call your local BRP dealership
269500704
Unavailable
68
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
69
Loctite 243, 10 ml
293800060
$21.49
70
REAR ARM - Call your local BRP dealership
269500705
Unavailable
71
Hex. Screw M6 X 100
230060060
$7.41
72
Loctite 243, 10 ml
293800060
$21.49
73
Sleeve
269500706
$4.65
