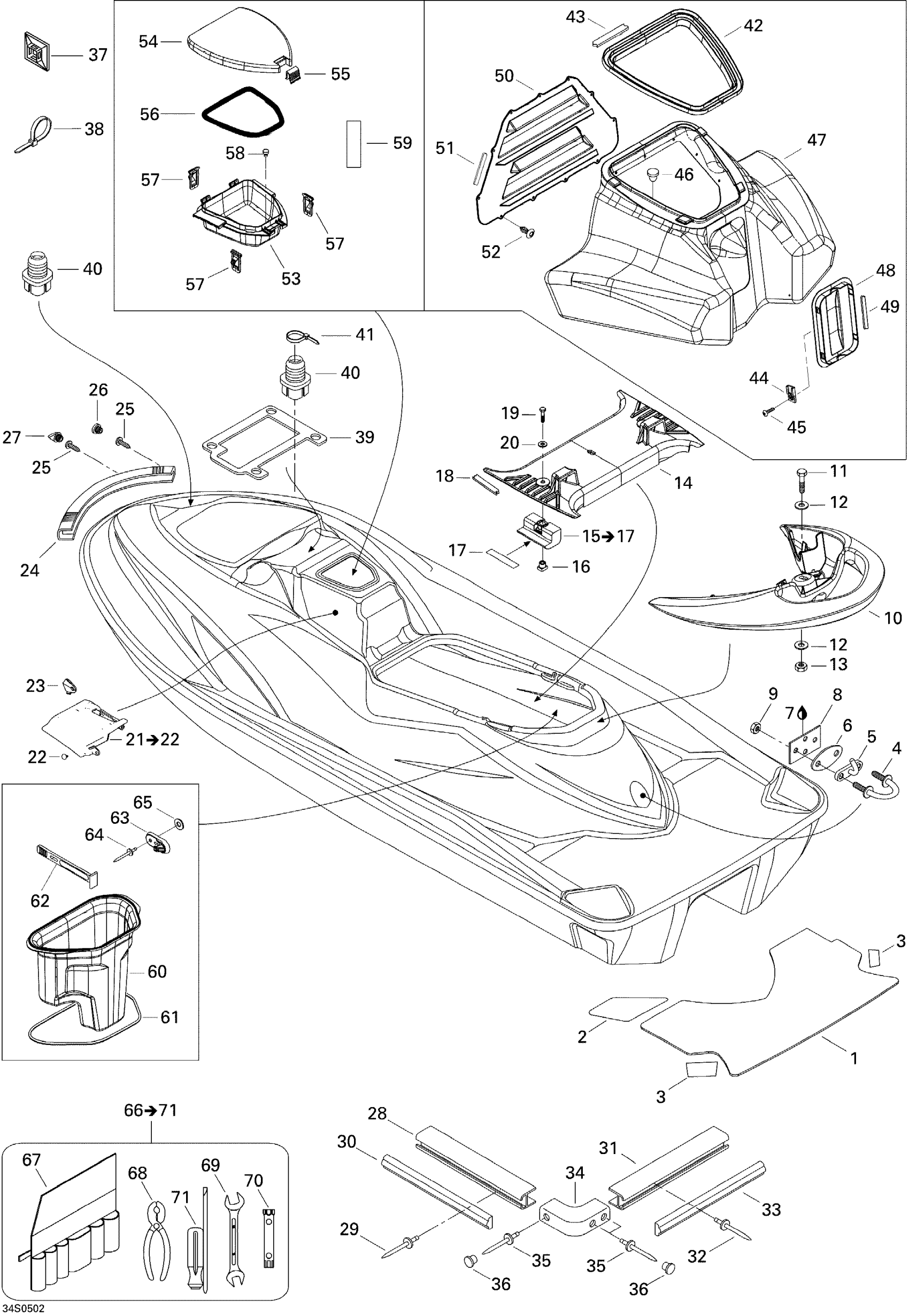

Sea-doo GTI, 2005 09- Body Diagram
#
1
Rear Carpet | STD
291002152
Unavailable
2
RH Anti-Skid | STD
291001665
Unavailable
2
LH Anti-Skid | STD
291001666
Unavailable
3
Anti-skid, Black
291001919
Unavailable
4
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
5
Hook | Package LTD
291002351
$69.99
6
Black, Finition Plate
291001386
$10.99
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
9
Hex. Elastic Nut M8
232581600
$1.48
10
GRAB HANDLE - Call your local BRP dealership
269000812
Unavailable
11
Hex. Screw M8 X 45
207084560
$3.38
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Hex. Elastic Nut M8
232581600
$1.48
14
Upper Bridge
291001854
Unavailable
15
Link Bridge Ass'y
291001931
$26.99
16
Square Nut M8
211100033
$17.99
17
Pad
291001932
$10.99
18
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
19
HEX. SCREW M8 X 40, SCOTCH GRIP - Call your local BRP dealership
207384060
Unavailable
20
Flat Washer 8 mm, Stainless
234082600
$2.43
21
RH Grill Ass’Y | Includes 25 to 26
291001649
Unavailable
21
LH GRILL ASSY - Call your local BRP dealership | Includes 25 to 26
291001650
Unavailable
22
Black Dart
293730010
$0.99
23
Spacer | STD
291001730
Unavailable
24
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
25
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
26
Bumper Plug, Black
291001519
$5.49
27
Bumper Plug, Black
291001040
$7.39
28
Black, Side Bumper
204050270
$179.99
29
Pop Rivet 3/16"
293150005
$0.52
30
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
31
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
32
Pop Rivet 3/16"
293150005
$0.52
33
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
34
Bumper Corner
291002244
$48.99
35
Pop Rivet 3/16"
293150013
$1.37
36
Bumper Plug, Black
291000339
$2.99
37
Tie-Rap Mount
293750025
$1.25
38
Tie-Rap 180 mm
414115200
$0.11
38
Tie Wrap 368 mm
293750008
$1.04
39
GASKET - Call your local BRP dealership
293250171
Unavailable
40
GROMMET - Call your local BRP dealership
293720042
Unavailable
41
Tie-Rap 180 mm
414115200
$0.11
42
Cover Trim
269501129
Unavailable
43
Was 293200017 Neoprene Seal
219704365
$149.99
44
Clip
270000141
$11.49
45
Flange Screw K40 X 20
241642060
$1.15
46
Black Plug
291000279
$7.69
47
Not Available As Spare Part - Friction Washer
Unavailable
48
Front Door
291001744
Unavailable
49
Gasket, Neoprene 2000Mm Long
219704476
$15.36
50
Rear Door
291001631
Unavailable
51
Gasket, Neoprene 2000Mm Long
219704476
$15.36
52
Tuflok Plastic Rivet
293150230
$1.47
53
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
54
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
55
LATCH - Call your local BRP dealership
269500719
Unavailable
56
GASKET - Call your local BRP dealership
293250100
Unavailable
57
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
58
Rubber Bumper
293830005
$8.09
59
Was 293250099 Gasket
219704377
$7.20
60
Rear Tray
269500990
Unavailable
61
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
62
Strap
269502417
$17.69
63
Hook
269500521
$9.09
64
Pop Rivet 3/16"
293150039
$1.49
65
Flat Washer 5 mm, Stainless
234052600
$0.77
66
Owner Tool Kit Ass'y | Includes 68 to 72
294000680
Unavailable
67
Not Available As Spare Part - Friction Washer
Unavailable
68
Not Available As Spare Part - Friction Washer
Unavailable
69
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
70
Not Available As Spare Part - Friction Washer
Unavailable
71
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
