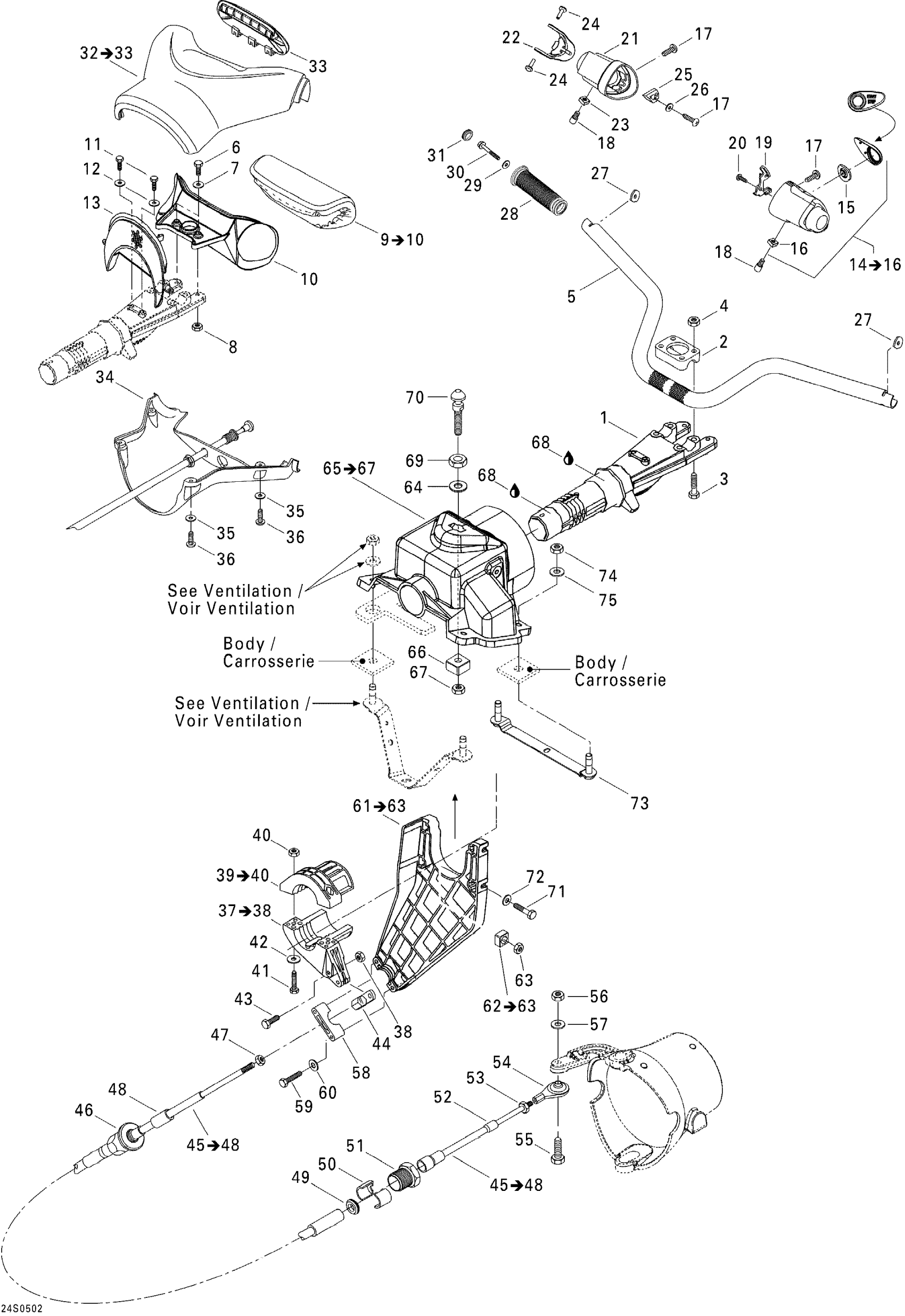

Sea-doo GTI, 2005 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8
232581600
$1.48
5
HANDLE BAR - Call your local BRP dealership
277001450
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Bright Yellow, Handlebar Pad | Includes 9 to 10
277001366
Unavailable
10
Handle Bar Pad Support
277000687
Unavailable
11
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
PLATE - Call your local BRP dealership
277000549
Unavailable
14
LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16
277000869
Unavailable
15
Switch Knob
277000306
Unavailable
16
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
17
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
18
Socket Head Screw M6 X 16
250000036
$9.00
19
Retainer Plate
277000845
Unavailable
20
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
21
THROTTLE HOUSING ASS'Y - Call your local BRP dealership
277000872
Unavailable
22
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
23
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
24
PIN - Call your local BRP dealership
277000381
Unavailable
25
INSERT - Call your local BRP dealership
293450153
Unavailable
26
Flat Washer M5, Stainless
234051600
$0.77
27
Insert Grip Handle
277001863
$8.83
28
Handle Grip, Slate Grey
277001336
$19.49
29
Flat Washer M6, Stainless
234062600
$0.77
30
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
31
Black, Cap
277000203
$9.39
32
Upper Steering Cover, Black | STD, Includes 32 to 33
277001393
Unavailable
33
Steering Cover Plate | STD
277001394
Unavailable
34
LOWER STEERING COVER - Call your local BRP dealership
277000625
Unavailable
35
Flat Washer M5, Stainless
234051600
$0.77
36
Hex. Flange Screw K40 X 16
241141660
$1.48
37
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
Arm Thrust | Includes 43 to 44
277000519
Unavailable
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
Hex. Screw M6 X 25
207162560
$1.47
42
Flat Washer M6, Stainless
234062600
$0.77
43
Hex. Screw M6 X 30
211000081
$3.59
44
Ball Joint
277001180
$35.99
45
Steering Cable | Includes 38 to 42
277001580
$201.49
46
Ajustment Knob
277000782
$22.99
47
Hex. Nut 1/4"-28
211100056
$0.69
48
Terminal Wiper
277000441
$11.99
49
Rubber Washer
293830063
$1.90
50
Half Ring
277001527
$10.37
51
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
52
Terminal Wiper
277000441
$11.99
53
Hex. Nut 1/4"-28
211100056
$0.69
54
Ball Joint
277000775
$51.99
55
Hex. Screw M6 X 35
207063560
$2.22
56
Hex. Elastic Stop Nut M6
232561600
$1.15
57
Stainless Flat Washer M6
234061600
$0.33
58
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
59
Hex. Screw M6 X 50
207065060
$2.22
60
Stainless Flat Washer M6
234061600
$0.33
61
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
62
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
63
Hex. Nut M6
232061600
$1.15
64
Flat Washer 10 mm, Stainless
234002600
$2.22
65
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
66
NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61
271000598
Unavailable
67
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
68
Synthetic Grease, 400 G
293550010
Unavailable
69
Hex. Jam Nut M10
232100600
$2.22
70
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
71
Hex. Forming Screw M6 X 20
207162060
$1.29
72
Stainless Flat Washer M6
234061600
$0.33
73
Steering Support
277001000
Unavailable
74
Hex. Elastic Nut M8
232581600
$1.48
75
Stainless, Flat Washer 8 mm
234081600
$0.55
