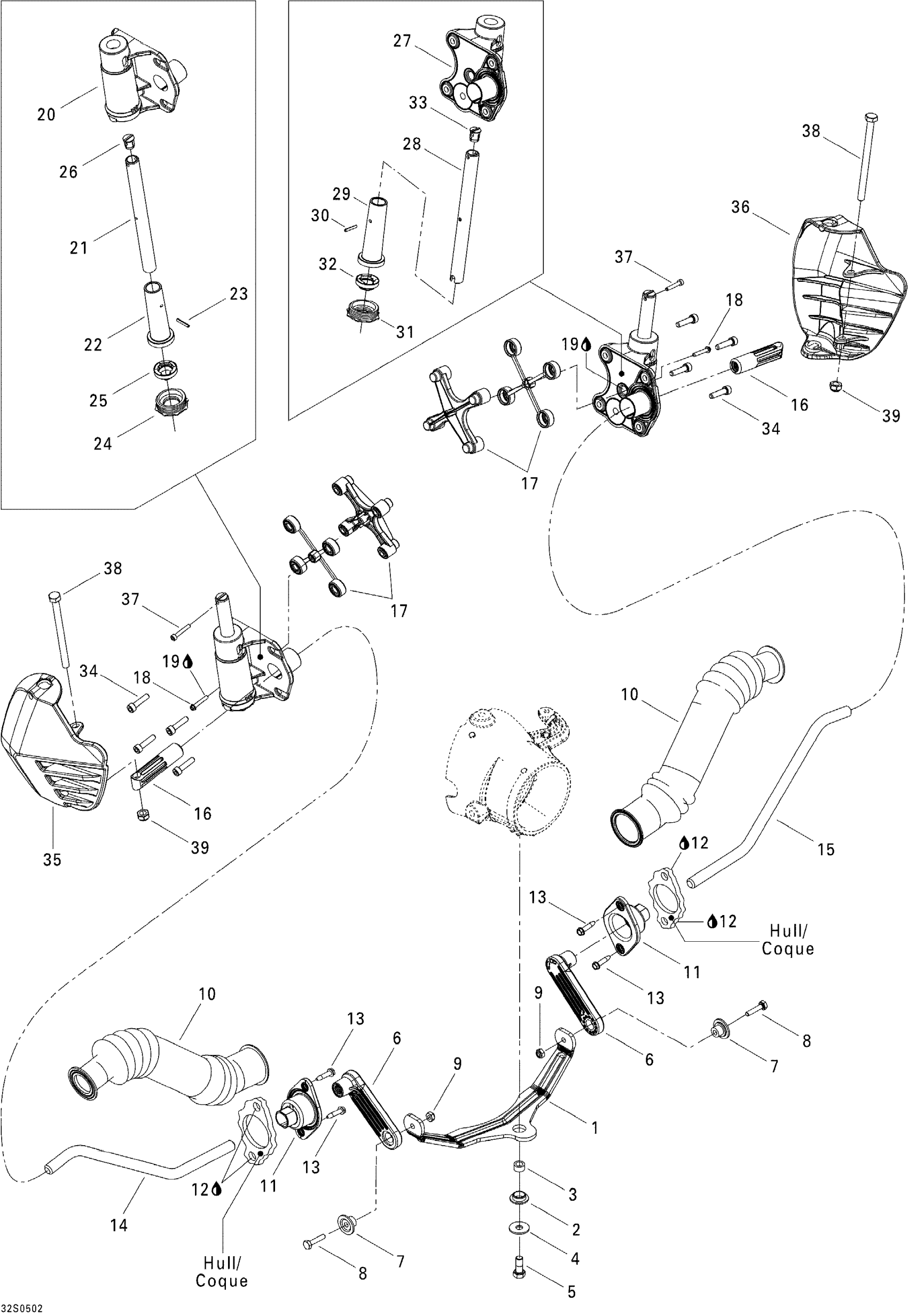

Sea-doo GTI, 2005 Off Power Assisted Steering Diagram

#

Description
Price

1

U LEVER - Call your local BRP dealership

277000979

$29.28

2

Venturi Bushing

271000321

$6.18

3

Bushing

277000980

$12.43

4

Flat Washer 8 mm, Stainless

234082600

$1.98

5

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.57

6

LEVER - Call your local BRP dealership

265000013

Unavailable

7

FLANGED BUSHING - Call your local BRP dealership

293900042

Unavailable

8

Hex. Screw M6 X 25

207162560

$1.22

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Seal Tube

277001123

$35.72

11

ROD GROMMET - Call your local BRP dealership

277001164

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$35.72

13

Hex. Screw 10-14 X 7/8”

211000023

$2.91

14

Tie Rod LH

277001019

Unavailable

15

Tie Rod RH

277001062

Unavailable

16

FITTING STABILISATOR - Call your local BRP dealership

265000014

Unavailable

17

SUPPORT PLATE ASS'Y - Call your local BRP dealership

277001177

$20.74

18

Hex. Flange Screw K40 X 25

241142560

$2.17

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

LH CYLINDER SUPPORT - Call your local BRP dealership

265000039

Unavailable

21

Pivot Rod

277001091

$44.17

22

SPACER - Call your local BRP dealership

265000048

$10.00

23

Spring Pin

250400014

$2.72

24

Threaded Cover

265000009

Unavailable

25

WEAR RING - Call your local BRP dealership

277000985

Unavailable

26

LOCKING INSERT - Call your local BRP dealership

277001185

$4.25

27

RH CYLINDER SUPPORT - Call your local BRP dealership

265000040

Unavailable

28

Pivot Rod

277001091

$44.17

29

SPACER - Call your local BRP dealership

265000048

$10.00

30

Spring Pin

250400014

$2.72

31

Threaded Cover

265000009

Unavailable

32

WEAR RING - Call your local BRP dealership

277000985

Unavailable

33

LOCKING INSERT - Call your local BRP dealership

277001185

$4.25

34

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

35

LH SIDE VANE - Call your local BRP dealership

277001486

Unavailable

36

RH Side Vane

277001487

$40.27

37

Socket Head Screw M4 X 25

205042560

$1.85

38

HEX. SCREW M8 X 110 - Call your local BRP dealership

250000077

Unavailable

39

Hex. Elastic Nut M8

232581600

$1.25
