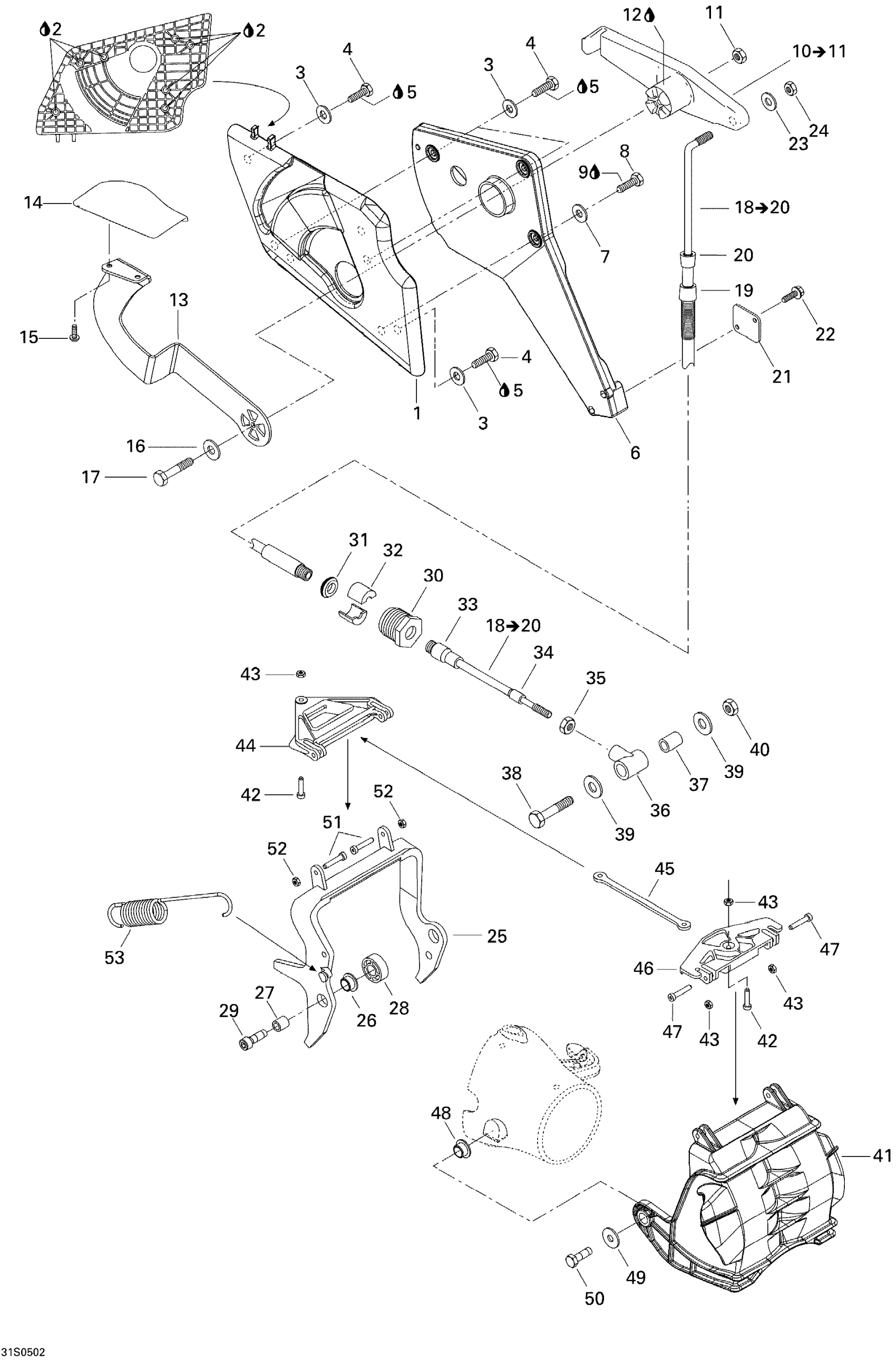

Sea-doo GTI, 2005 Reverse Diagram

#

Description
Price

1

Handle Housing

271000984

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

$35.72

3

Flat Washer M6, Stainless

234062600

$0.64

4

Hex. Cap Screw M6 X 12

207161260

$1.21

5

Loctite 243, 10 ml

293800060

$20.77

6

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.64

8

Hex. Screw M6 X 16

207161660

$1.22

9

Loctite 243, 10 ml

293800060

$20.77

10

Lever Ass.

271000986

$33.12

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

Synthetic Grease, 400 G

293550010

Unavailable

13

HANDLE LEVER - Call your local BRP dealership | RXP

271000982

Unavailable

14

REVERSE HANDLE - Call your local BRP dealership

271000983

Unavailable

15

Phillips Screw M5 x 12

250000319

$1.03

16

Stainless Flat Washer M6

234061600

$0.25

17

Hex. Screw M6 X 16

207161660

$1.22

18

Reverse Cable

268000017

$123.47

19

Boot, Large

277000473

Unavailable

20

Boot, Small

277000466

Unavailable

21

BRACKET - Call your local BRP dealership

277001058

Unavailable

22

Hex. Flange Screw M5 X 30

207153060

$1.53

23

Flat Washer M5, Stainless

234051600

$0.64

24

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

25

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

26

Venturi Bushing

271000321

$6.18

27

Spacer

271001039

$11.78

28

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

29

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

30

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

31

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

32

Half Ring

277000055

$6.19

33

Boot, Large

277000473

Unavailable

34

Boot, Small

277000466

Unavailable

35

Hex. Nut

212100005

$0.90

36

Joint

277001204

$14.27

37

Spacer

271001020

$9.23

38

Hex. Screw M6 X 35

207063560

$1.85

39

Flat Washer M6, Stainless

234062600

$0.64

40

Hex. Elastic Stop Nut M6

232561600

$0.92

41

Gate Reverse

271001317

Unavailable

42

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

43

Hex. Elastic Nut M5 | X

232551600

$0.91

44

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

45

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

46

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

47

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

48

Spacer

277001066

Unavailable

49

Flat Washer 8 mm, Stainless

234082600

$1.98

50

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

51

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

52

Hex. Elastic Nut M5 | X

232551600

$0.91

53

Spring

271001328

$12.57
