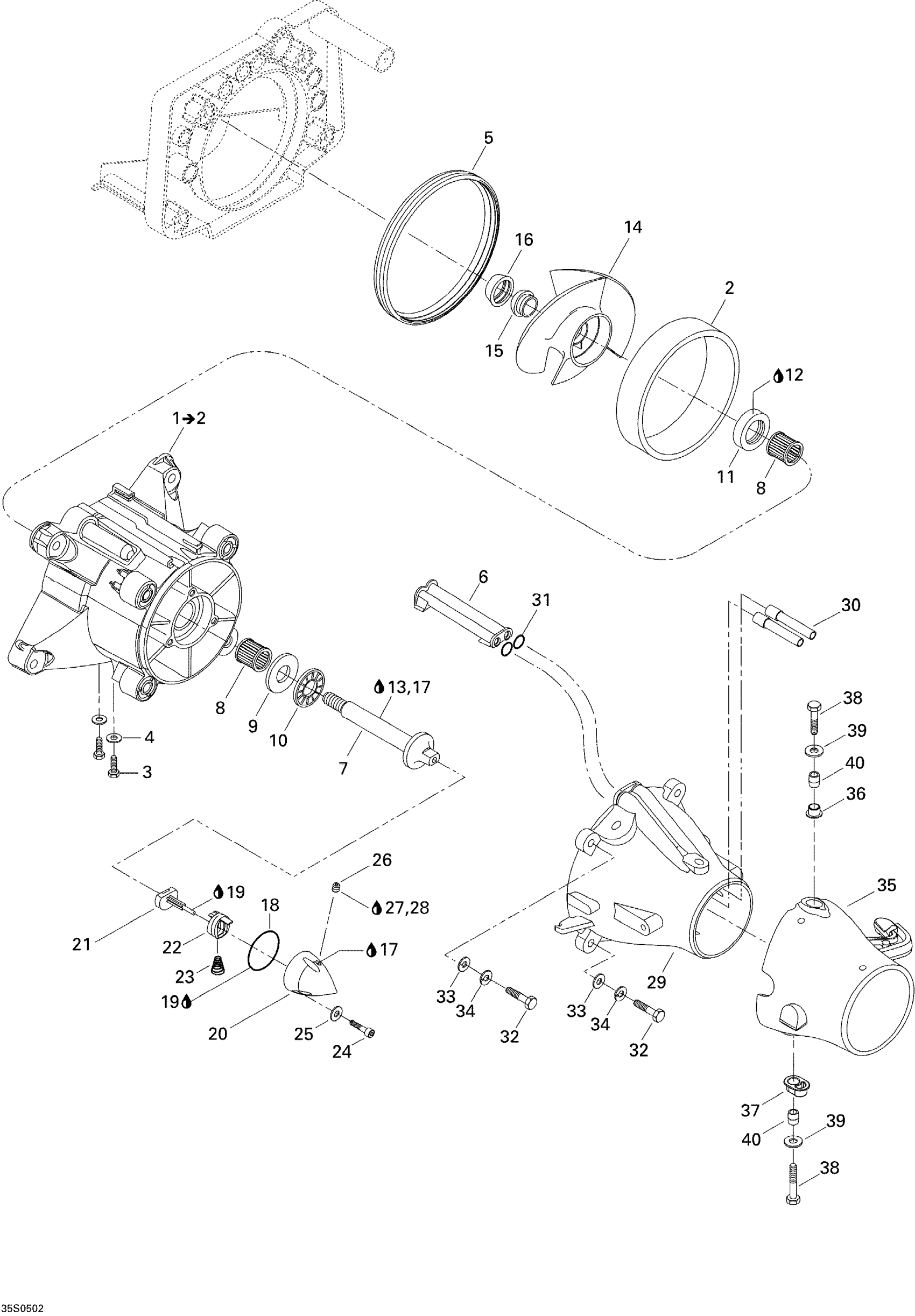

Sea-doo GTI, 2005 05- Pump Diagram
#
Description
Price
1
HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5
271001381
Unavailable
2
Wear Ring
271000653
$58.49
3
Hex. Plastite Screw #10 X 3/8"
250000040
$1.05
4
Flat Washer M5, Stainless
234051600
$0.77
5
Neoprene Seal
293200087
$12.63
6
Water Outlet
271000785
$3.80
7
Impeller Shaft
271000965
$116.49
8
Needle Bearing
293350017
$27.99
9
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
10
Thrust-Bearing
293350022
$45.99
11
Oil Seal
267000094
$22.49
12
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
13
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
14
Impeller Ass'y This part replaces 271001297.
267000199
$391.99
15
Impeller Boot
271000516
$9.59
16
Impeller Ring
271000517
$9.59
17
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
$16.99
18
O-Ring
293300011
$8.64
19
Synthetic Grease, 400 G
293550010
Unavailable
20
IMPELLER COVER - Call your local BRP dealership
271001250
Unavailable
21
PUSHER ASS?Y - Call your local BRP dealership
271001124
Unavailable
22
SLIDER - Call your local BRP dealership
271001107
Unavailable
23
SPRING - Call your local BRP dealership
271001108
Unavailable
24
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
25
Stainless Flat Washer M6
234061600
$0.33
26
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
27
Was 293800013 Loctite 56765
219704454
$65.99
28
Was 293800041 Loctite Primer 7649
219704458
$39.99
29
VENTURI, BLACK - Call your local BRP dealership
271001464
Unavailable
30
Siphon Tube
271001133
$10.99
31
O-Ring
293300013
$8.18
32
Hex. Screw M8 X 50, Scotch Grip
207285060
$2.11
33
Stainless, Flat Washer 8 mm
234081600
$0.55
34
Lock Washer 8 mm, Stainless
234181601
$0.55
35
STEERING NOZZLE, BLACK - Call your local BRP dealership
271001468
Unavailable
36
Venturi Bushing
293900001
$7.62
37
Plastic Bushing
293900010
$9.59
38
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
39
Flat Washer M8.5 x 18
293050001
$3.07
40
Sleeve
271001816
$14.99
