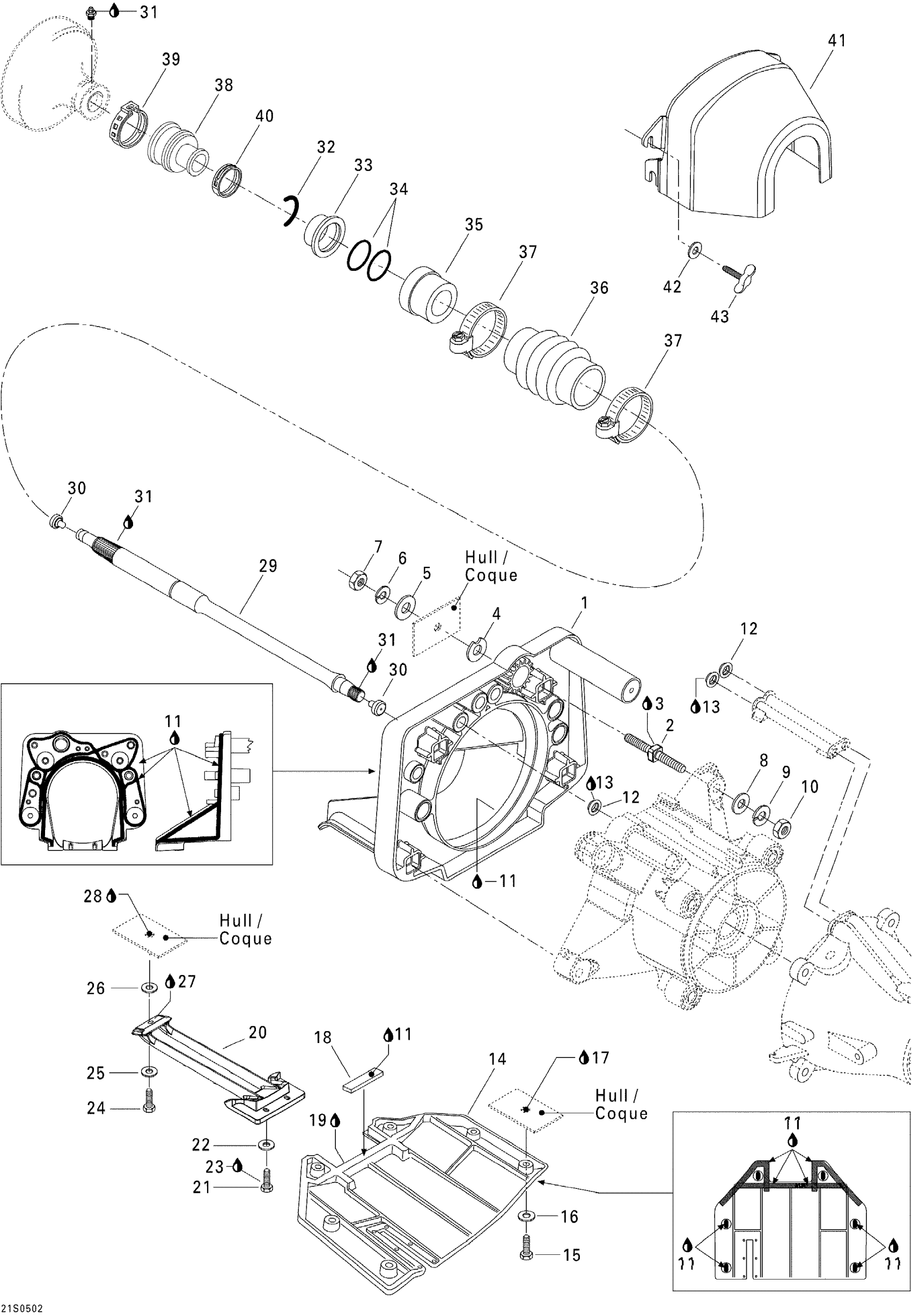

Sea-doo GTI, 2005 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership | STD
271001225
Unavailable
2
Square Stud
250300022
$20.99
3
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
4
Shim 0.3 mm
272000053
$11.49
5
Flat Washer 10 mm, Stainless
234002600
$2.22
6
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
7
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
8
Flat Washer 10 mm, Stainless
234002600
$2.22
9
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
10
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
11
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
12
Watertight Seal
293250084
$7.49
13
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
14
Riding Plate, Black | STD
271001470
Unavailable
15
Hex. Screw M8 X 40, Scotch Grip
250000230
$2.53
16
Stainless, Flat Washer 8 mm
234081600
$0.55
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
Neoprene Seal (1PAC=3M)
219704364
$27.49
19
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
20
Pump Grate, Black
271001455
Unavailable
21
Hex. Screw M6 X 16
207161660
$1.59
22
Stainless Flat Washer M6
234061600
$0.33
23
Loctite 271, 10 ml
293800005
$26.99
24
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
25
Stainless, Flat Washer 8 mm
234081600
$0.55
26
Flat Washer 10 mm, Stainless
234001600
$1.15
27
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
Drive Shaft
272000096
Unavailable
30
DRIVE SHAFT PLUG - Call your local BRP dealership
272000019
Unavailable
31
Synthetic Grease, 400 G
293550010
Unavailable
32
C-CLIP - Call your local BRP dealership
272000135
Unavailable
33
Support Ring
272000064
$66.49
34
O-Ring
293300032
$6.03
35
Carbon Ring
272000770
$45.99
36
BELLOWS - Call your local BRP dealership
272000184
$27.99
37
Norma Clamp
293650075
$11.06
38
RUBBER BOOT - Call your local BRP dealership
272000001
Unavailable
39
OETIKER CLAMP - Call your local BRP dealership
293650021
Unavailable
40
OETIKER CLAMP - Call your local BRP dealership
293650067
Unavailable
41
Flywheel Guard
272000095
Unavailable
42
Flat Washer M6, Stainless
234062600
$0.77
43
Wing Screw M6 X 16
207961630
Unavailable
