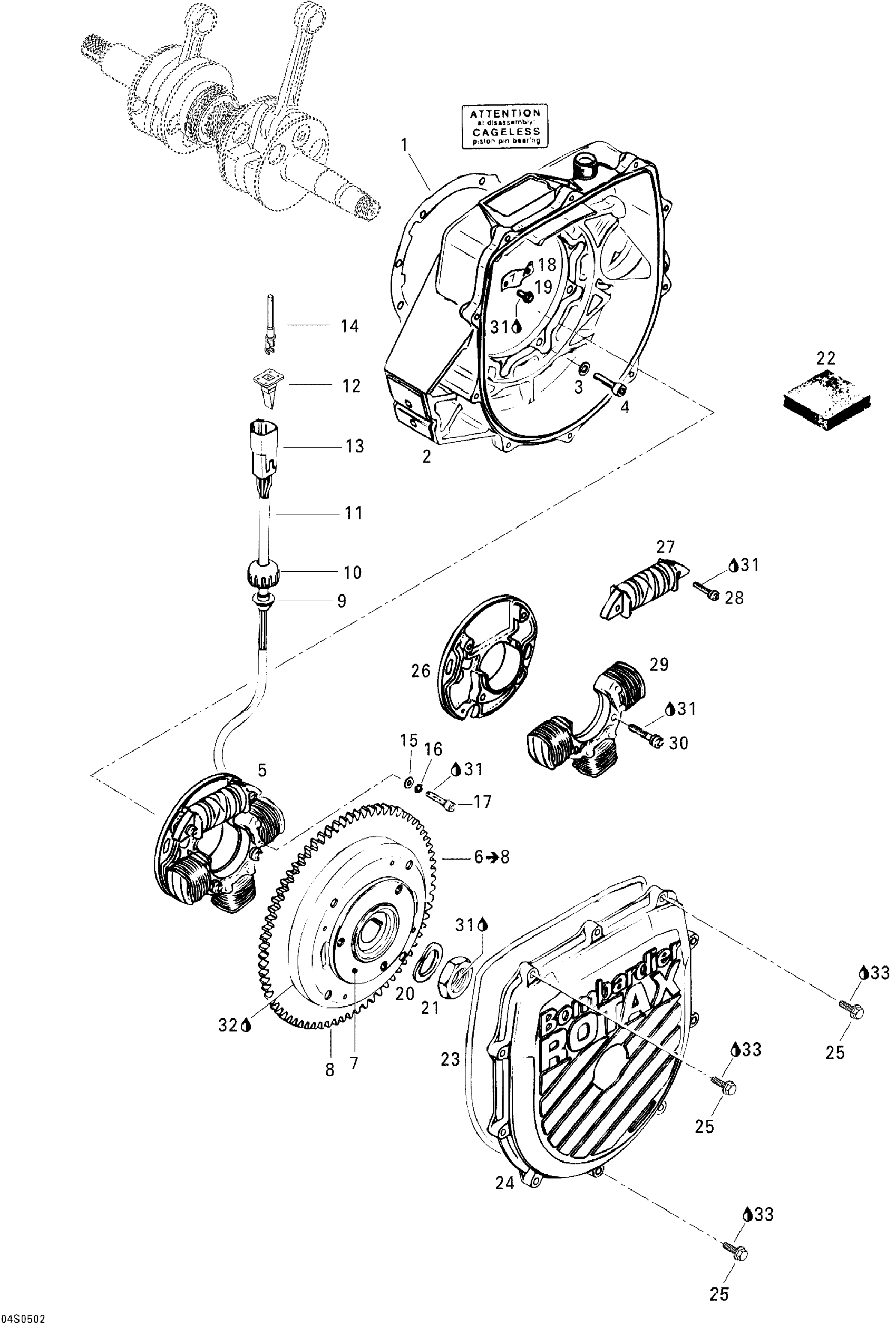

Sea-doo GTI, 2005 Magneto Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420850605

Unavailable

2

IGNITION HOUSING, BLACK - Call your local BRP dealership

420810853

$208.43

3

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

4

Socket Head Screw M6 X 25

205062544

$0.88

5

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

$369.99

6

MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership | Includes 6 to 8

420995119

Unavailable

7

FLYWHEEL - Call your local BRP dealership

420995118

Unavailable

8

STARTER GEAR, 77 TEETH - Call your local BRP dealership

420834060

$213.82

9

Grommet

293720034

Unavailable

10

Electric Wire Cap

278000100

Unavailable

11

TUBING ISOLATION, 75 MM - Call your local BRP dealership

420260931

$8.60

12

Female Wedge, 4 Circuits

278000636

$4.12

13

Female Housing, 4 Circuits

278000635

$14.02

14

Male Terminal

278000631

$4.12

15

WASHER - Call your local BRP dealership

420827800

Unavailable

16

Lock Washer

420945750

Unavailable

17

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

$1.08

18

RETAINER PLATE - Call your local BRP dealership

420853080

$9.97

19

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

$1.18

20

Lock Washer, 22 mm

420945759

$1.55

21

Hex. Nut, M22 X 1.5

420842239

$14.27

22

PROTECTION MAT - Call your local BRP dealership

420860680

Unavailable

23

O-RING - Call your local BRP dealership

420831555

Unavailable

24

IGNITION COVER, BLACK - Call your local BRP dealership

420810148

$136.89

25

TAPTITE SCREW M6 X 25 - Call your local BRP dealership

420841543

$6.12

26

ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.

420886725

$369.99

27

GENERATING COIL - Call your local BRP dealership

410915200

Unavailable

28

SCREW M5 X 22 WITH WASHER - Call your local BRP dealership

420940810

$1.48

29

Lighting Coil

410916200

Unavailable

30

SCREW M6 X 25 WITH WASHER - Call your local BRP dealership

410913900

$3.05

31

Loctite 243, 10 ml

293800060

$20.77

32

Sealant Loctite 648

219703000

$35.72

33

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
