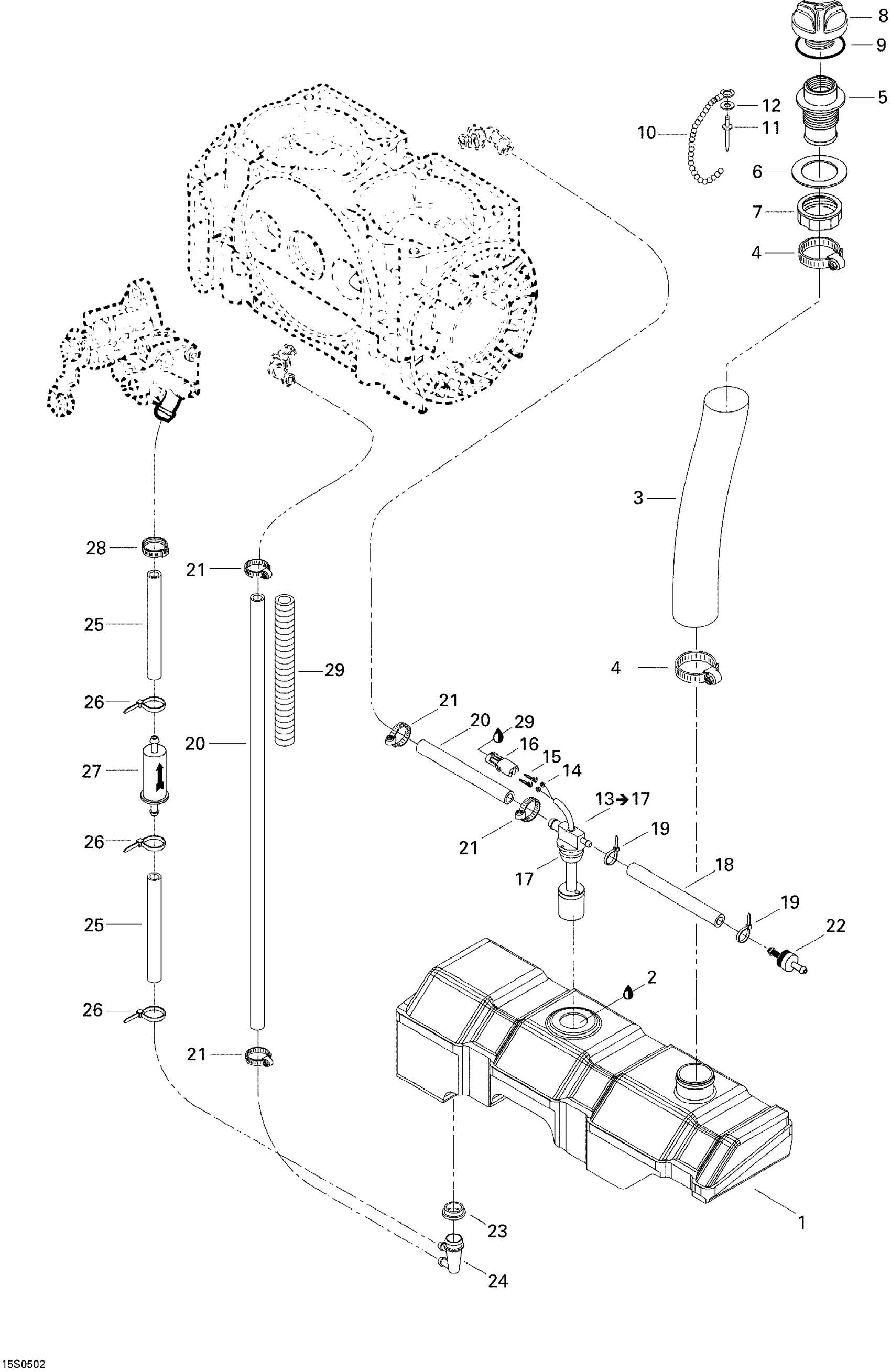

Sea-doo GTI, 2005 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

$98.99

2

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

2

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

3

Filler Hose

275000230

Unavailable

4

Tridon Clamp

293650035

$7.29

5

FILLER NECK - Call your local BRP dealership

275000242

Unavailable

6

Gasket

293250132

Unavailable

7

Nut-Neck Oil Filler

211100013

Unavailable

8

Oil Cap

275000186

Unavailable

9

O-RING - Call your local BRP dealership

293250025

Unavailable

10

Oil Cap Chain

275500015

Unavailable

11

Pop Rivet 1/8"

390407900

$1.49

12

Flat Washer M3, Stainless

234032600

$0.55

13

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

14

Wire Seal

278000218

$4.39

15

Male Terminal | XT Models

278000222

$3.19

16

Female Housing, 2 Circuits

278000217

$9.59

17

Grommet

293720008

$14.75

18

Was 275500549 Hose 1/4"

219704357

$194.99

19

Tie Wrap 142 mm

293750002

$1.25

20

Was 275500008 Hose 12 mm

219704356

$20.49

21

Norma Clamp

293650084

$4.12

22

Check Valve

275500398

$10.99

23

Grommet

293720008

$14.75

24

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

25

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

27

OIL FILTER - Call your local BRP dealership

275000262

Unavailable

28

Oetiker Clamp

293650042

$3.09

29

Tubing 16 Mm 1000Mm Long

219704408

$7.49
