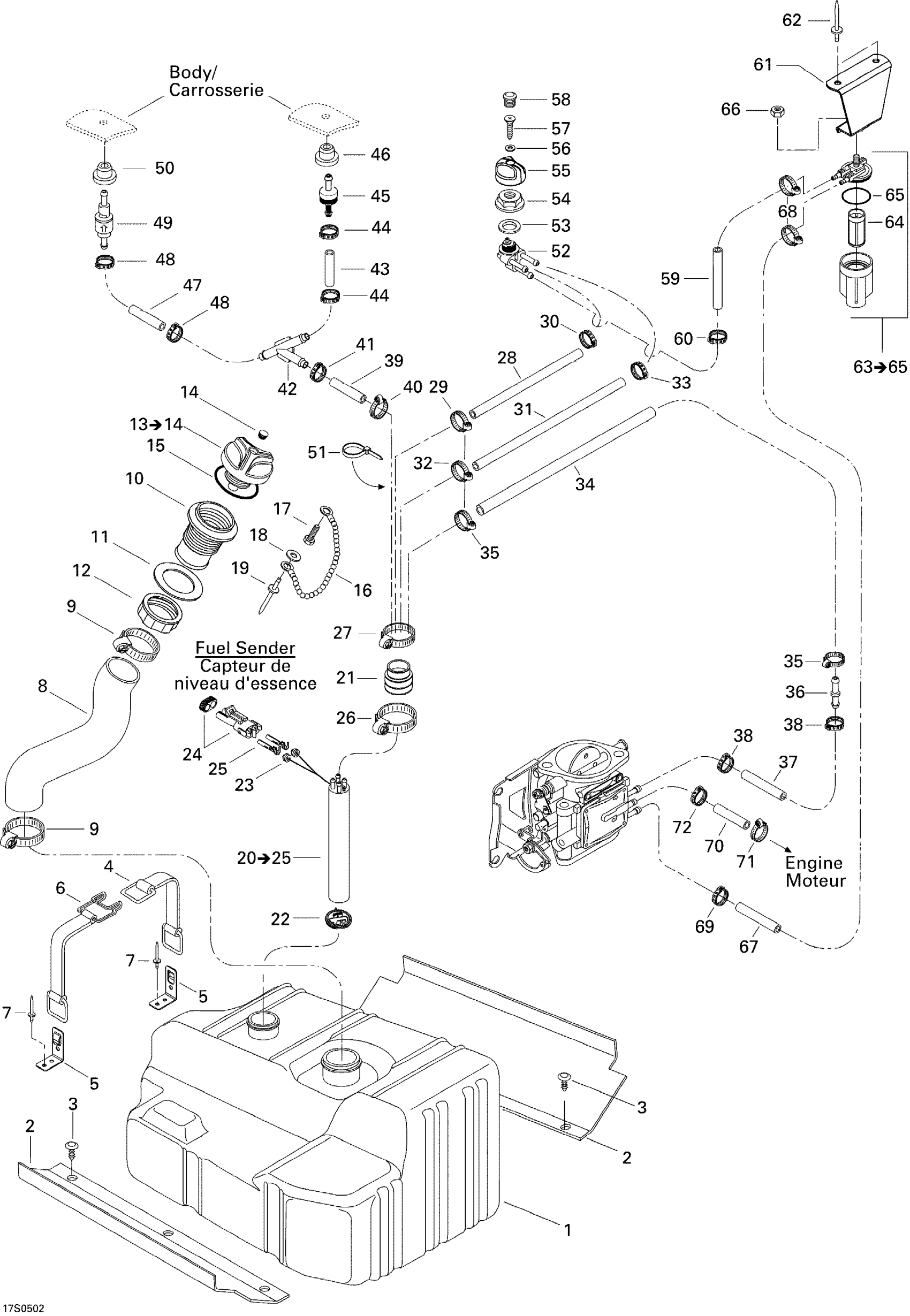

Sea-doo GTI, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500291

Unavailable

2

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

3

Black, Dart

293730006

$1.49

4

Fuel Tank Strap

293850036

$18.99

5

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

6

Fuel Tank Strap

293850094

$22.49

7

Avdel Rivet 3/16"

293150037

$1.49

8

Filler Neck Hose

275500646

Unavailable

9

Tridon Clamp

293650023

$13.99

10

Filler Neck, Fuel

275500231

$14.75

11

Gasket

293250029

$15.49

12

Filler Neck Nut, Fuel

211100012

$14.49

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$28.99

14

Black, Snap Cap

293000034

$9.59

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$19.99

17

Screw K40 X 10

241140060

$1.49

18

Flat Washer M3, Stainless

234032600

$1.49

19

Pop Rivet 1/8"

390407900

$1.49

20

BAFFLE - Call your local BRP dealership | Includes 20 to 25

275500470

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$4.49

24

Male Connector, 2 Circuits

278000220

$15.99

25

Female Terminal

278000223

$3.29

26

Tridon Clamp

293650023

$13.99

27

Tridon Clamp

293650035

$7.49

28

Was 275500549 Hose 1/4"

219704357

$199.99

29

Tridon Gear Clamp

293650170

$2.00

30

Oetiker Clamp

293650042

$3.19

31

Was 275500549 Hose 1/4"

219704357

$199.99

32

Tridon Gear Clamp

293650170

$2.00

33

Oetiker Clamp

293650042

$3.19

34

Was 275500549 Hose 1/4"

219704357

$199.99

35

Tridon Gear Clamp

293650170

$2.00

36

Straight Fitting

293710039

$7.59

37

Was 275500549 Hose 1/4"

219704357

$199.99

38

Oetiker Gear Clamp

293650025

$3.19

39

Was 275500549 Hose 1/4"

219704357

$199.99

40

Tridon Gear Clamp

293650170

$2.00

41

Oetiker Gear Clamp

293650025

$3.19

42

Y-Fitting

293710059

$9.89

43

Was 275500549 Hose 1/4"

219704357

$199.99

44

Oetiker Gear Clamp

293650025

$3.19

45

Check Valve

275500398

$11.49

46

Grommet

293720029

$1.69

47

Was 275500549 Hose 1/4"

219704357

$199.99

48

Oetiker Gear Clamp

293650025

$3.19

49

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

50

Grommet

293720029

$1.69

51

Tie-Rap 180 mm

414115200

$1.49

52

Fuel Valve

275500098

$43.99

53

GASKET - Call your local BRP dealership

293250004

Unavailable

54

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

55

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

56

Flat Washer 4 mm

234040600

$1.49

57

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

58

Black, Cap

275500241

$3.59

59

Was 275500549 Hose 1/4"

219704357

$199.99

60

Oetiker Clamp

293650042

$3.19

61

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

62

Pop Rivet 3/16"

293150043

$2.09

63

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

64

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

65

O-Ring

275500090

$8.79

66

Hex. Elastic Stop Nut M6

232561600

$1.49

67

Was 275500549 Hose 1/4"

219704357

$199.99

68

Tridon Gear Clamp

293650170

$2.00

69

Oetiker Gear Clamp

293650025

$3.19

70

Was 275500549 Hose 1/4"

219704357

$199.99

71

Tridon Gear Clamp

293650170

$2.00

72

Oetiker Gear Clamp

293650025

$3.19
