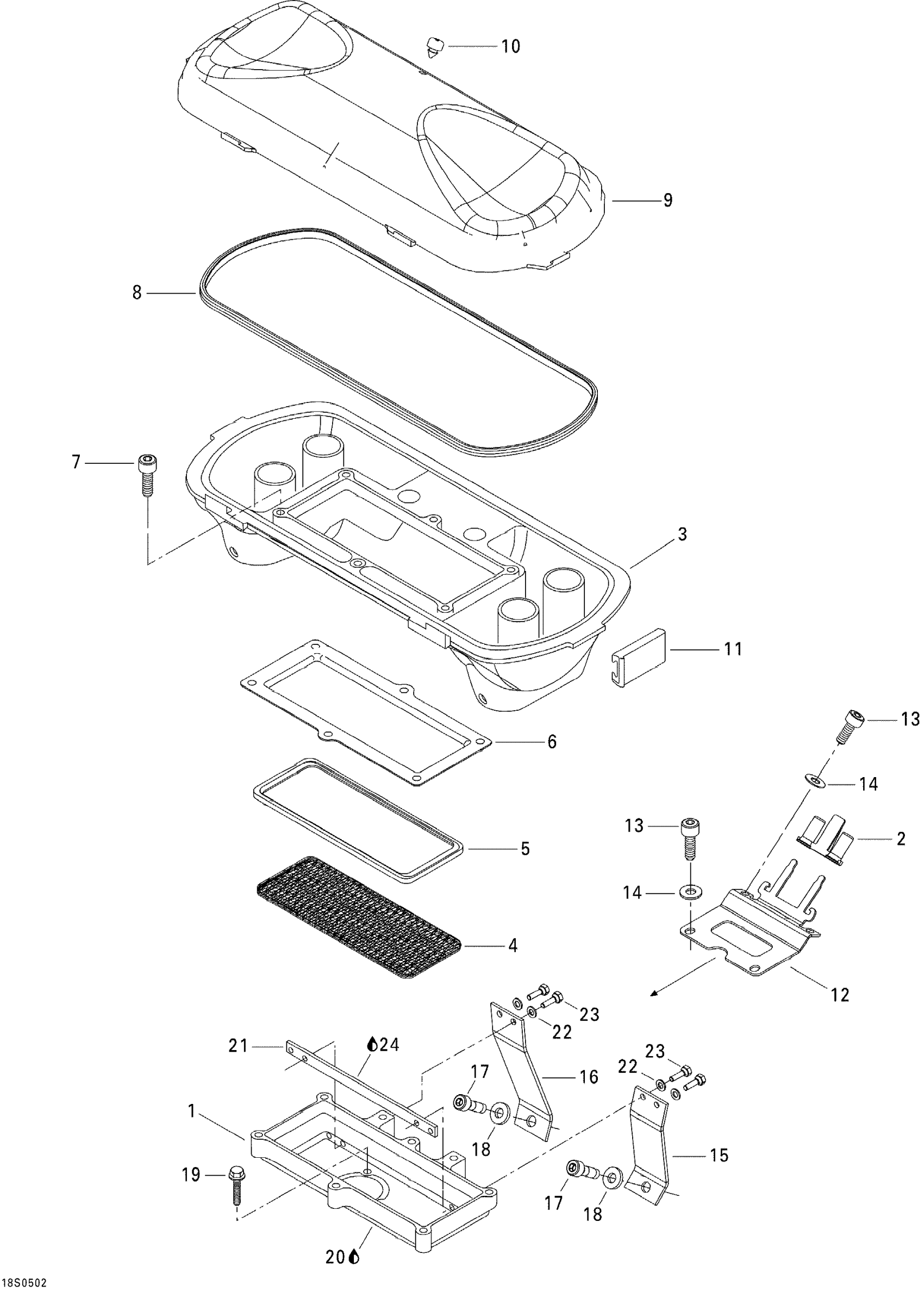

Sea-doo GTI, 2005 02- Air Intake Diagram
#
Description
Price
1
Arrest Housing, Black
273000225
Unavailable
2
INSULATOR - Call your local BRP dealership
278000213
Unavailable
3
AIR SILENCER BASE - Call your local BRP dealership
273000103
Unavailable
4
FLAME ARRESTER - Call your local BRP dealership
273000117
Unavailable
5
ISOLATOR - Call your local BRP dealership
273000020
Unavailable
6
HOLDER PLATE - Call your local BRP dealership
273000059
Unavailable
7
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
8
GASKET - Call your local BRP dealership
293250023
Unavailable
9
AIR SILENCER COVER - Call your local BRP dealership
273000115
Unavailable
10
Rubber Bumper
293830005
$8.09
11
Retainer Clip
273000006
Unavailable
12
ARRESTER SUPPORT - Call your local BRP dealership
270000561
Unavailable
13
Socket Head Screw M6 X 12, Scotch Grip
205561260
$1.58
14
Stainless Flat Washer M6
234061600
$0.33
15
FLAME ARRESTER SUPPORT PTO - Call your local BRP dealership
270000508
Unavailable
16
Flame Arrester Support MAG
270000507
Unavailable
17
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
18
Flat Washer M8.5 x 18
293050001
$3.07
19
Flanged Hex. Screw M6 X 25, Scotch
207562560
$0.78
20
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
21
Threaded Plate
270000637
Unavailable
22
Flat Washer M5, Stainless
234051600
$0.77
23
Hex. Screw M5 X 16, Scotch Grip
207351660
$0.83
24
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
