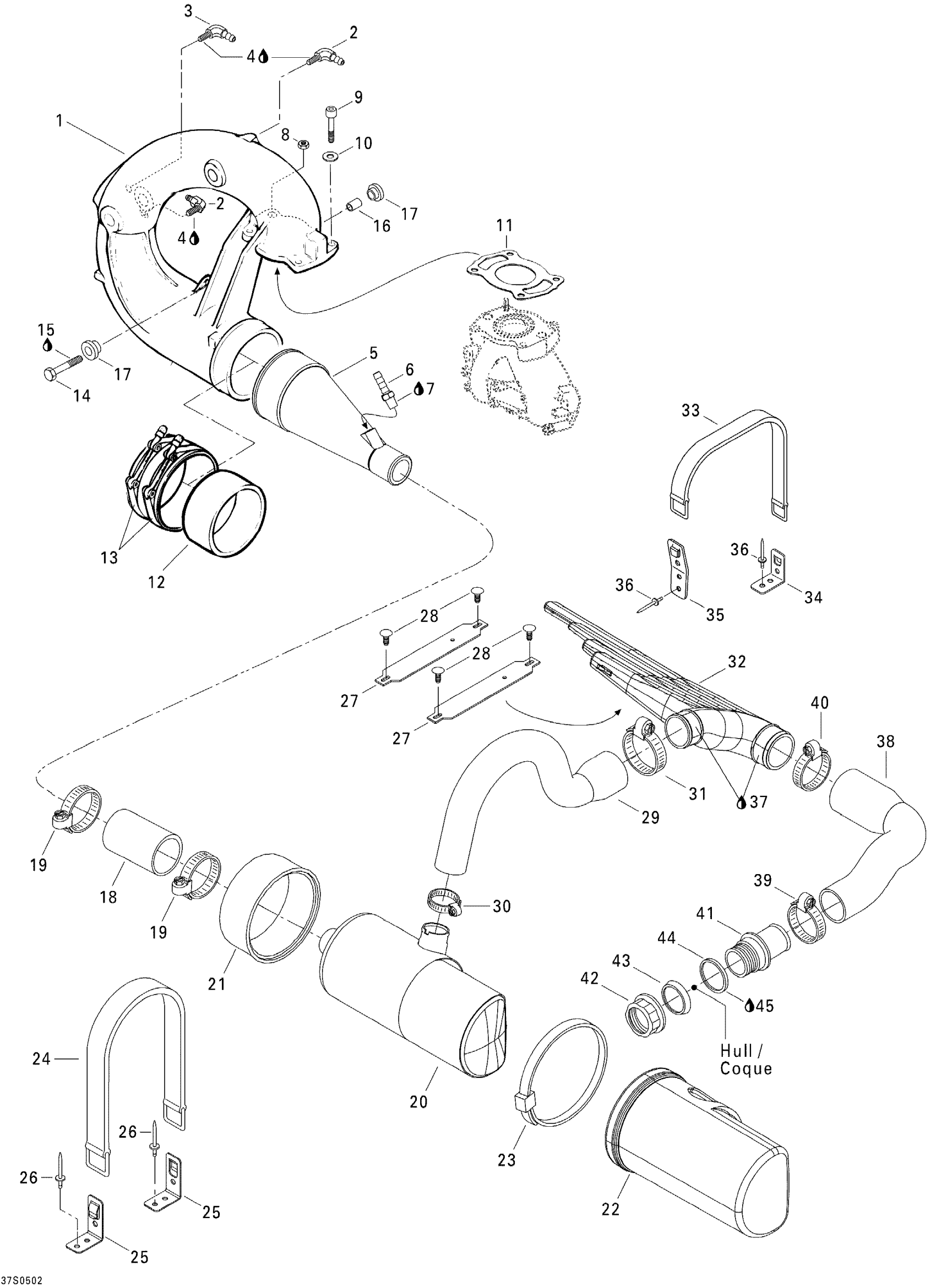

Sea-doo GTI, 2005 01- Exhaust System Diagram
#
1
Tuned Pipe
274001091
Unavailable
2
Elbow Fitting 90°
293710018
Unavailable
3
Elbow Fitting 90° | Without Catalyst
293700023
$20.99
4
Was 293800013 Loctite 56765
219704454
$65.99
5
EXHAUST CONE - Call your local BRP dealership
274001093
Unavailable
6
Male Connector
293710037
$10.49
7
Was 293800013 Loctite 56765
219704454
$65.99
8
Hex. Flange Nut M10
233101600
$5.29
9
SOCKET HEAD SCREW M10 X 30 - Call your local BRP dealership
205503060
Unavailable
10
Flat Washer
211200051
$1.68
11
GASKET - Call your local BRP dealership
420950255
Unavailable
12
Sealing Ring
274000074
Unavailable
13
NORMA CLAMP - Call your local BRP dealership
293650068
Unavailable
14
Hex. Screw M8 X 40
207084060
$2.22
15
Loctite 243, 10 ml
293800060
$21.49
16
Bushing
274000114
$8.85
17
Rubber Bushing
293830031
Unavailable
18
EXHAUST HOSE - Call your local BRP dealership
274000032
Unavailable
19
Tridon Clamp
293650023
$13.49
20
Muffler
274000788
Unavailable
21
Front Cover Muffler
274000803
Unavailable
22
Rear Cover Muffler
274000806
Unavailable
23
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
24
Fuel Tank Strap
293850036
$18.99
25
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
26
Avdel Rivet 3/16"
293150037
$0.56
27
Rubber Pad
293830089
Unavailable
28
Black, Dart
293730011
$0.99
29
Exhaust Hose
274000873
Unavailable
30
Tridon Clamp
293650023
$13.49
31
Tridon Clamp
293650179
$11.49
32
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
33
Fuel Tank Strap
293850036
$18.99
34
STRAP CLIP - Call your local BRP dealership
293850075
Unavailable
35
Strap Clip
293850030
$11.12
36
Avdel Rivet 3/16"
293150037
$0.56
37
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
38
Exhaust Hose
274001165
Unavailable
39
Tridon Clamp
293650064
$8.29
40
Tridon Clamp
204000079
$9.99
41
Exhaust Hose, Outlet
274001391
$29.49
42
Nut 72 mm
274000224
$16.34
43
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
44
GASKET - Call your local BRP dealership
293250041
Unavailable
45
Silicone Sealant 51388, 300 ml
296000309
$36.99
