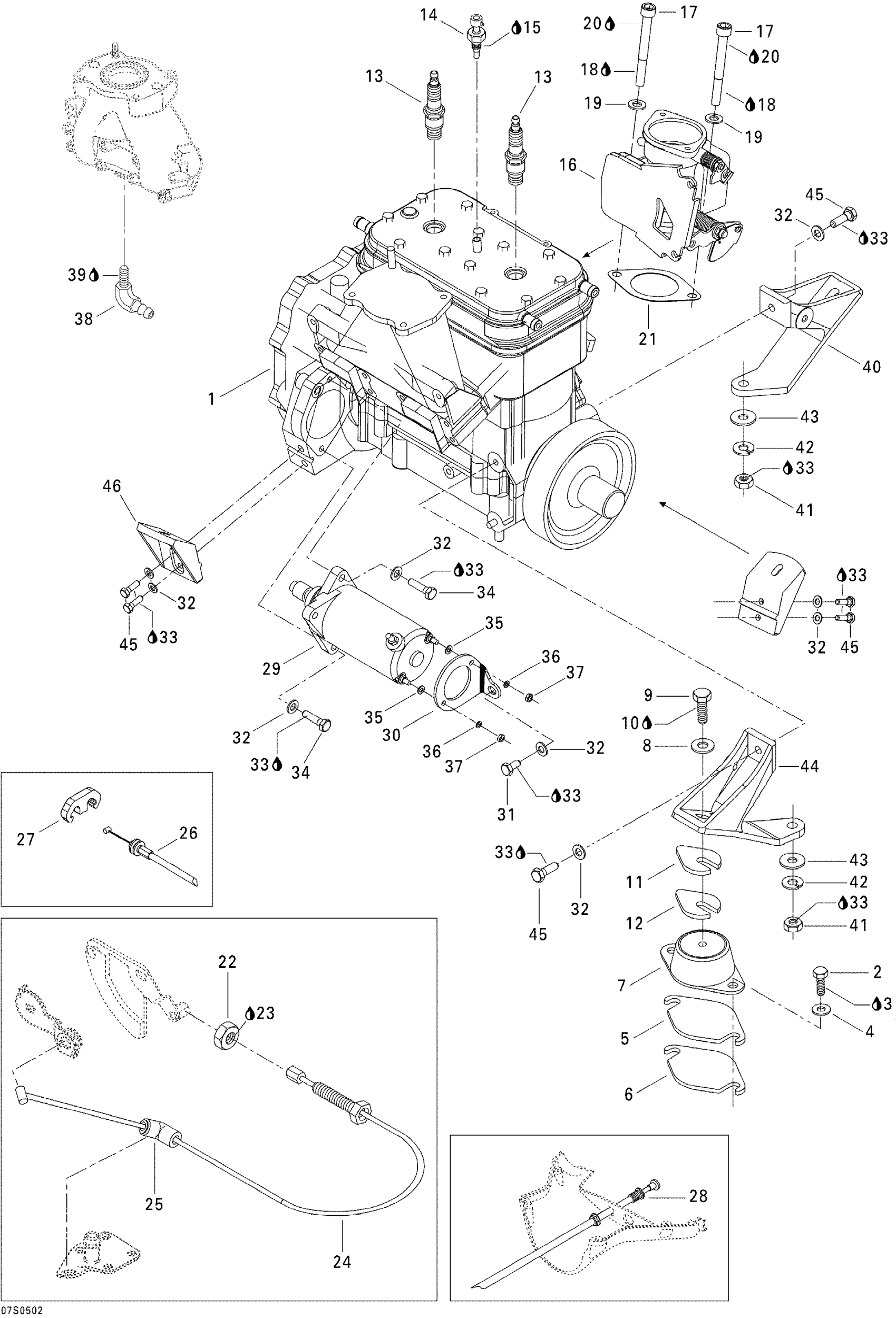

Sea-doo GTI, 2005 01- Engine Diagram
#
1
Rotax Engine 717
270000650
Unavailable
2
Hex. Screw M8 X 30
207183060
$1.58
3
Loctite 243, 10 ml
293800060
$21.49
4
Stainless, Flat Washer 8 mm
234081600
$0.55
5
Shim 0.4 mm
270000006
Unavailable
6
Shim 1.3 mm
270000007
Unavailable
7
Rubber Mount
270000425
$71.99
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
12
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
13
NGK Spark Plug BR8ES This part replaces 278000609.
219703119
$4.23
14
Temperature Sensor
278000965
$73.99
15
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
16
Carburetor BN40I-38-61
270500447
Unavailable
17
SOCKET HEAD SCREW M8 X 80 - Call your local BRP dealership
205088060
Unavailable
18
Loctite 243, 10 ml
293800060
$21.49
19
Stainless, Flat Washer 8 mm
234081600
$0.55
20
Synthetic Grease, 400 G
293550010
Unavailable
21
Gasket
293250153
Unavailable
22
Hex. Nut M6
232160600
$1.15
23
Loctite 243, 10 ml
293800060
$21.49
24
INJECTION CABLE - Call your local BRP dealership
270000540
Unavailable
25
CABLE GUIDE - Call your local BRP dealership
270000187
Unavailable
26
Throttle Cable
277001064
Unavailable
27
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
28
CHOKE CABLE - Call your local BRP dealership
270000545
Unavailable
29
Starter Ass'y, Black | Includes 1 - 16. This part replaces 278001300.
278001935
$234.49
30
Starter Support
270000080
Unavailable
31
Hex. Screw M8 X 16
207181660
Unavailable
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Loctite 243, 10 ml
293800060
$21.49
34
Hex. Screw M8 X 30
207183060
$1.58
35
Flat Washer M5, Stainless
234051600
$0.77
36
Helical Lock Washer M5
234151601
$1.15
37
Hex. Nut M5
232051600
$1.15
38
Elbow Fitting
293700016
Unavailable
39
Was 293800013 Loctite 56765
219704454
$65.99
40
RH ENGINE SUPPORT, BLACK - Call your local BRP dealership
270000596
Unavailable
41
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
42
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
43
Flat Washer 10 mm, Stainless
234001600
$1.15
44
LH Engine Support, Black
270000597
Unavailable
45
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
46
Engine Support, Black
270000598
Unavailable
