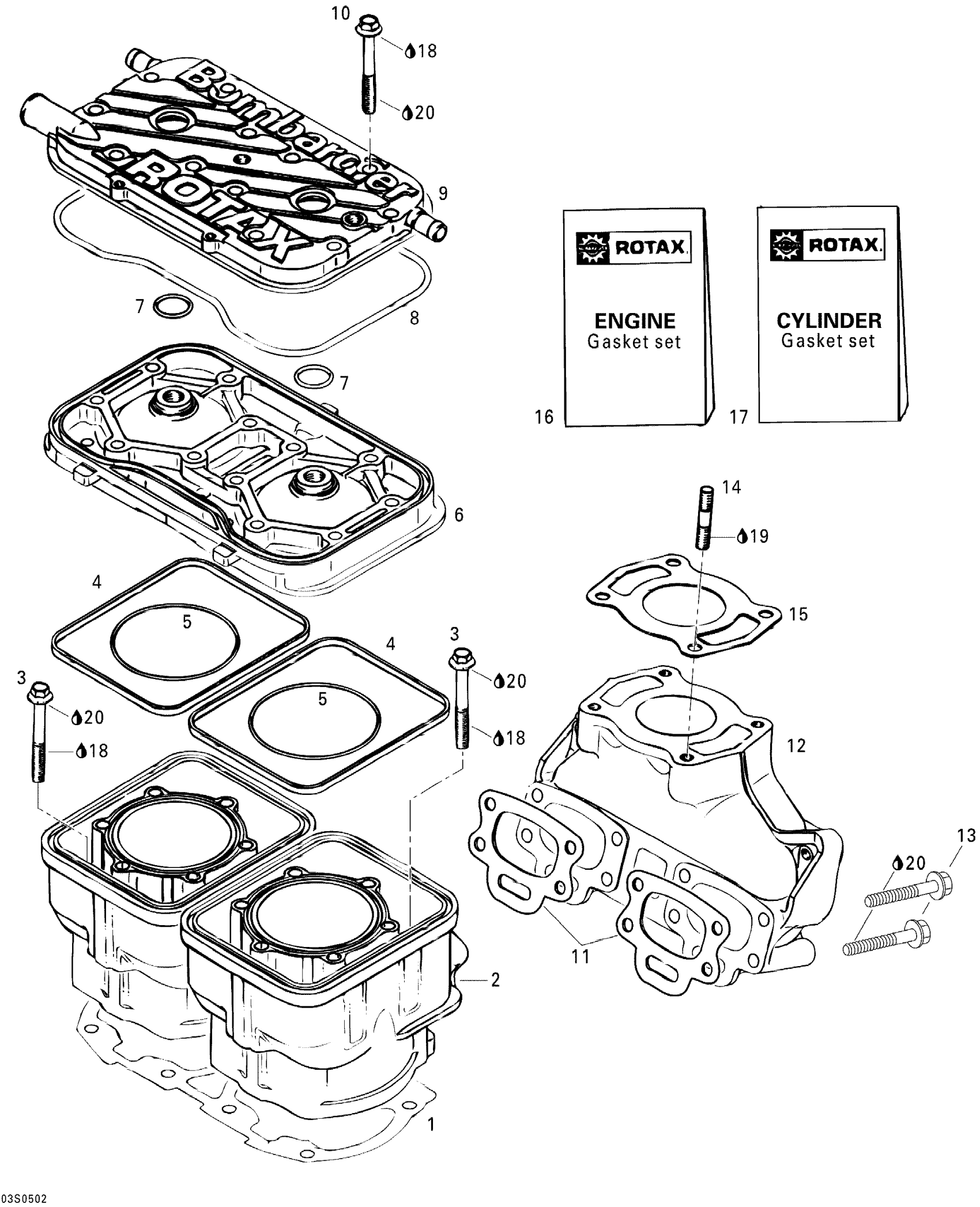

Sea-doo GTI, 2005 Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

GASKET CYLINDER 0.3 MM - Call your local BRP dealership

420931400

$13.82

1

GASKET CYLINDER 0.4 MM - Call your local BRP dealership

420931401

$13.82

1

GASKET CYLINDER 0.5 MM - Call your local BRP dealership

420931402

Unavailable

1

GASKET CYLINDER 0.6 MM - Call your local BRP dealership

420931403

$16.12

1

GASKET CYLINDER 0.8 MM - Call your local BRP dealership

420931404

Unavailable

2

REBUILD-CYLINDERS RESLEEVING 717 95-96 - Call your local BRP dealership

421000056

$279.99

3

HEX. FLANGED SCREW M8 X 90 - Call your local BRP dealership

420440368

Unavailable

4

RUBBER RING - Call your local BRP dealership

420850045

$17.66

5

O-Ring | Included in gasket kit

420931410

$2.67

6

HEAD CYLINDER, SILVER - Call your local BRP dealership

420923252

$264.99

7

O-Ring

420430782

$4.41

8

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

9

Cylinder Head Cover, Silver

420923262

Unavailable

10

HEX. FLANGED SCREW M8 X 68.5 - Call your local BRP dealership

420841998

$11.78

11

Gasket This part replaces 290850638.

420850638

$9.74

12

Exhaust Manifold, Black

420979147

Unavailable

13

HEX. FLANGED SCREW M8 X 68.5 - Call your local BRP dealership

420841998

$11.78

14

Stud M10 X 25

420940798

Unavailable

15

GASKET - Call your local BRP dealership

420950255

Unavailable

16

ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319.

420886319

Unavailable

17

CYLINDER GASKET SET - Call your local BRP dealership

420886318

Unavailable

18

Loctite 243, 10 ml

293800060

$20.77

19

Sealant Loctite 648

219703000

$35.72

20

Dow Corning 111, 150 g

413707000

$57.82
