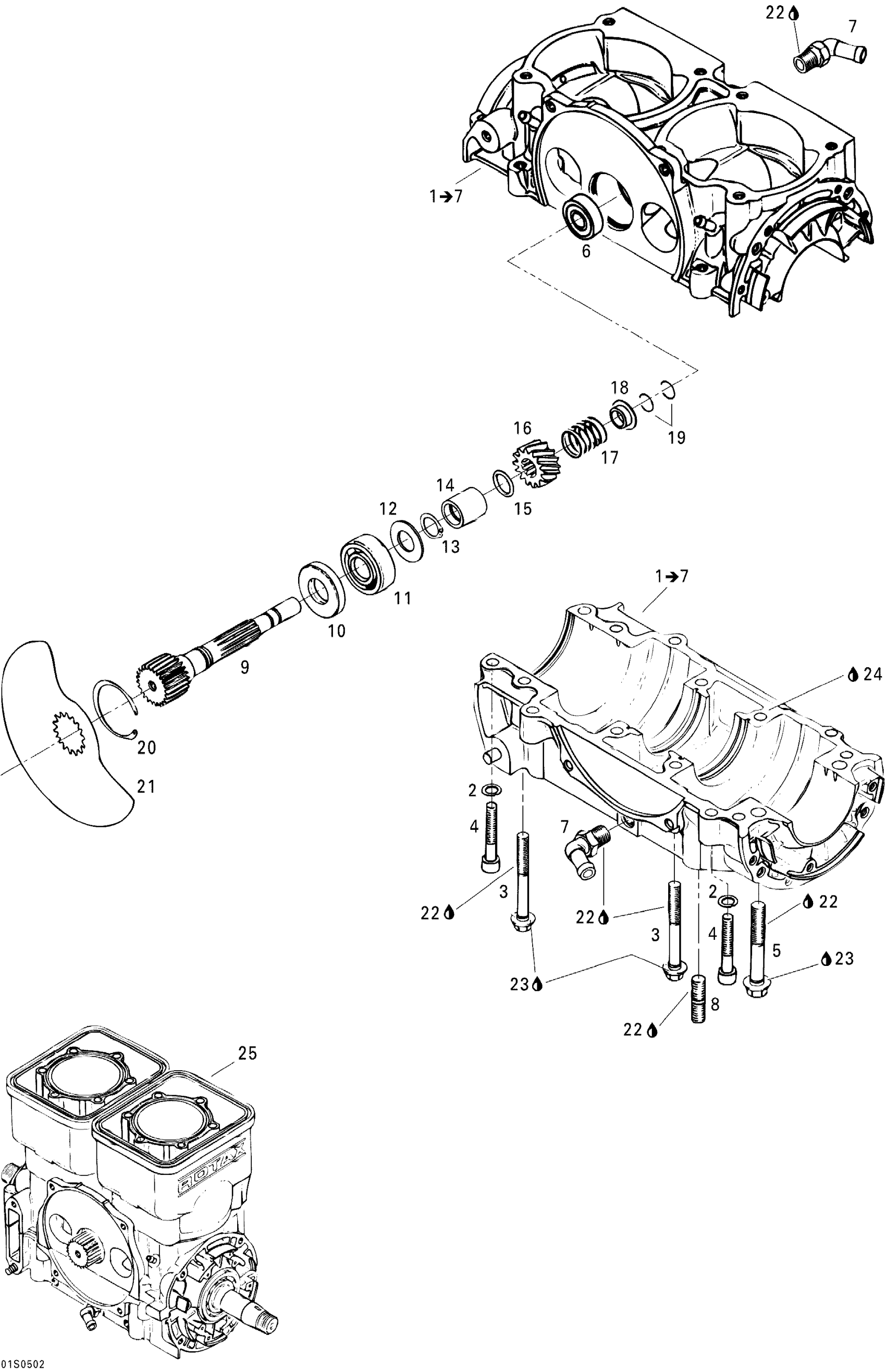

Sea-doo GTI, 2005 01- Crankcase And Rotary Valve Diagram
#
Description
Price
1
CRANKCASE 717 ASS'Y - Call your local BRP dealership | Includes 1 to 7
420890121
Unavailable
2
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
3
HEX. FLANGED SCREW M8 X 68.5 - Call your local BRP dealership
420841998
Unavailable
4
Socket Head Screw M8 X 45
205084560
$3.59
5
HEX. FLANGED SCREW M10 X 73.5 - Call your local BRP dealership
420941333
Unavailable
6
Ball Bearing
420932797
$19.99
7
Angular Tube
420922242
$14.83
8
Stud M10 X 25
420940798
Unavailable
8
STUD M10 X 18 - Call your local BRP dealership
420840290
Unavailable
9
ROTARY VALVE SHAFT - Call your local BRP dealership
420837252
Unavailable
10
OIL SEAL - Call your local BRP dealership
420930580
Unavailable
11
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
12
SHIM - Call your local BRP dealership
420227439
Unavailable
13
SNAP RING - Call your local BRP dealership
420845450
Unavailable
14
SPACER BUSHING - Call your local BRP dealership
420847282
Unavailable
15
O-Ring
293300024
$8.57
16
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
17
SPRING - Call your local BRP dealership
420938810
Unavailable
18
SPRING SEAT - Call your local BRP dealership
420827430
Unavailable
19
CIRCLIP - Call your local BRP dealership
420845160
Unavailable
20
Lock Ring
420945880
$4.44
21
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
22
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
23
Dow Corning 111, 150 g
413707000
$59.99
24
Loctite 5910, 300 ml
293800081
$57.99
25
Short Block 717, Black
420071705
Unavailable
