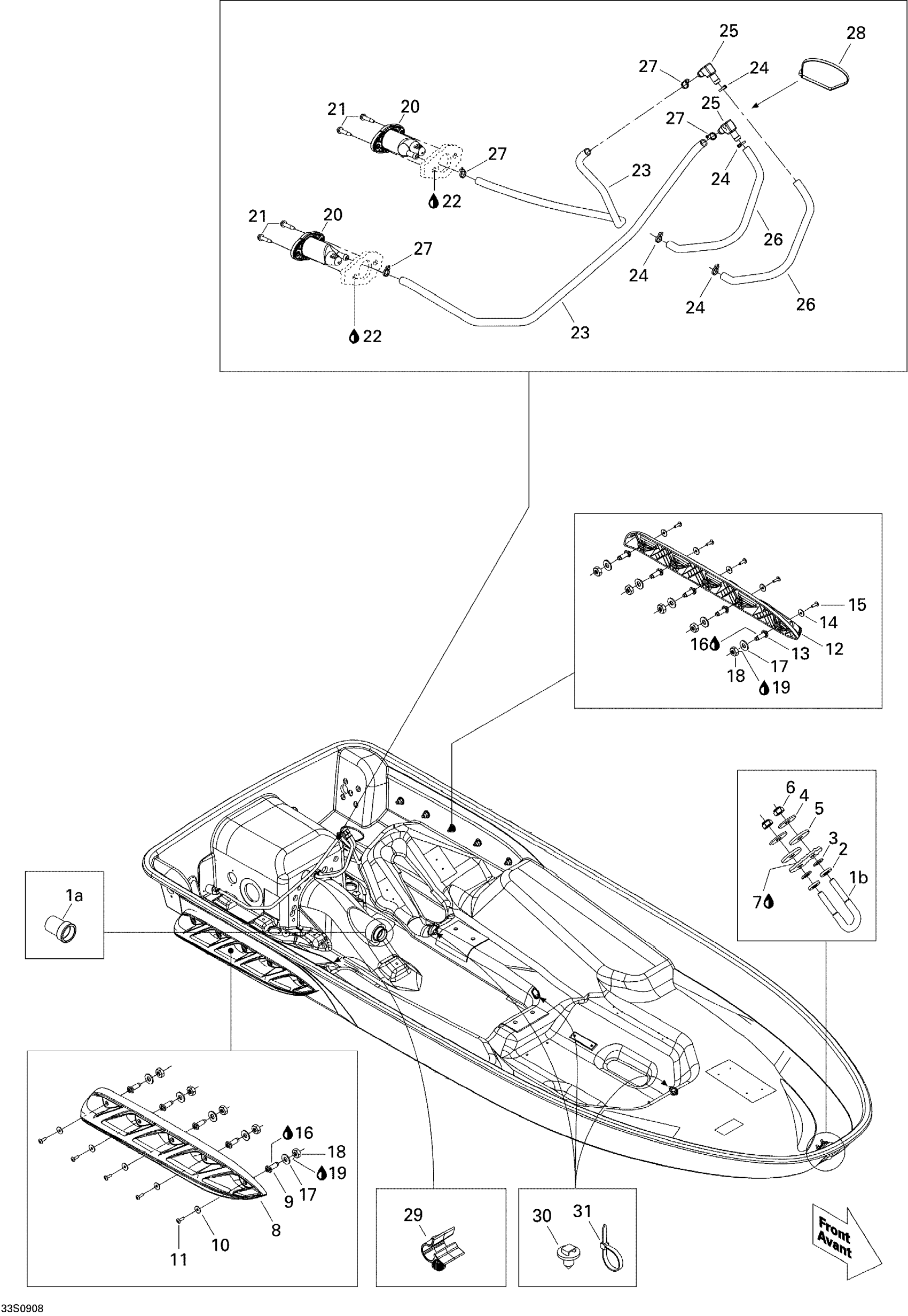

Sea-doo GTI 130 Rental, 2009 09- Hull Diagram
#
Description
Price
1a
HULL INSERT, 41 MM - Call your local BRP dealership
292000975
Unavailable
1b
U-Clamp
292000933
$59.49
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Flat Washer 8 mm, Nylon
234081100
$1.39
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Sponson
292001878
$93.99
9
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
10
Flat Washer M6.6 X 22
250200022
$2.72
11
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
12
LH Sponson
292001877
$93.99
13
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
14
Flat Washer M6.6 X 22
250200022
$2.72
15
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
18
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
Drain Plug
292001252
$36.99
21
Hex. Screw 10-14 X 7/8”
211000023
$3.59
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
26
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
Tie Wrap 368 mm
293750008
$1.04
29
Hose Retainer
275500528
Unavailable
30
Mount Dart
293730040
$1.04
31
Tie-Rap 180 mm
414115200
$0.11
31
Tie Wrap 368 mm
293750008
$1.04
