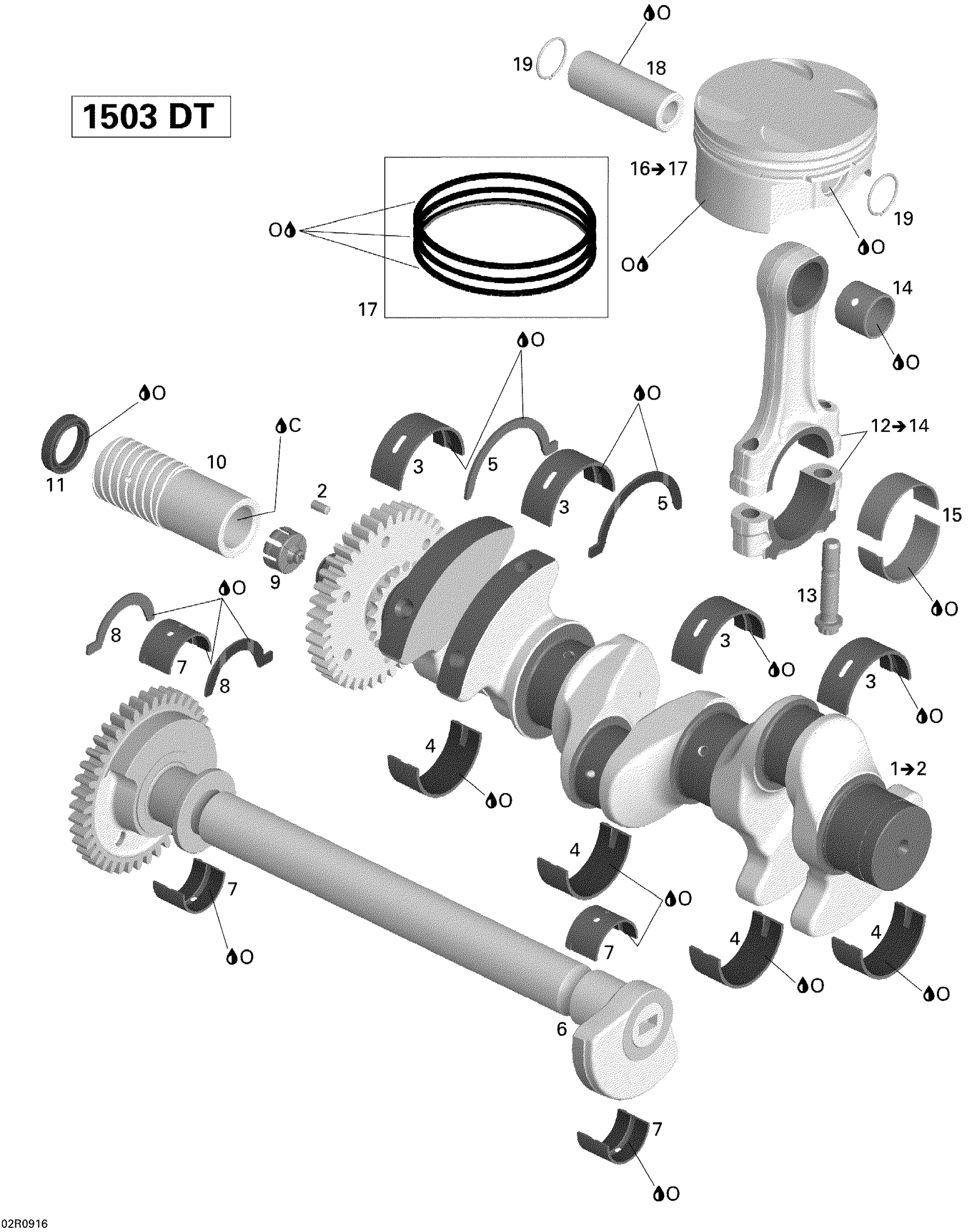

Sea-doo GTI 130 Rental, 2009 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420819348

$882.67

1

Crankshaft Ass'Y This part replaces 421000671.

420819341

$882.67

2

Drive Pin 5 X 10

420929650

$1.34

3

Plain Half-Bearing

420933456

$12.10

4

Plain Half-Bearing

420933466

$12.10

5

Half-Ring

420933475

$9.37

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$596.89

7

Plain Bearing Half

420933442

$14.92

8

Half-Ring

420933470

$6.11

9

Stop Sleeve

420660280

$10.91

10

Output Sleeve This part replaces 420847952.

420947770

$98.12

11

Sealing Ring

420630551

$12.29

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

$131.92

13

Connecting rod Screw M10 X 1

420640991

$9.37

14

Bearing Sleeve

420933510

$10.37

15

Half-Bearing

420933523

$14.27

16

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$161.17

16

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

$169.99

17

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$58.47

17

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

Unavailable

18

Piston Pin

420216250

$21.42

19

Circlip

420845580

$2.13

C

Sealant Loctite 648

219703000

$35.72

O

Not Available As Spare Part - Friction Washer

Unavailable
