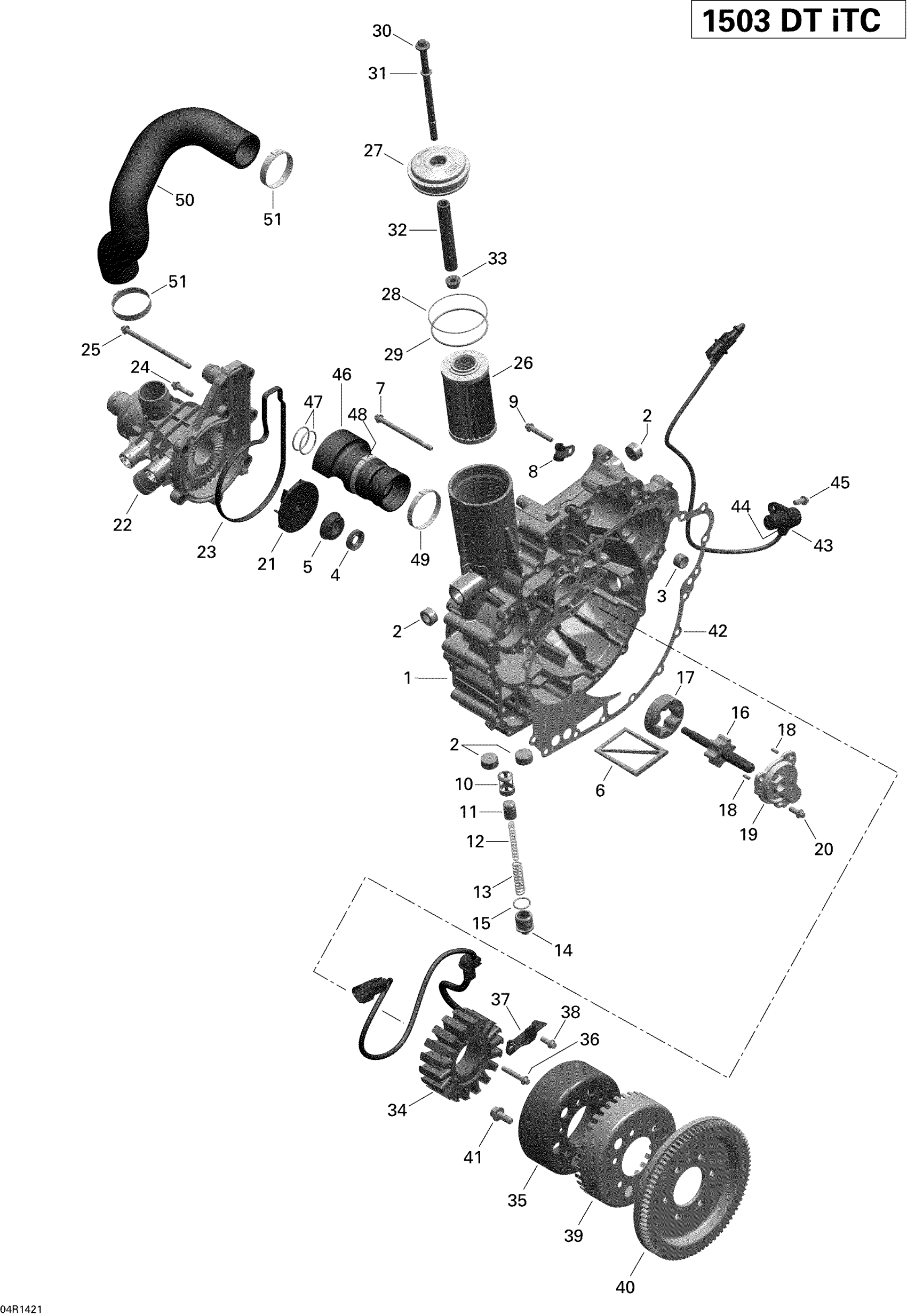

Sea-doo GTI 130, 2014 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$597.73

2

Plug Screw M20 X 1.5

420641317

$12.15

3

Needle Bushing

420232482

$17.88

4

Oil Seal

420650315

$11.04

5

Rotary Seal

420650371

$41.01

6

Oil Sieve

420956950

$14.33

7

Torx Flange Screw M6 X 85

420641228

$7.01

8

Clamp

420853414

$17.13

9

Torx Flange Screw M6 X 35

420641258

$3.19

10

Valve Seat Sleeve

420256606

$27.58

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939401

$12.52

13

Compression Spring

420939211

$8.22

14

Plug Screw M20 X 1.5

420641052

$35.79

15

O-Ring

420230890

$5.06

16

Pump Shaft Ass'y

420837472

$52.21

17

Oil Pump Rotor 16 mm

420956675

$33.55

18

Needle Pin

420929070

$1.79

19

Oil Pump Cover

420811591

$34.30

20

Torx Flange Screw M6 X 16

420641048

$2.82

21

Impeller

420922801

$16.39

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

24

Torx Flange Screw M6 X 25

420641238

$3.07

25

Torx Flange Screw M6 X 105

420641338

$7.01

26

Oil Filter

420956741

$12.79

27

Oil Filter Cover

420612081

$10.57

28

O-Ring

420230923

$2.97

29

O-Ring

420850500

$3.01

30

Hex Screw M8 X 140.5

420641104

$12.87

31

O-Ring

420950860

$3.67

32

Spacer

420857229

$19.37

33

Hex. Nut M8

420842610

$12.87

34

Stator Plate This part replaces 420889721.

420889726

$319.49

35

Magneto Flywheel

420296900

$461.99

36

Torx Flange Screw M6 X 35

420641258

$3.19

37

Retaining Plate

420926300

$14.90

38

Torx Flange Screw M6 X 16

420641048

$2.82

39

Trigger Wheel

420966851

$17.13

40

Starter Gear, 86 Teeth

420835163

$276.84

41

Hex Screw

295501162

$13.16

42

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

43

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

44

O-Ring

420431580

$14.10

45

Torx Flange Screw M6 X 16

420641048

$2.82

46

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$131.31

47

O-Ring

420631612

$4.04

48

Gear Clamp 46.8-50.0MM

420853023

$7.01

49

Gear Clamp

420851653

$7.01

50

Formed Hose This part replaces 420922825.

420922828

$41.76

51

Oetiker Clamp

420851687

$10.82
