Description

Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$649.99

2

Plug Screw M20 X 1.5

420641317

$14.49

3

Needle Bushing

420232482

$20.99

4

Oil Seal

420650315

$11.99

5

Rotary Seal

420650371

$44.99

6

Oil Sieve

420956950

$16.86

7

Torx Flange Screw M6 X 85

420641228

$7.59

8

Clamp

420853414

$18.49

9

Torx Flange Screw M6 X 35

420641258

$3.49

10

Valve Seat Sleeve

420256606

$31.99

11

Piston Valve

420256638

$22.99

12

Compression Spring

420939401

$14.75

13

Compression Spring

420939211

$9.19

14

Plug Screw M20 X 1.5

420641052

$38.99

15

O-Ring

420230890

$5.49

16

Pump Shaft Ass'y

420837472

$56.99

17

Oil Pump Rotor 16 mm

420956675

$37.99

18

Needle Pin

420929070

$1.99

19

Oil Pump Cover

420811591

$38.99

20

Torx Flange Screw M6 X 16

420641048

$2.99

21

Impeller

420922801

$16.99

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.49

24

Torx Flange Screw M6 X 25

420641238

$3.39

25

Torx Flange Screw M6 X 105

420641338

$7.59

26

Oil Filter

420956741

$14.49

27

Oil Filter Cover

420612081

$45.49

28

O-Ring

420230923

$3.29

29

O-Ring

420850500

$3.29

30

Hex Screw M8 X 140.5

420641104

$13.99

31

O-Ring

420950860

$3.99

32

Spacer

420857229

$20.99

33

Hex. Nut M8

420842610

$13.77

34

Stator Plate This part replaces 420889721.

420889726

$319.49

35

Magneto Flywheel

420296900

$461.99

36

Torx Flange Screw M6 X 35

420641258

$3.49

37

Retaining Plate

420926300

$16.37

38

Torx Flange Screw M6 X 16

420641048

$2.99

39

Trigger Wheel

420966851

$18.49

40

Starter Gear, 86 Teeth

420835163

$319.99

41

Hex Screw

295501162

$15.49

42

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$24.49

43

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$114.99

44

O-Ring

420431580

$15.49

45

Torx Flange Screw M6 X 16

420641048

$2.99

46

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

47

O-Ring

420631612

$4.39

48

Gear Clamp 46.8-50.0MM

420853023

$7.59

49

Gear Clamp

420851653

$7.59

50

Formed Hose This part replaces 420922825.

420922828

$45.49

51

Oetiker Clamp

420851687

$11.65

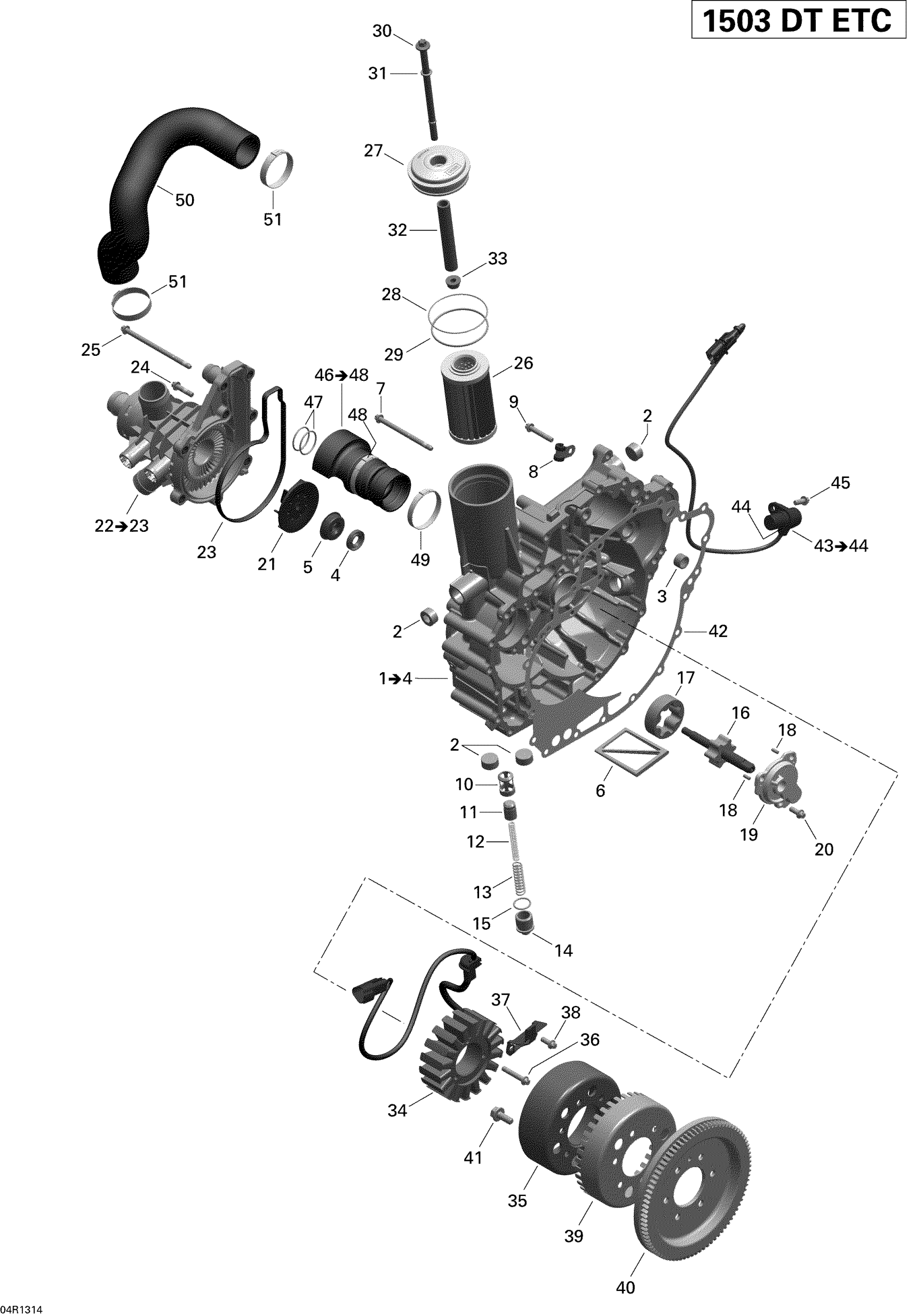

Sea-doo GTI 130, 2013 PTO Cover And Magneto Diagram

Timing/Drive Cover Ass'y | Includes no. 1-5

Plug Screw M20 X 1.5

Needle Bushing

Oil Seal

Rotary Seal

Oil Sieve

Torx Flange Screw M6 X 85

Clamp

Torx Flange Screw M6 X 35

Valve Seat Sleeve

Piston Valve

Compression Spring

Compression Spring

Plug Screw M20 X 1.5

O-Ring

Pump Shaft Ass'y

Oil Pump Rotor 16 mm

Needle Pin

Oil Pump Cover

Torx Flange Screw M6 X 16

Impeller

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

Water Pump Housing Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

Torx Flange Screw M6 X 105

Oil Filter

Oil Filter Cover

O-Ring

O-Ring

Hex Screw M8 X 140.5

O-Ring

Spacer

Hex. Nut M8

Stator Plate This part replaces 420889721.

Magneto Flywheel

Torx Flange Screw M6 X 35

Retaining Plate

Torx Flange Screw M6 X 16

Trigger Wheel

Starter Gear, 86 Teeth

Hex Screw

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

Crankshaft Position Sensor Ass'y | Includes 10 to 11

O-Ring

Torx Flange Screw M6 X 16

Ball Bearing With Bellows Ass'y | Includes 50 to 52

O-Ring

Gear Clamp 46.8-50.0MM

Gear Clamp

Formed Hose This part replaces 420922825.

Oetiker Clamp
