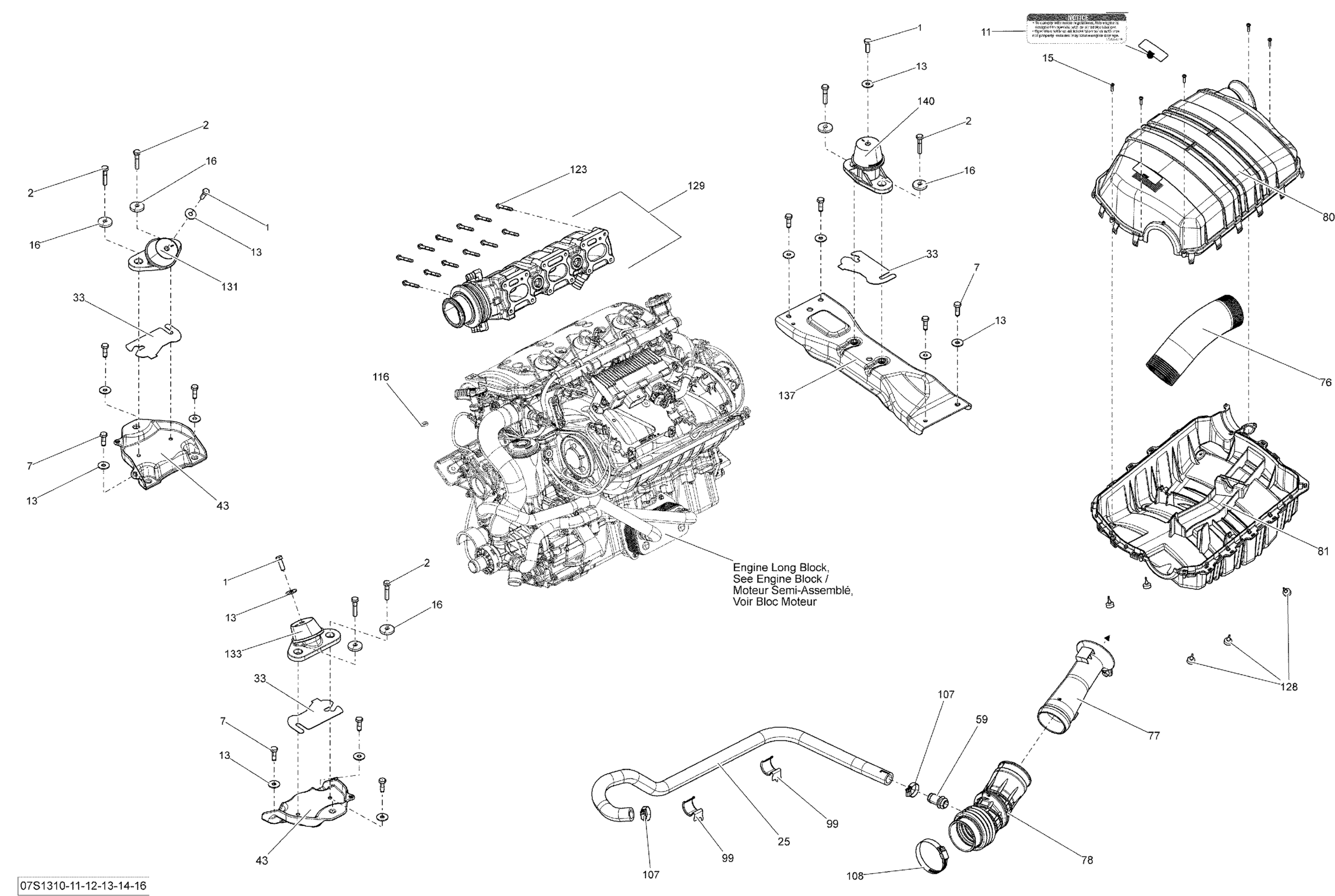

Sea-doo GTI 130, 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

11

Air Silencer Notice Decal

219903177

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Flange Torx Screw K40 X 16

250000287

$1.74

16

Cone Washer

250200018

$4.64

25

Formed Hose

270000949

$37.02

33

Shim 1.3 mm

270000762

$9.04

43

REAR SPACER - Call your local BRP dealership | Hull LFI

270000815

Unavailable

59

Breather Valve

273000234

$10.63

76

Air Silencer Hose

273000290

$20.12

77

INTAKE HOSE - Call your local BRP dealership

273000291

Unavailable

78

Hose Connector

273000292

$40.92

80

Airbox Cover

273000371

$65.64

81

Airbox Base

273000354

$51.46

99

Retainer

275500664

$10.91

107

Tridon Gear Clamp

293650051

$3.61

108

Tridon Clamp

293650179

$8.81

116

Tie Wrap 142 mm

293750002

$0.88

123

Torx Flange Screw M6 X 45

420641198

$3.38

128

Rubber Stopper

708000759

$3.61

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

131

Engine Support Ass'y

270001081

$84.47

133

Engine Support Ass'y

270001081

$84.47

137

Front Spacer | Hull LFI

270000818

$117.88

140

Engine Support Ass'y

270001096

$77.32
