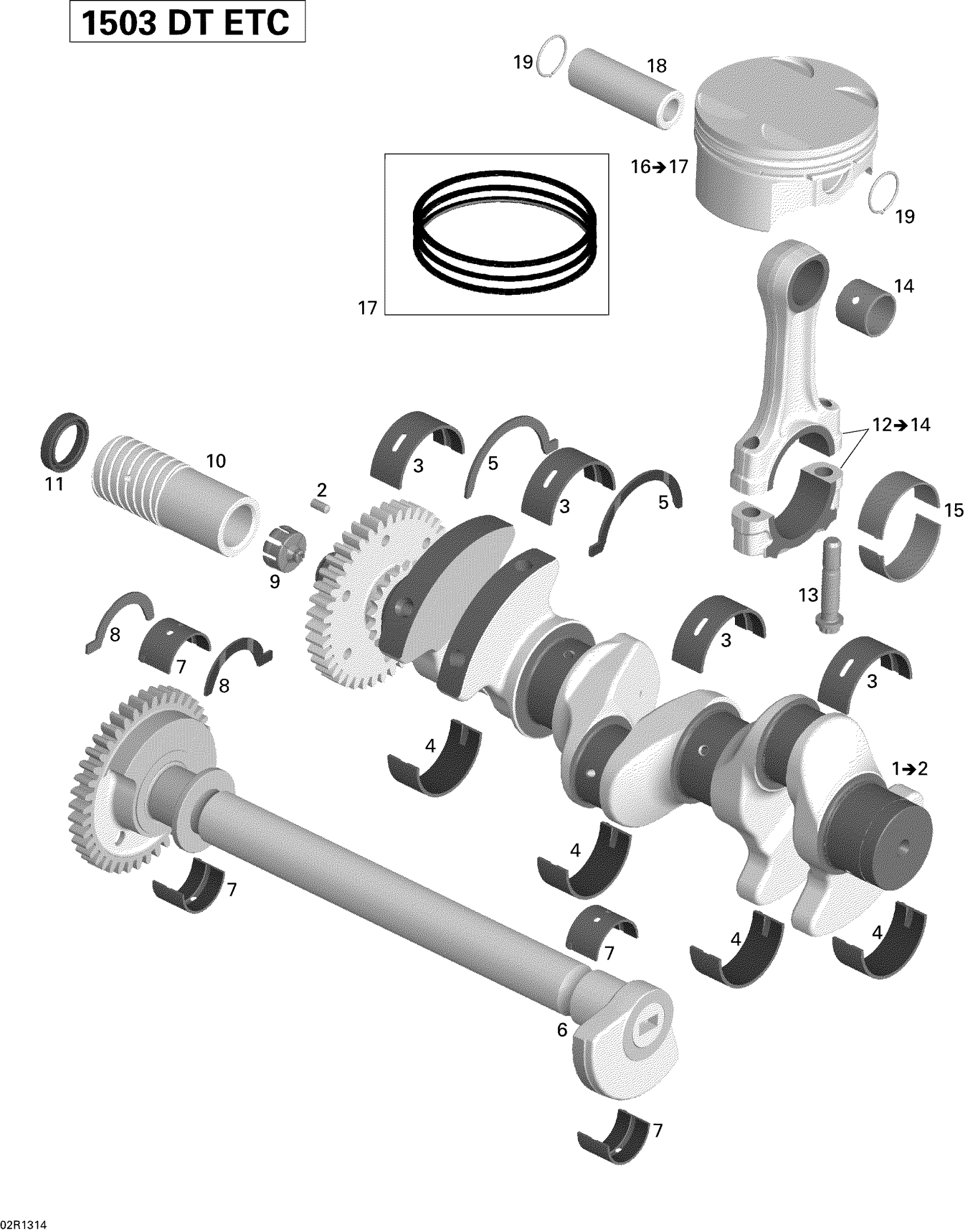

Sea-doo GTI 130, 2013 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420819348

$1,011.49

1

Crankshaft Ass'Y This part replaces 421000671.

420819341

$1,011.49

2

Drive Pin 5 X 10

420929650

$1.69

3

Plain Half-Bearing

420933456

$16.34

4

Plain Half-Bearing

420933466

$16.34

5

Half-Ring

420933475

$11.99

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$629.99

7

Plain Bearing Half

420933442

$19.99

8

Half-Ring

420933470

$7.59

9

Stop Sleeve

420660280

$14.75

10

Output Sleeve This part replaces 420847952.

420947770

$121.99

11

Sealing Ring

420630551

$15.49

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

13

Connecting rod Screw M10 X 1

420640991

$11.99

14

Bearing Sleeve

420933510

$14.22

15

Half-Bearing

420933523

$19.19

16

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$184.99

16

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

$169.99

17

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$67.99

17

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$72.99

18

Piston Pin

420216250

$24.99

19

Circlip

420845580

$2.69
