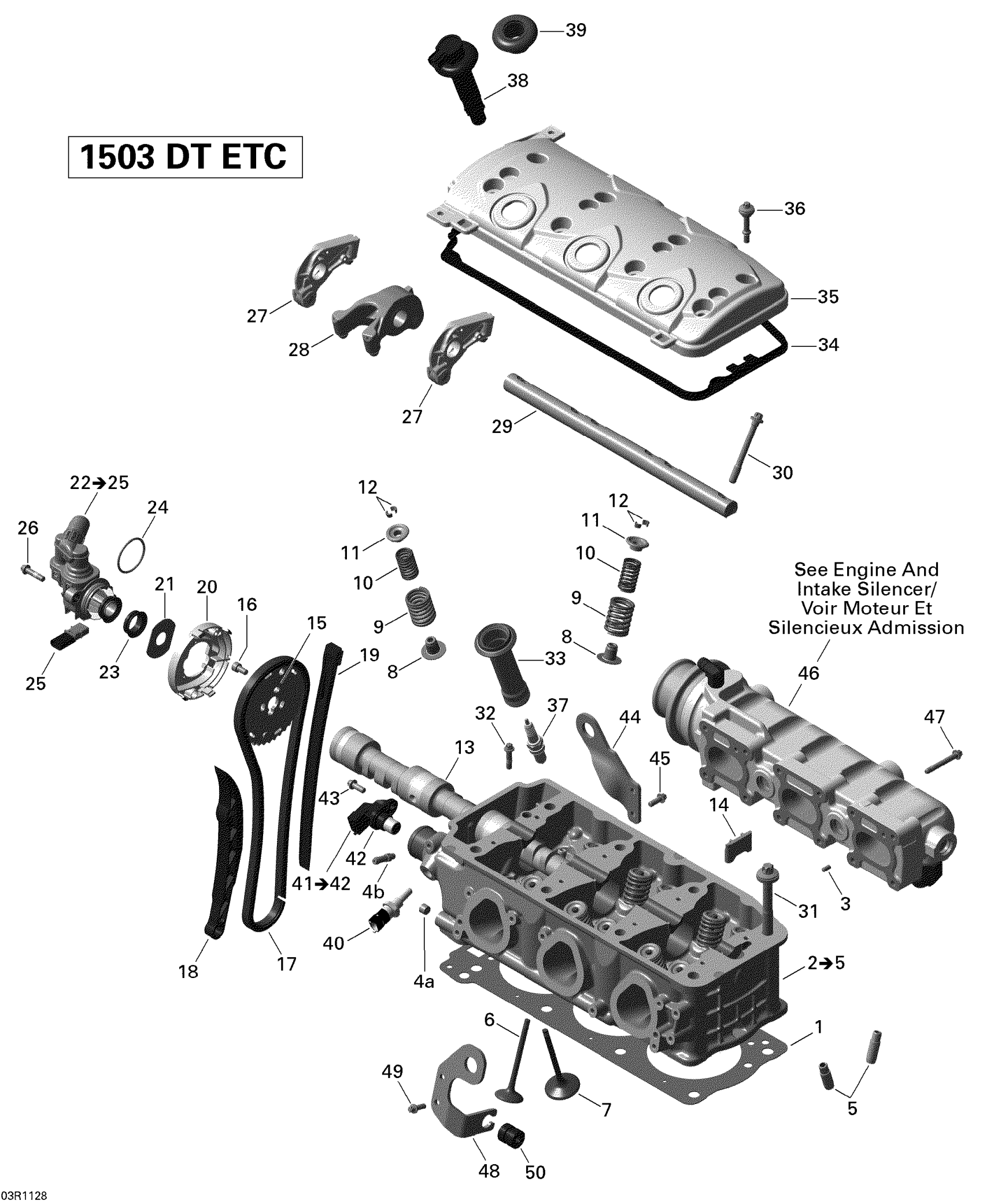

Sea-doo GTI 130, 2012 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$100.72

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$685.07

2

REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership

421000644

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4a

Plug Screw M10 X 1

420641323

$11.48

4b

Hose Nipple

420924724

$12.29

5

Valve Guide | Inner diameter machined

420253929

$37.67

6

Exhaust Valve, 31 mm

420254682

$85.12

7

Intake Valve 38MM

420253163

$33.77

8

Valve Steam Seal

420630202

$6.02

9

Valve Spring

420238180

$12.97

10

Valve Spring Inside

420838280

$10.58

11

Valve Spring Retainer

420254283

$7.05

12

Valve Cotter

420253645

$6.11

13

CAMSHAFT - Call your local BRP dealership

420837854

Unavailable

14

Camshaft Guide

420851694

$26.62

15

Timing Gear, 38 Teeth

420254309

$57.82

16

Allen Screw M6 X 12

420840032

$3.61

17

Camshaft Chain

420898042

$79.92

18

Chain Tension Guide

420236541

$12.97

19

Chain Guide

420236501

$11.48

20

Cover

420660037

$19.47

21

Thrust Washer

420627494

$6.11

22

Vent Valve Ass'y | Includes no. 39-42

420856504

$88.37

23

V-Ring 20S FPM Blow By Valve

420630125

$9.37

24

O-Ring

420950870

$4.41

25

TOPS Switch

420665951

$34.42

26

Torx Flange Screw M6 X 25

420641238

$2.68

27

Rocker Arm, Exhaust

420254329

$112.42

28

Rocker Arm, Inner

420254316

$148.17

29

Rocker Arm, Shaft

420854594

$187.28

30

Torx Screw M8 X 72

420641080

$4.39

31

Torx Flange Screw M11 X 147

420641110

$8.63

32

Torx Flange Screw M6 X 25

420641238

$2.68

33

Spark Plug Pipe

420851754

$22.72

34

Valve Cover Gasket | Included in gasket kit

420950820

$27.27

35

Valve Cover

420811589

$121.52

36

Allen Screw M6 x 30,5

420440561

$3.67

37

Spark Plug, NGK DCP-R8E

715900637

$5.66

38

Ignition Coil Kit This part replaces 420664020.

296000307

$86.42

39

Sealing Cup

420460830

$17.52

40

Temperature Sensor

278002895

$31.82

41

Camshaft Position Sensor Ass'y

420664046

$70.82

42

O-Ring

420631890

$4.24

43

Torx Flange Screw M6 X 16

420641048

$2.46

44

Transport Bracket PTO

420851618

$25.34

45

Torx Flange Screw M6 X 16

420641048

$2.46

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Torx Flange Screw M6 X 45

420641198

$3.38

48

TRANSPORT BRACKET FRONT - Call your local BRP dealership

420951380

Unavailable

49

Torx Flange Screw M6 X 16

420641048

$2.46

50

Rubber Bracket

420660090

$3.38
