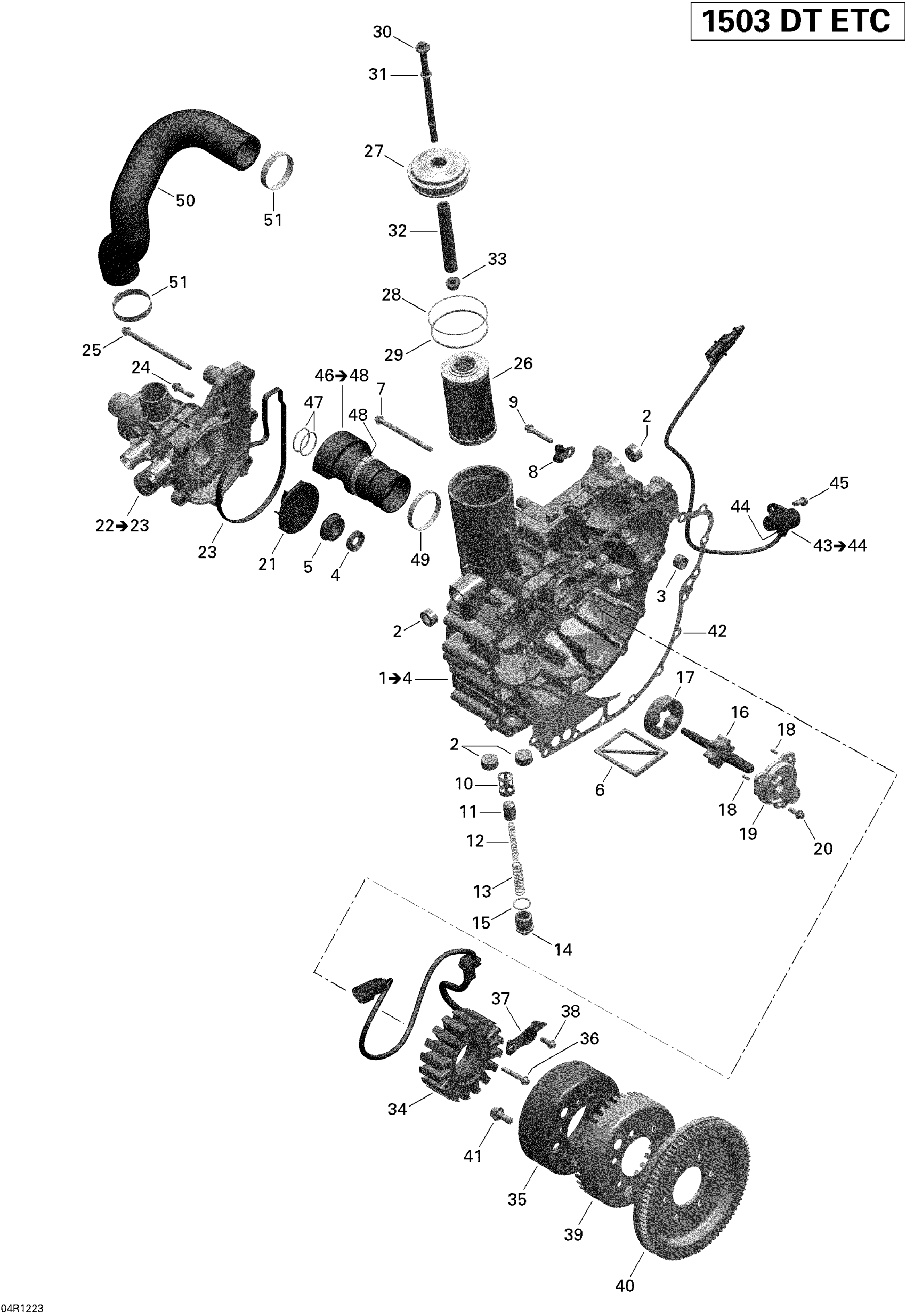

Sea-doo GTI 130, 2012 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-5

420910527

$520.62

2

Plug Screw M20 X 1.5

420641317

$10.58

3

Needle Bushing

420232482

$15.57

4

Oil Seal

420650315

$9.62

5

Rotary Seal

420650371

$35.72

6

Oil Sieve

420956950

$12.48

7

Torx Flange Screw M6 X 85

420641228

$6.11

8

Clamp

420853414

$14.92

9

Torx Flange Screw M6 X 35

420641258

$2.78

10

Valve Seat Sleeve

420256606

$24.02

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939401

$10.91

13

Compression Spring

420939211

$7.16

14

Plug Screw M20 X 1.5

420641052

$31.17

15

O-Ring

420230890

$4.41

16

Pump Shaft Ass'y

420837472

$45.47

17

Oil Pump Rotor 16 mm

420956675

$29.22

18

Needle Pin

420929070

$1.56

19

Oil Pump Cover

420811591

$29.87

20

Torx Flange Screw M6 X 16

420641048

$2.46

21

Impeller

420922801

$14.27

22

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

23

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

24

Torx Flange Screw M6 X 25

420641238

$2.68

25

Torx Flange Screw M6 X 105

420641338

$6.11

26

Oil Filter

420956741

$11.14

27

Oil Filter Cover

420612081

$9.20

28

O-Ring

420230923

$2.59

29

O-Ring

420850500

$2.63

30

Hex Screw M8 X 140.5

420641104

$11.21

31

O-Ring

420950860

$3.20

32

Spacer

420857229

$16.87

33

Hex. Nut M8

420842610

$11.21

34

Stator Plate This part replaces 420889721.

420889726

$278.82

35

Magneto Flywheel

420296900

$459.52

36

Torx Flange Screw M6 X 35

420641258

$2.78

37

Retaining Plate

420926300

$12.97

38

Torx Flange Screw M6 X 16

420641048

$2.46

39

Trigger Wheel

420966851

$14.92

40

Starter Gear, 86 Teeth

420835163

$276.84

41

Hex Screw

295501162

$11.47

42

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

43

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

44

O-Ring

420431580

$12.29

45

Torx Flange Screw M6 X 16

420641048

$2.46

46

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

47

O-Ring

420631612

$3.52

48

Gear Clamp 46.8-50.0MM

420853023

$6.11

49

Gear Clamp

420851653

$6.11

50

Formed Hose This part replaces 420922825.

420922828

$36.37

51

Oetiker Clamp

420851687

$9.43
