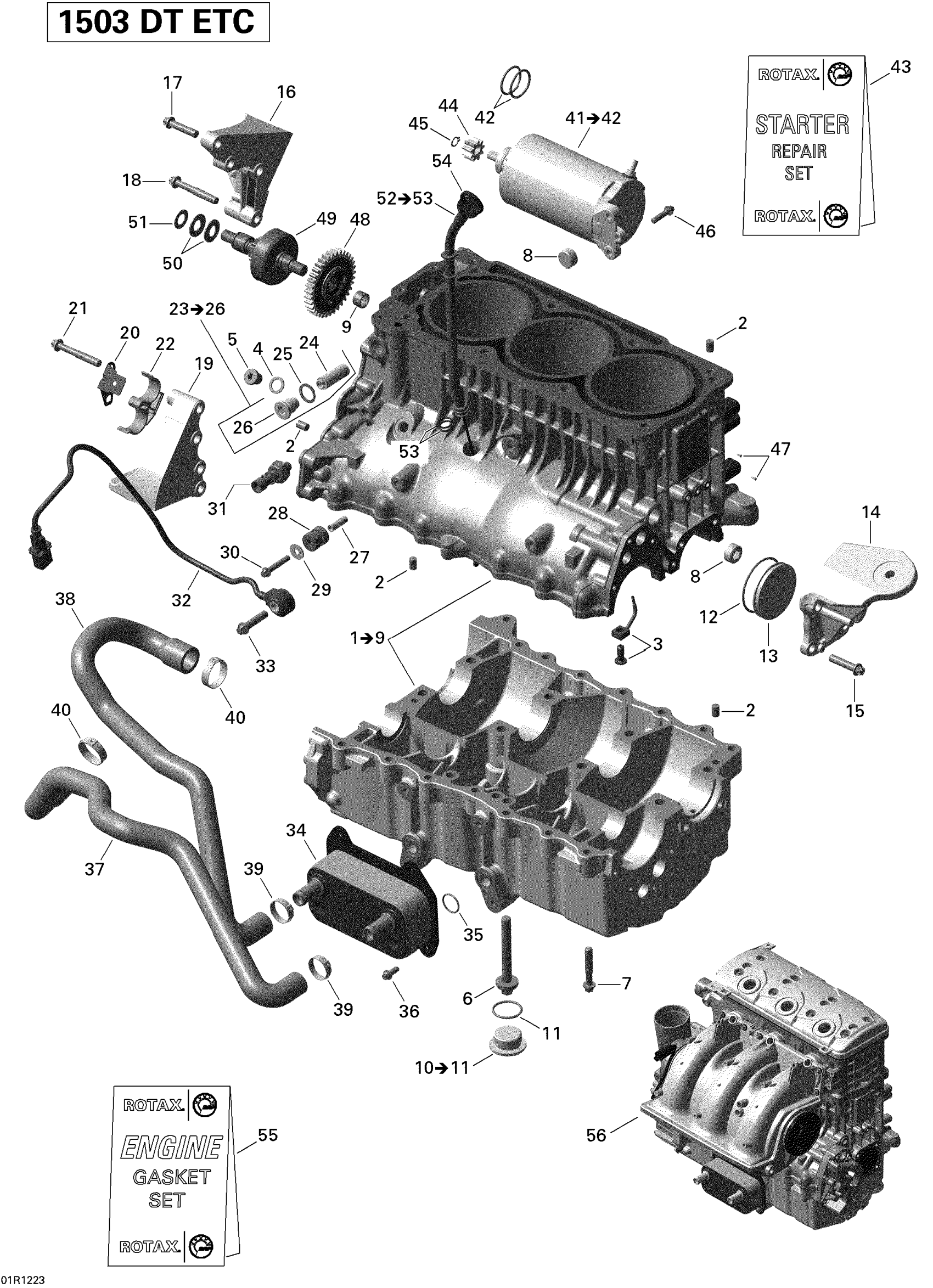

Sea-doo GTI 130, 2012 Engine Block Diagram

#

Description
Price

1

Cylinder Block With Sleeves | Includes 1 to 9 This part replaces 420892461.

420893511

$2,768.99

2

Center Pin 8 X 12

420632010

$3.07

3

Oil Spray Nozzle This part replaces 420956778.

420956827

$22.72

4

Aluminum Sealing Ring

420250016

$4.41

5

Plug Screw M12

420841923

$12.97

6

Torx Flange Screw M10 X 82

420641120

$6.11

7

Hex. Flange Screw M8 X 45

420641208

$6.18

8

Plug Screw M20 X 1.5

420641317

$10.58

9

Needle Bushing

420232482

$15.57

10

Plug Screw M30 X 1.5

420641171

$15.57

11

O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws

420631300

$7.87

12

O-Ring

420430405

$11.48

13

Plug Cover

420660110

$6.11

14

FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.

420811792

Unavailable

15

Torx Flange Screw M8 X 35

420641188

$6.11

16

Engine Bracket PTO, Exhaust

420811788

$66.39

17

Torx Flange Screw M8 X 35

420641188

$6.11

18

Torx Flange Screw M8 X 55

420641213

$6.11

19

Engine Bracket PTO, Exhaust

420811784

$62.66

20

Retaining Plate

420851740

$17.88

21

Torx Flange Screw M8 X 55

420641213

$6.11

22

Hose Bracket

420660290

$14.90

23

Chain Tensioner With Screw | Includes no. 8-11

420236259

$58.47

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Gasket Ring

420430624

$1.51

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Spacer

420847971

$6.08

28

Rubber Bracket

420660090

$3.38

29

Flat Washer M6

420827968

$1.56

30

Torx Flange Screw M6 X 35

420641258

$2.78

31

Oil Pressure Switch

420856533

$33.77

32

Noise Sensor

420664031

$50.67

33

Torx Flange Screw M8 X 35

420641188

$6.11

34

Oil Radiator

420888877

$303.70

35

O-Ring

420250057

$3.48

36

Torx Flange Screw M6 X 16

420641048

$2.46

37

Formed Hose

420922834

$51.97

38

Formed Hose

420922832

$39.62

39

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

40

Gear Clamp

420851673

$4.71

41

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

42

O-Ring

420631310

$3.61

43

Carbon Brush Set

420881340

$52.62

44

Starter Gear, 9 Teeth

420834522

$59.77

45

Retaining Ring

420845601

$3.73

46

Torx Flange Screw M6 X 25

420641238

$2.68

47

Grooved Pin

420249073

$1.56

48

Bendix Starter This part replaces 420889872.

420890637

$214.47

49

Bendix Starter This part replaces 420889872.

420890637

$214.47

50

Spring Washer

420238300

$6.11

51

Thrust Washer

420827261

$6.18

52

Oil Level Tube

420956944

$95.52

53

O-Ring

420950810

$12.29

54

Oil Level Gauge

420956932

$21.42

55

Engine Gasket Set

420889773

$453.02

56

ENGINE LONG BLOCK, 1503 DT ETC - Call your local BRP dealership

420150349

Unavailable

56

REBUILD-LONG BLOCK 1503DT - Call your local BRP dealership

421000640

Unavailable
