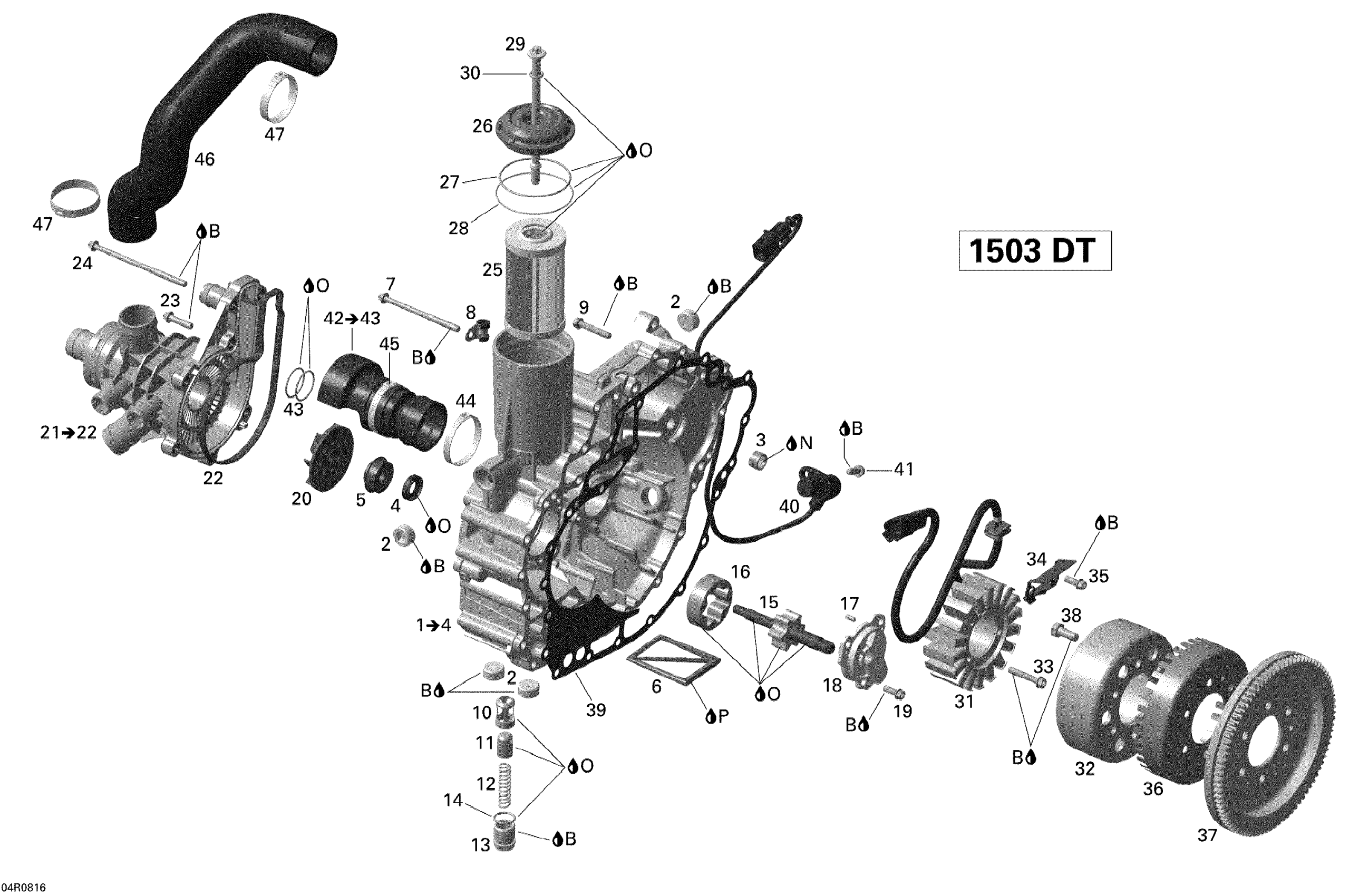

Sea-doo GTI 130, 2008 PTO Cover And Magneto Diagram

#

Description
Price

1

TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 4 This part replaces 420812625.

420481447

Unavailable

2

Plug Screw M20 X 1.5

420641317

$10.58

3

Needle Bushing

420232482

$15.57

4

Oil Seal

420650315

$9.62

5

Rotary Seal

420650371

$35.72

6

Oil Sieve

420956950

$12.48

7

Torx Flange Screw M6 X 85

420641228

$6.11

8

Clamp

420853414

$14.92

9

Torx Flange Screw M6 X 35

420641258

$2.78

10

Valve Seat Sleeve

420256606

$24.02

11

Piston Valve

420256638

Unavailable

12

Compression Spring

420939410

Unavailable

13

Plug Screw M20 X 1.5

420641052

$31.17

14

O-Ring

420230890

$4.41

15

Pump Shaft Ass'y

420837472

$45.47

16

Oil Pump Rotor 16 mm

420956675

$29.22

17

Needle Pin

420929070

$1.56

18

Oil Pump Cover

420811591

$29.87

19

Torx Flange Screw M6 X 16

420641048

$2.46

20

Impeller

420922801

$14.27

21

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

22

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

23

Torx Flange Screw M6 X 25

420641238

$2.68

24

Torx Flange Screw M6 X 105

420641338

$6.11

25

Oil Filter

420956741

$11.14

26

Oil Filter Cover

420610329

$27.27

27

O-Ring

420230923

$2.59

28

O-Ring

420850500

$2.63

29

Oil Filter Screw Kit

295501207

$32.47

30

O-Ring

420950860

$3.20

31

Stator Plate This part replaces 420889721.

420889726

$278.82

32

Magneto Flywheel

420296900

$459.52

33

Torx Flange Screw M6 X 35

420641258

$2.78

34

Retaining Plate

420926300

$12.97

35

Torx Flange Screw M6 X 16

420641048

$2.46

36

Trigger Wheel

420966851

$14.92

37

Starter Gear, 86 Teeth

420835163

$276.84

38

Hex Screw

295501162

$11.47

39

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

40

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

41

Torx Flange Screw M6 X 16

420641048

$2.46

42

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

43

O-Ring

420631612

$3.52

44

Gear Clamp

420851653

$6.11

45

Gear Clamp 46.8-50.0MM

420853023

$6.11

46

Formed Hose

420922822

$53.27

47

Oetiker Clamp

420851687

$9.43

B

Loctite 243, 10 ml

293800060

$20.77

N

Dow Corning 111, 150 g

413707000

$57.82

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
