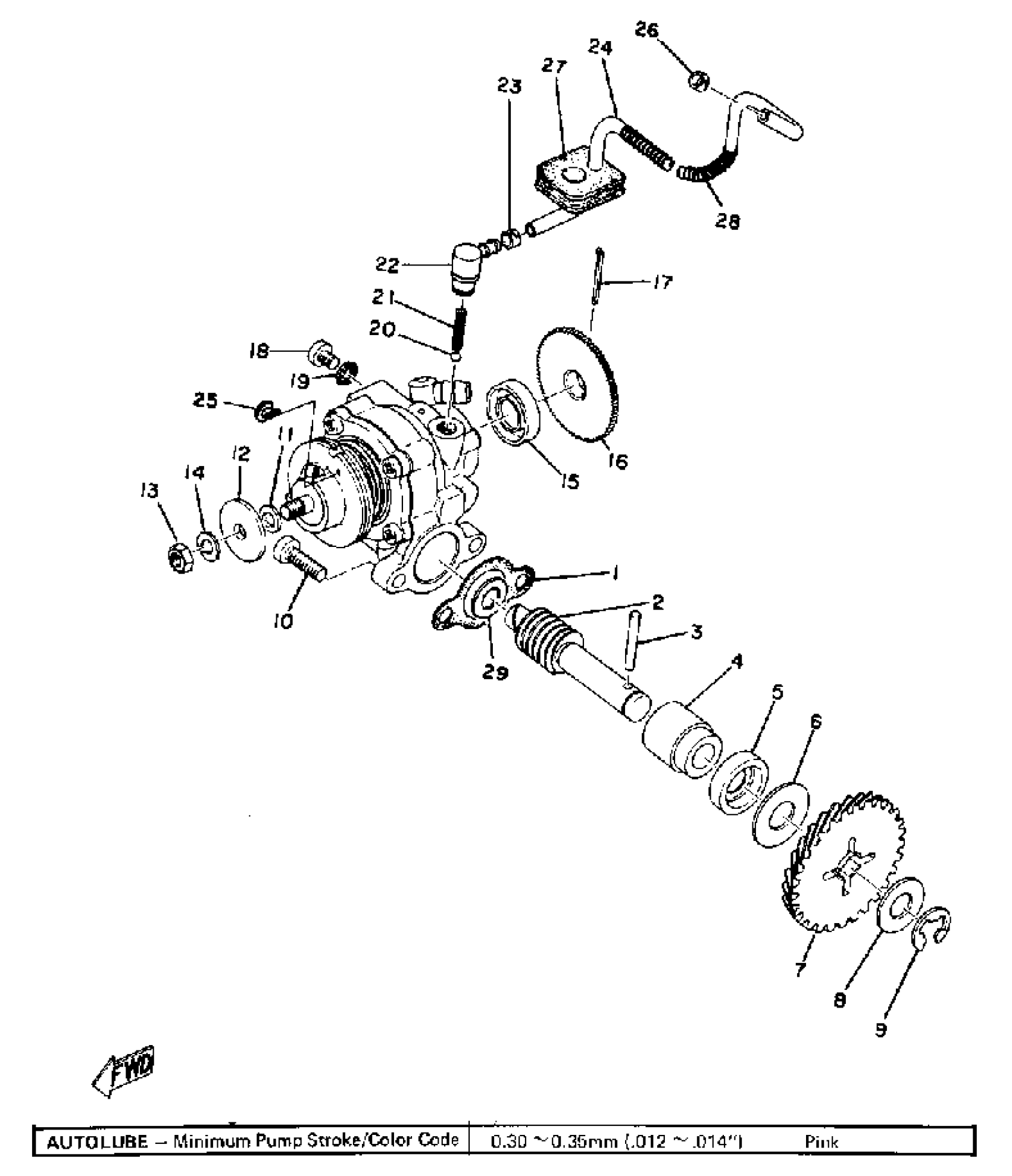

Yamaha GT80MXB (GT80MX) 1975 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

367-13101-00-00

Unavailable

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

257-13175-00-00

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (J10)

93101-10090-00

$8.49

6

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

7

GEAR, PUMP DRIVE

353-13178-00-00

Unavailable

8

WASHER, PLATE

(90201-10129-00)

Unavailable

9

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

PLATE, ADJUSTING

137-13138-01-00

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

OIL SEAL (J10)

93101-10090-00

$8.49

16

PLATE, STARTER

(353-13128-00-00)

Unavailable

17

. PIN, COTTER

91401-12018-00

Unavailable

18

SCREW, BIND

98980-04008-00

Unavailable

19

GASKET 137131870000

90430-04004-00

Unavailable

20

BALL

93505-32002-00

Unavailable

21

SPRING (278-13169-00)

90501-02018-00

Unavailable

22

NOZZLE

353-13552-01-00

Unavailable

23

CLIP (214-13164-00)

90468-02033-00

Unavailable

24

HOSE (L700)

90445-05M07-00

Unavailable

25

COVER, ADJUST PULLEY

367-13146-01-00

Unavailable

26

CLIP (214-13164-00)

90468-02033-00

Unavailable

27

HOLDER, OIL PIPE

248-13174-00-00

Unavailable

28

SPRING, COMPRESSION

90501-06025-00

Unavailable

29

WASHER, PLATE (1E7)

90201-08624-00

Unavailable
