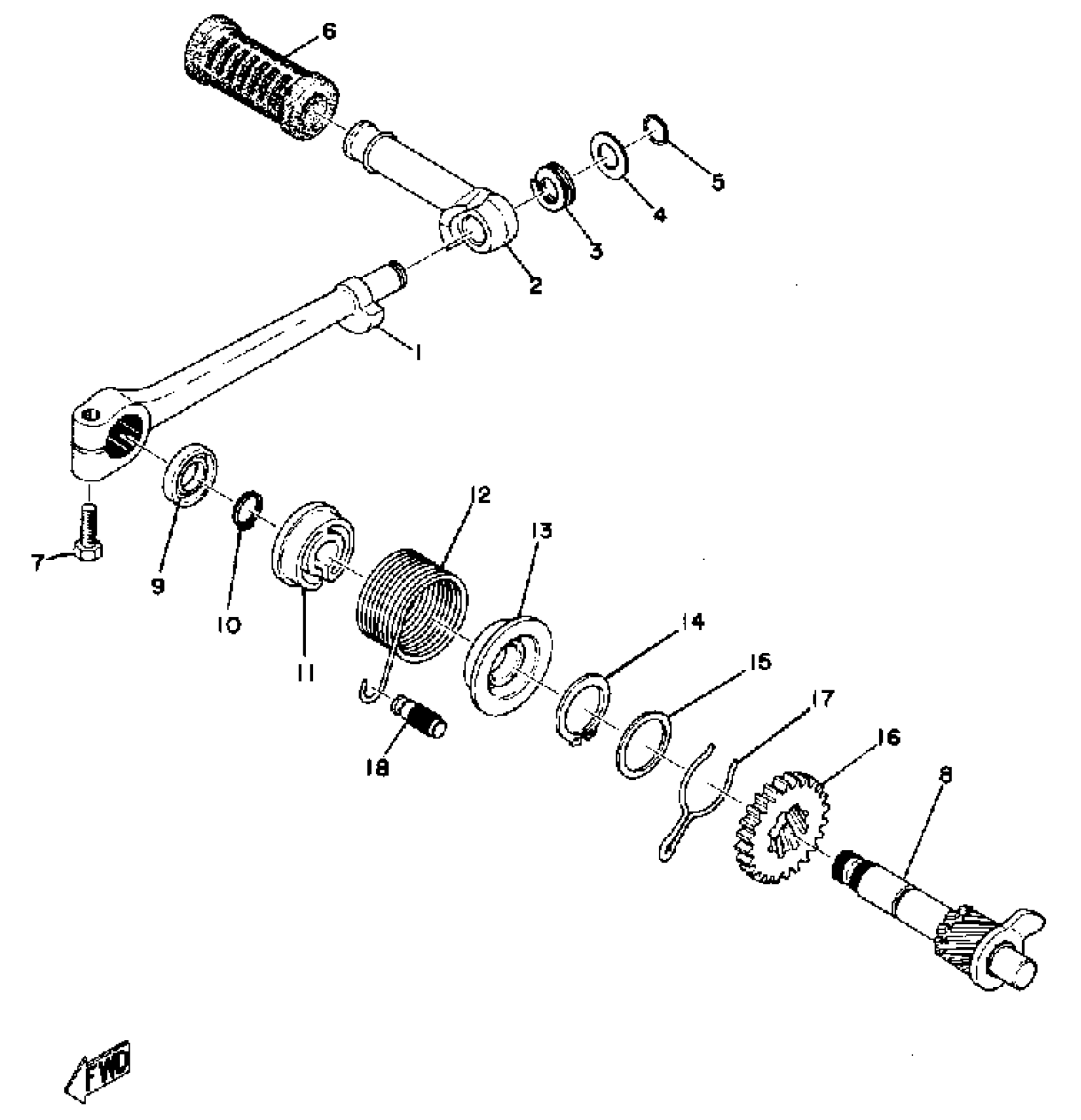

Yamaha GT80MXB (GT80MX) 1975 KICK STARTER Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY

3AY-15620-00-00

Unavailable

2

LEVER, KICK

(214-15612-09-00)

Unavailable

3

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

4

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

5

. CIRCLIP, OUTER

93440-10028-00

Unavailable

6

COVER, KICK LEVER

156-15618-01-00

$7.99

7

BOLT, HEXAGON

97017-06020-00

$4.06

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

KICK AXLE ASSEMBLY

353-15660-01-00

Unavailable

9

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

10

CIRCLIP(1AR)

99009-15400-00

$8.49

11

COVER, KICK SPRING

132-15676-01-00

Unavailable

12

SPRING TORSION 304156650000

90508-26136-00

Unavailable

13

GUIDE, KICK SPRING

132-15664-01-00

$10.99

14

CIRCLIP (256)

93410-25017-00

$3.76

15

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

16

GEAR, KICK (24T)

353-15641-00-00

Unavailable

17

CLIP

90468-26038-00

Unavailable

18

STOPPER, KICK SPRING

248-15668-00-00

Unavailable
