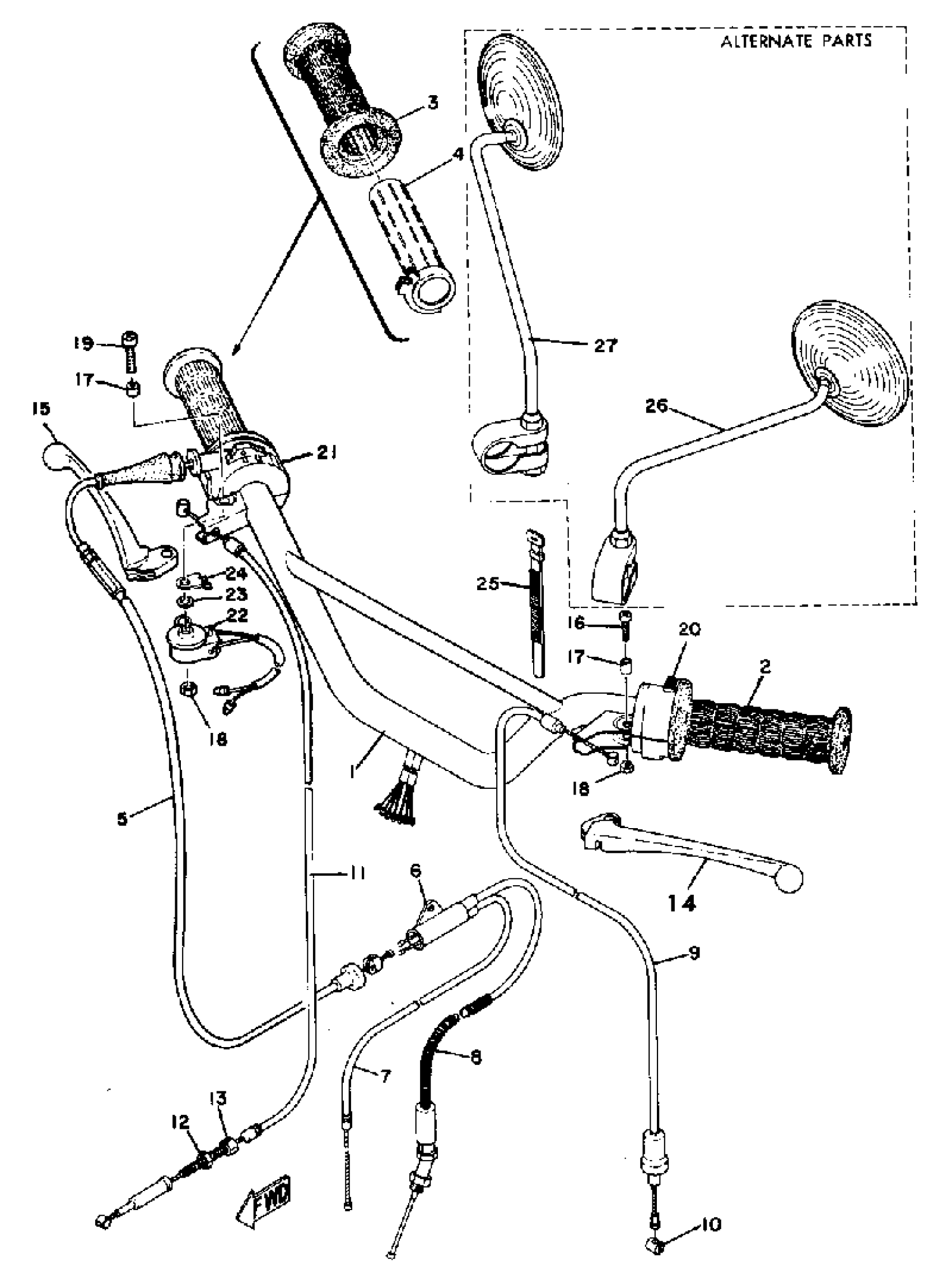

Yamaha GT80MXB (GT80MX) 1975 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

367-26111-03-00

Unavailable

2

GRIP (L.H.)

462-26241-00-00

Unavailable

3

GRIP (R.H.)

462-26242-00-00

Unavailable

4

TUBE, THROTTLE GUIDE

434-26243-12-00

$27.99

5

CABLE, THROTTLE 1

462-26311-00-00

Unavailable

6

CONNECTER, CABLE

4U1-26261-00-00

$39.99

7

CABLE,THROTTLE 2

336-26312-00-00

Unavailable

8

CABLE, PUMP

367-26321-02-00

Unavailable

9

WIRE, CLUTCH

367-26335-02-00

$61.99

10

END, WIRE

164-26363-00-00

$7.99

11

CABLE, BRAKE

367-26341-01-00

Unavailable

12

NUT (109-26344-00)

90179-06143-00

$8.49

13

BOLT (109-26345-00)

90123-06011-00

$16.99

14

LEVER (L.H)

137-83912-02-38

Unavailable

15

LEVER (R.H)

2N3-83922-00-00

$30.99

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

17

COLLAR 288839130000

90387-05383-00

Unavailable

18

NUT, HEXAGON (663)

95380-05600-00

Unavailable

19

SCREW,PAN HEAD

90157-05055-00

Unavailable

20

SWITCH, HANDLE 3

393-83973-00-00

Unavailable

21

SWITCH, HANDLE 1

462-83976-01-00

Unavailable

22

FRONT STOP SWITCH ASSY

232-83980-30-00

Unavailable

23

WASHER PLATE 338839440000

90201-05027-00

Unavailable

24

BRKT, FRT STOP SWCH

(338-83983-00-00)

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

Unavailable

26

SAMPLE NOT USA

(253-26290-20-00)

Unavailable

27

MIRROR ASY

253-26290-00-00

Unavailable
