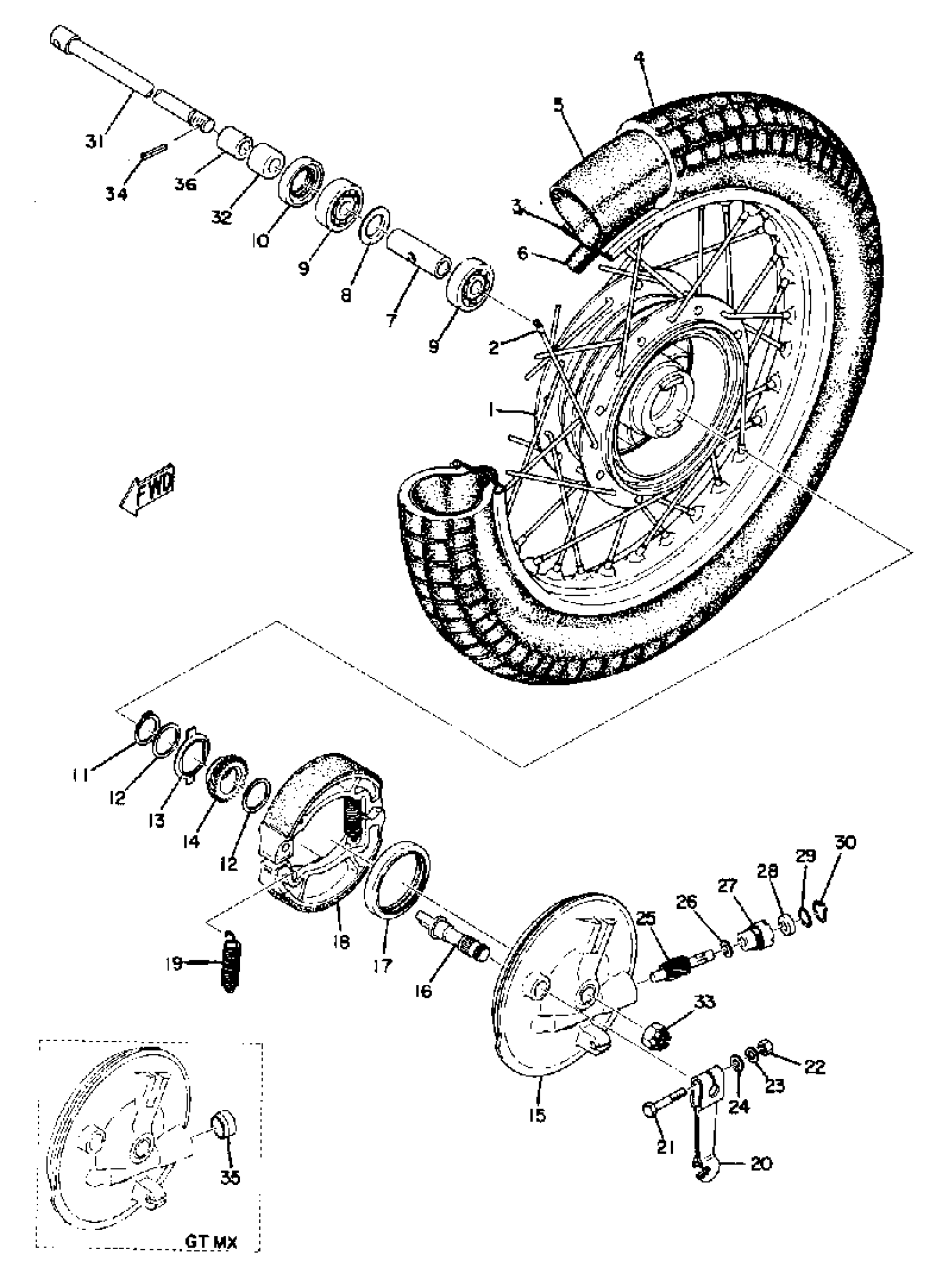

Yamaha GT80MXB (GT80MX) 1975 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(367-25111-00-Y8)

Unavailable

2

SPOKE SET, FRONT

288-25104-01-00

Unavailable

3

RIM 1.40X15

94414-15058-00

Unavailable

4

250-15 IRC TRIALS

94125-15478-00

Unavailable

5

TUBE (1K8)

94225-15103-00

$30.99

6

BAND, RIM(3DM)

94313-15154-00

$8.49

7

SPACER, BEARING

90560-10303-00

Unavailable

8

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

9

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

10

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

11

CIRCLIP(1AR)

99009-20400-00

$8.49

12

WASHER, PLATE 1832514700

90201-20269-00

$7.49

13

CLUTCH, METER

183-25149-00-00

$6.99

14

NO LONGER AVAILABLE

368-25135-00-00

Unavailable

15

BRAKE SHOE PLT ASSEMBLY

393-25016-10-35

Unavailable

16

CAM SHAFT

122-25351-02-00

Unavailable

17

SEAL,OIL

93105-47007-00

Unavailable

18

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

19

SPRING, TENSION (566).

90506-16150-00

Unavailable

20

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

21

BOLT, HEXAGON

97017-06030-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

25

GEAR, METER

(368-25138-00-00)

Unavailable

26

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

27

BUSHING

109-25136-00-00

Unavailable

28

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

29

O-RING (26H)

93210-14579-00

Unavailable

30

RING, STOP

102-25137-00-00

Unavailable

31

AXLE, WHEEL

99999-02188-00

Unavailable

32

COLLAR

90387-10077-00

Unavailable

33

NUT 3532518200

90171-10004-00

Unavailable

34

PIN, COTTER

91490-20025-00

Unavailable

35

PLUG 288251390000

90338-18014-00

Unavailable

36

COLLAR

90387-10264-00

Unavailable
