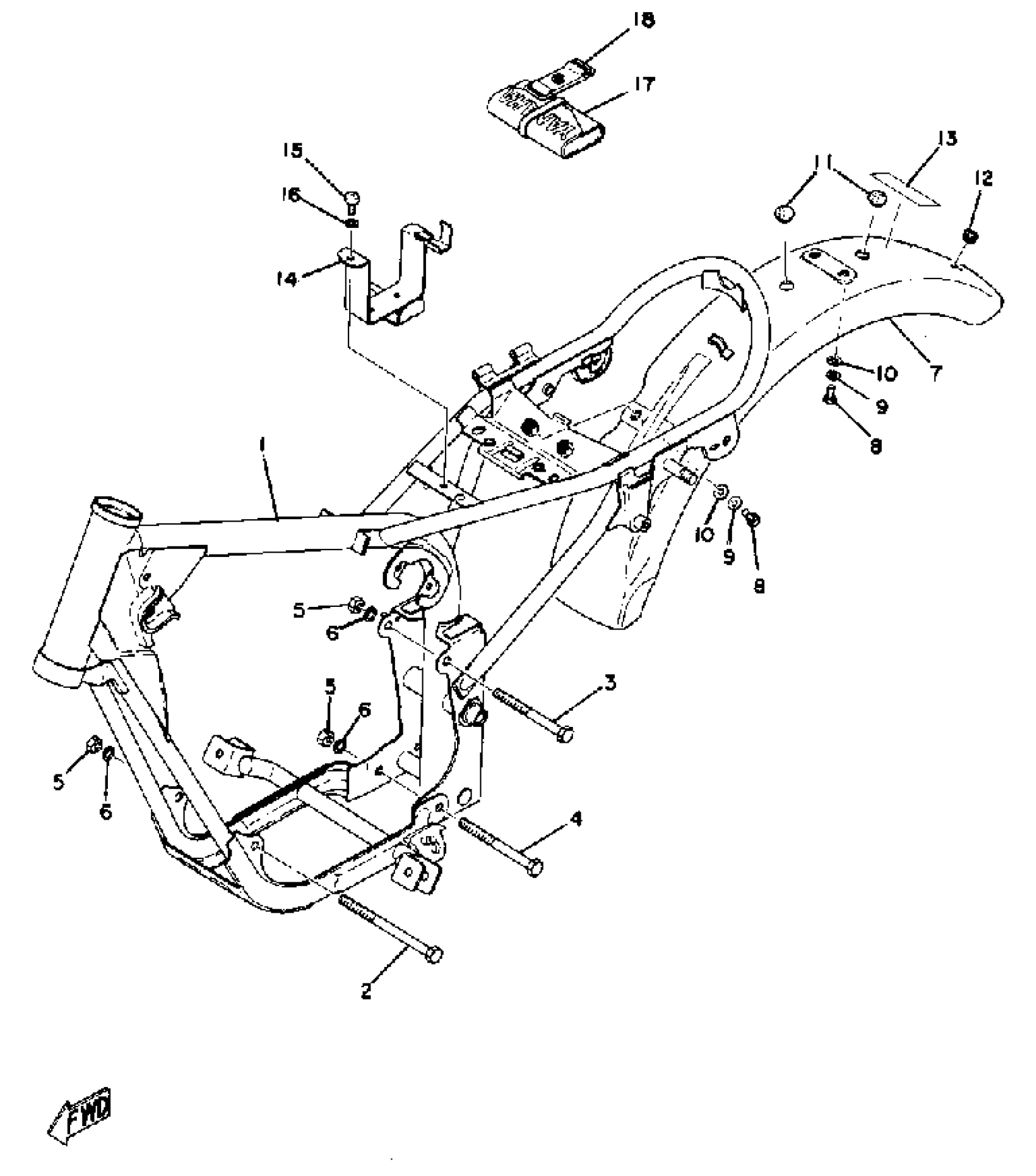

Yamaha GT80MXB (GT80MX) 1975 FRAME - REAR FENDER Diagram

#

Description
Price

1

FRAME

(367-21110-00-33)

Unavailable

2

BOLT, FLANGE(4EM)

95817-08120-00

$4.99

3

BOLT, FLANGE

95817-08090-00

$4.77

3

BOLT (97321-08090)

97023-08090-00

Unavailable

4

BOLT, FLANGE(8BT)

95817-08095-00

$4.24

5

NUT(6L2)

95333-08600-00

$2.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

FENDER, REAR

(367-21610-00-20)

Unavailable

7

FENDER, REAR

(367-21610-01-36)

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

GROMMET

214-84154-60-00

Unavailable

12

PLUG 288833190000

90338-07043-00

$8.49

13

LABEL, SAFETY

(338-21659-00-00)

Unavailable

14

BOX, BATT.

368-21240-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

TOOL KIT

(207-28100-10-00)

Unavailable

17

TOOL KIT

2U2-W2810-00-00

Unavailable

17

TOOL KIT

(353-28100-10-00)

Unavailable

18

BAND, TOOL

21V-21376-00-00

Unavailable
