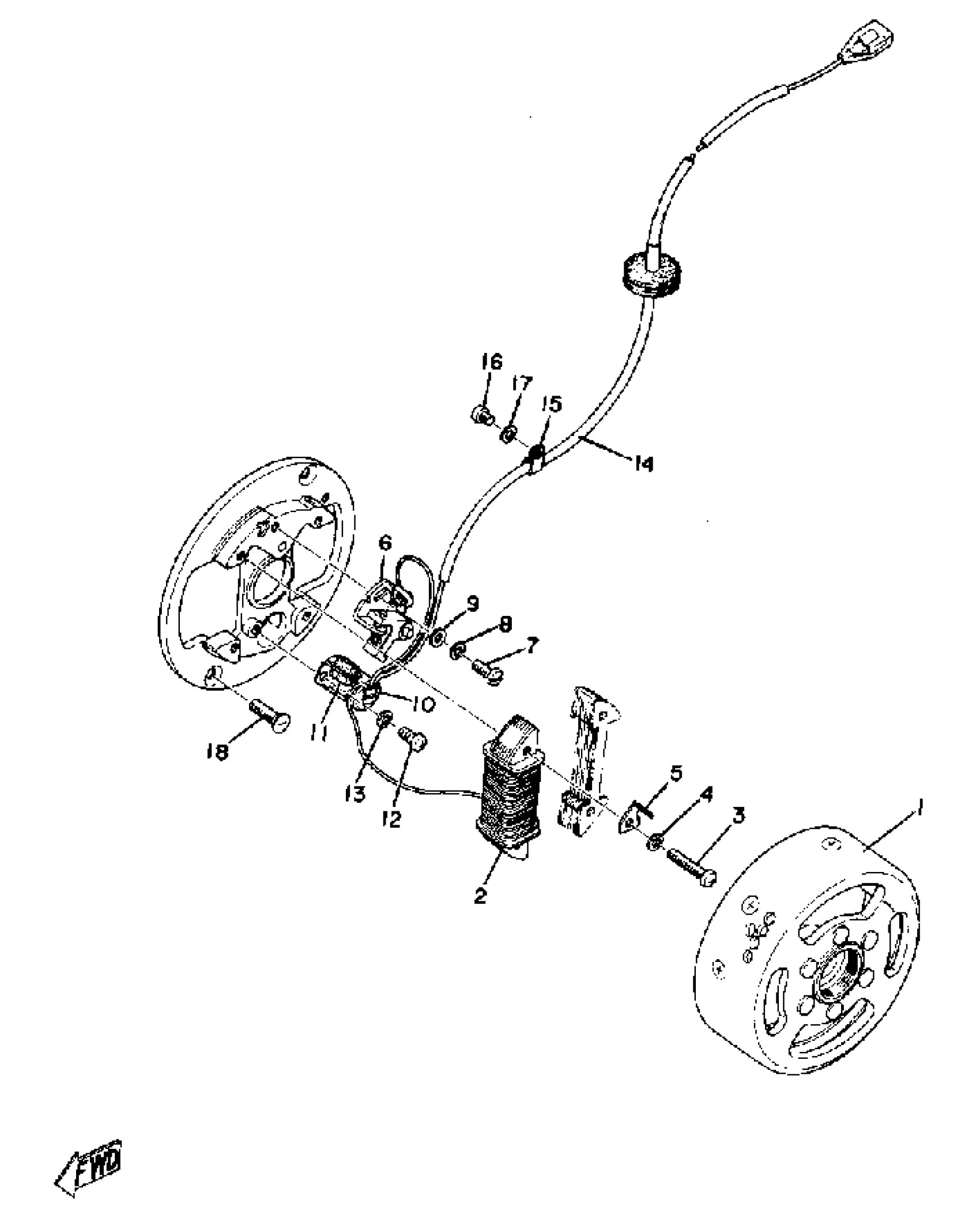

Yamaha GT80MXB (GT80MX) 1975 FLYWHEEL MAGNETO (GTMXB) Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY (367-81300-21-00)

1T0-81300-20-00

Unavailable

1

ROTOR ASSEMBLY

(1T0-81350-20-00)

Unavailable

2

. COIL, SOURCE

207-81312-21-00

Unavailable

3

SCREW, PAN HEAD

98517-04025-00

Unavailable

4

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

5

. PLATE, TIMING

296-81332-20-00

Unavailable

6

. CONTACT BRKR ASSEMBLY

1V1-81321-90-00

Unavailable

7

SCREW, PAN HEAD

110-81346-21-00

$5.49

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

. CONDENSER

296-81325-90-00

Unavailable

11

. LUBRICATOR

116-81331-20-00

Unavailable

12

SCREW, PAN HEAD

110-81346-21-00

$5.49

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

LEAD WIRE ASSEMBLY

(367-81315-20-00)

Unavailable

15

CLAMP

(367-81328-20-00)

Unavailable

16

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

SCREW, FLAT

98707-05016-00

Unavailable

19

BASE, MAGNETO

520-81309-20-00

Unavailable
