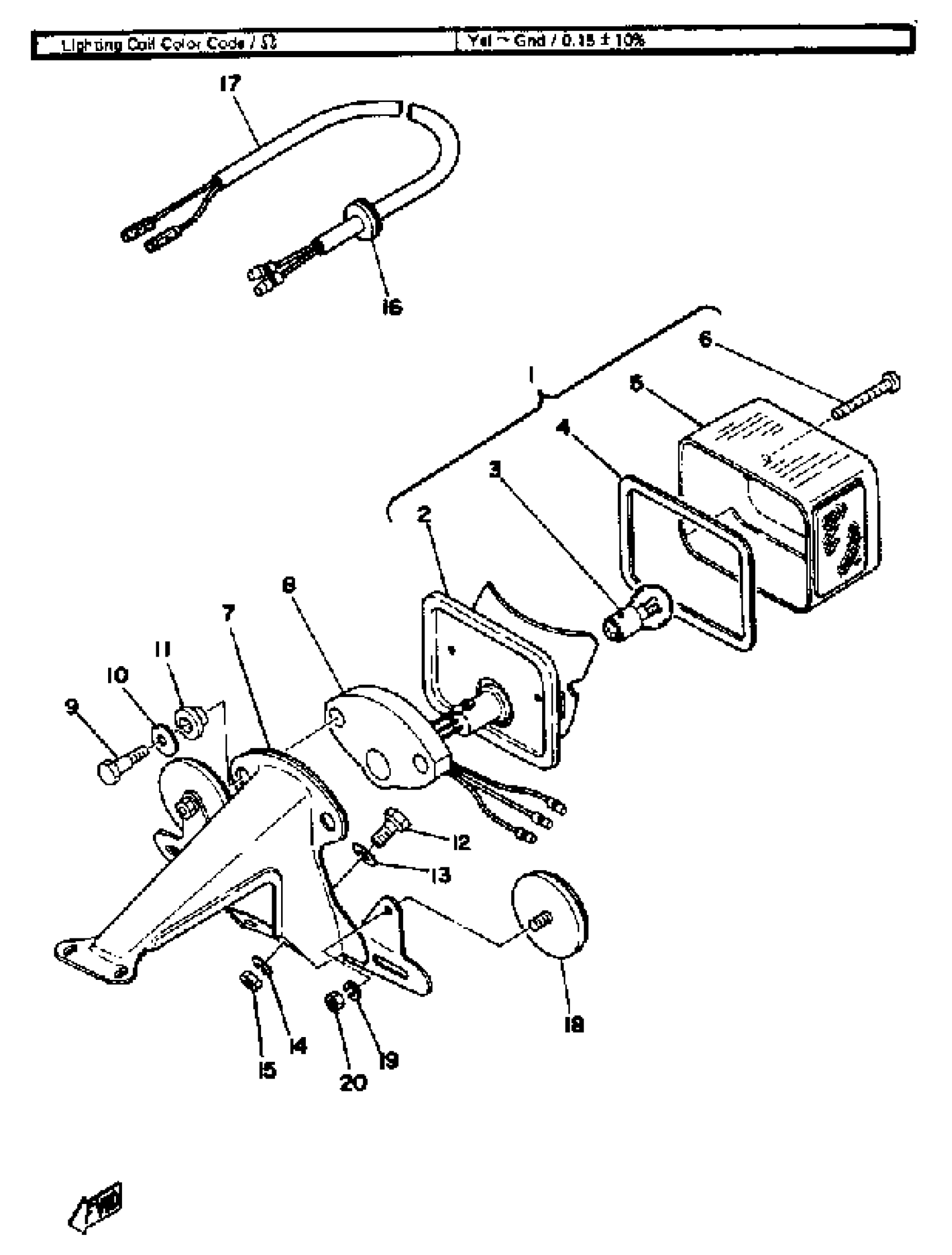

Yamaha GT80E (GT80) 1978 TAILLIGHT GT80E - GT80E~009161 - GT80F Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

Unavailable

1

. TAILLIGHT UNIT ASSEMBLY

2F4-84510-60-00

Unavailable

2

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

2

. TAILLIGHT UNIT ASSEMBLY

2F4-84510-60-00

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

5

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

6

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

7

BRACKET, LICENCE

(2F4-84551-60-33)

Unavailable

8

SEAT, BASE

1T2-84512-60-00

Unavailable

9

SCREW

1T2-84526-60-00

Unavailable

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

DAMPER

1M1-84527-60-00

$8.99

12

BOLT (661)

97013-06012-00

$5.60

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

GROMMET 152845180000

90480-12013-00

Unavailable

17

CORD, TAILLIGHT

(2F4-84517-00-00)

Unavailable

18

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

NUT, HEXAGON (663)

95380-05600-00

Unavailable
