1978 Yamaha GT80 (GT80E) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1978 Yamaha GT80 (GT80E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

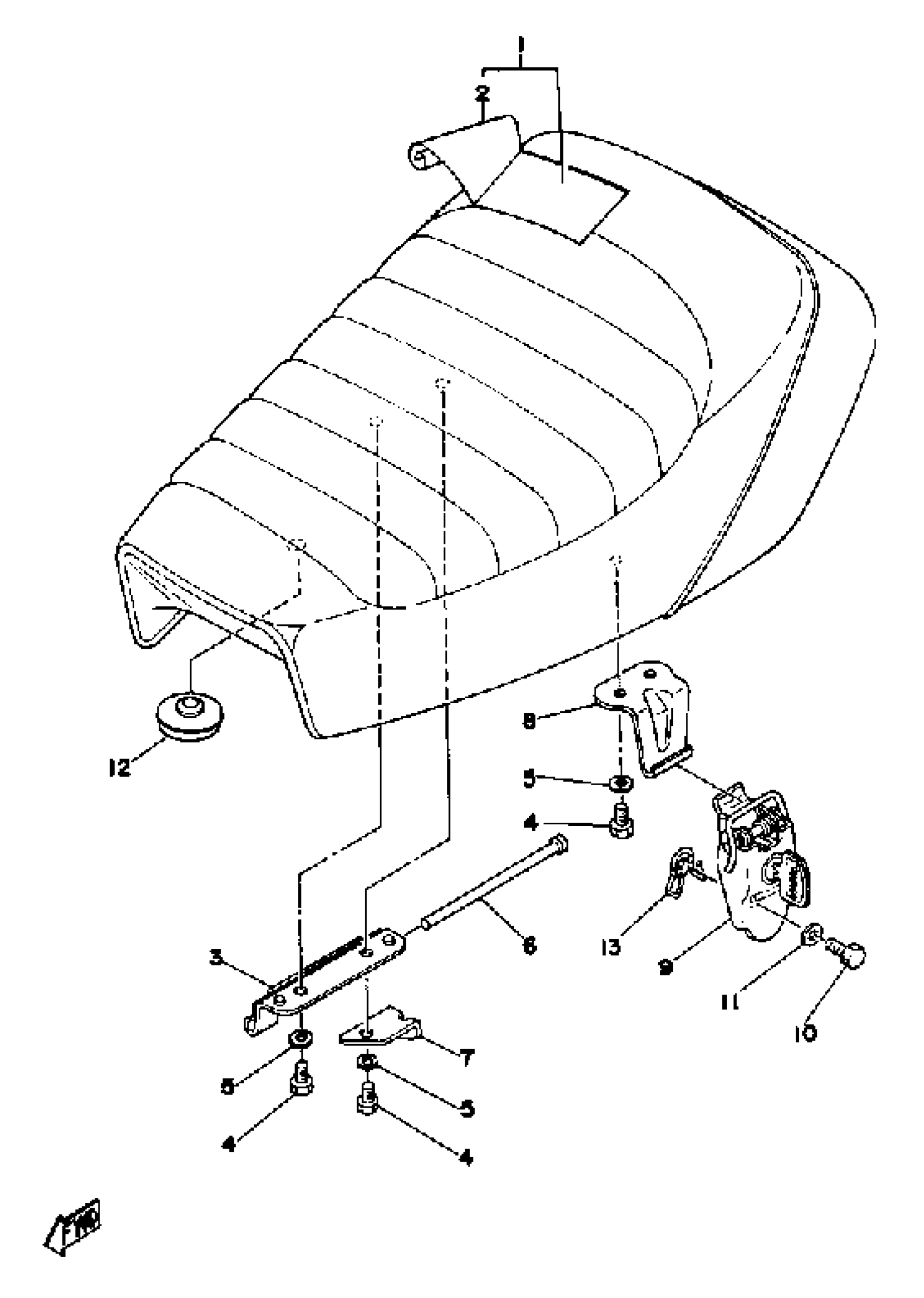

1978 Yamaha GT80 (GT80E) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLY

2A3-W2473-00-00

1
Out of stock

2

. COVER, SM-DBL SEAT

2A3-24771-00-00

1
Out of stock

3

HINGE, SEAT

353-24726-00-00

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

PIN

1K8-24774-00-00

1
Out of stock

7

STOPPER

374-24768-00-00

1
Out of stock

8

BRACKET, SEAT

278-24728-00-00

1
Out of stock

9

SEAT LEVER ASSY

1K8-24705-00-00

—

$77.71

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

12

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

13

HOOK, HELMET

341-24818-02-00

1
Out of stock
