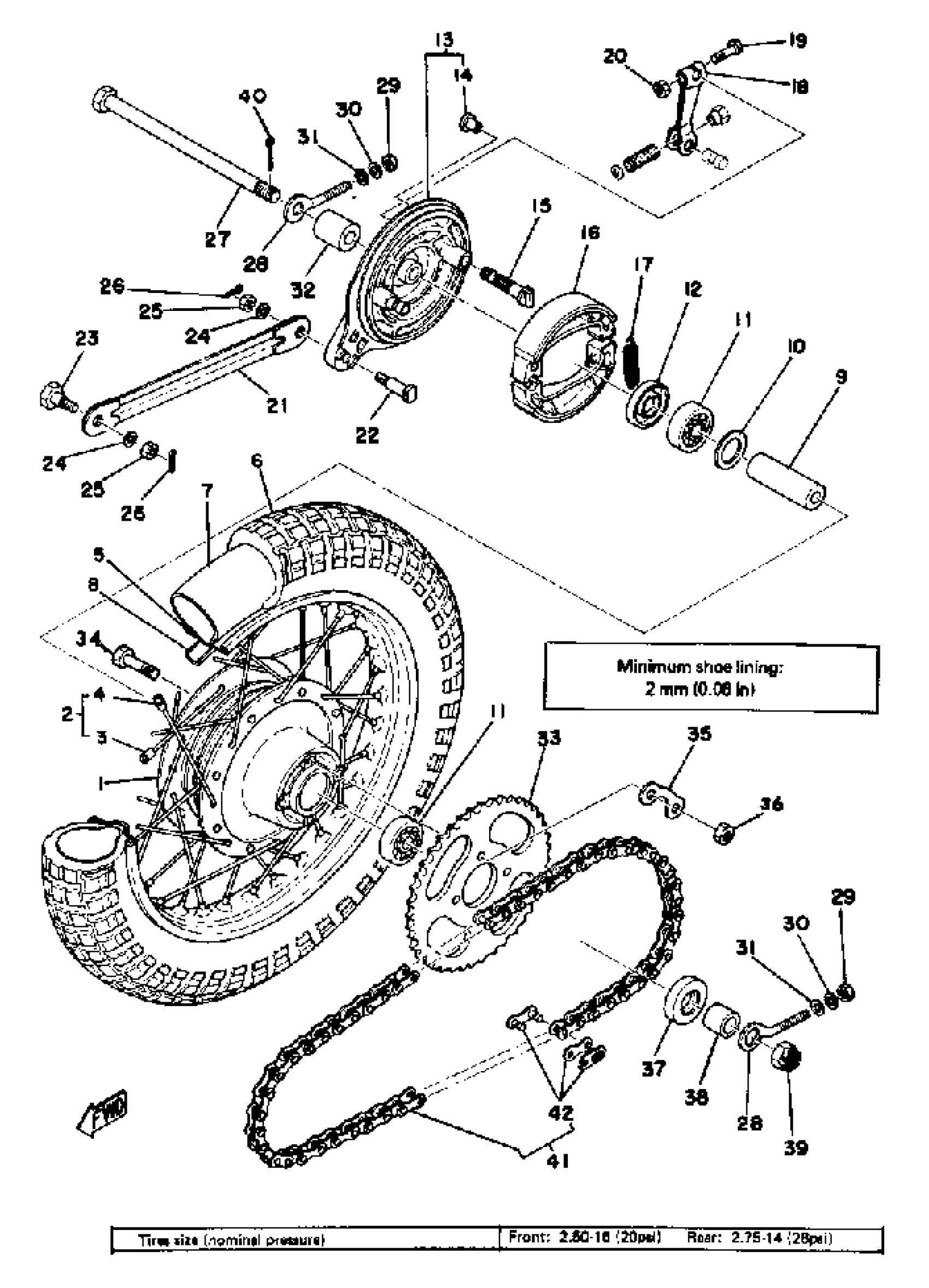

Yamaha GT80E (GT80) 1978 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(288-25311-01-Y8)

Unavailable

2

SPOKE SET, REAR

367-25304-00-00

Unavailable

3

SPOKE SET, INNER 2

(367-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

367-25397-90-00

Unavailable

5

RIM 1.40X14

94414-14077-00

Unavailable

6

275-14 IRC TRIALS

94127-14477-00

Unavailable

7

TUBE

94227-14102-00

$21.99

8

BAND, RIM (1K8)

94327-14076-00

$10.49

9

SPACER (1U1)

90560-12170-00

$17.99

10

FLANGE, SPACER

109-25315-00-00

$7.99

11

BRG.

93306-30101-00

$36.99

12

OIL SEAL(3TU)

93106-20033-00

$13.49

13

BRAKE SHOE PLT ASSEMBLY

355-25026-00-Y8

Unavailable

14

GROMMET (397)

90480-10068-00

$8.49

15

CAMSHAFT

4GL-25351-00-00

$68.99

16

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

17

SPRING, TENSION (566).

90506-16150-00

Unavailable

18

LEVER, CAM SHAFT

538-25355-00-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

BAR, TENSION

353-25371-00-00

Unavailable

22

BOLT 1022537300

90109-08183-00

Unavailable

23

BOLT (183-25378-00)

90109-08368-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable

27

AXLE, WHEEL

367-25381-01-00

Unavailable

28

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

32

COLLAR 102253830000

90387-12412-00

Unavailable

33

SPROCKET,DRIVN 39T

288-25439-10-00

Unavailable

33

SPROCKET, DRIVEN (41T)

5J1-25441-20-00

Unavailable

34

BOLT 109254110000

90109-08319-00

Unavailable

35

WASHER

2AL-25412-00-00

Unavailable

36

NUT, HEXAGON (509)

90170-08158-00

Unavailable

37

OIL SEAL (21X37X7-102)

93104-21016-00

Unavailable

38

COLLAR (40E)

90387-120F9-00

Unavailable

39

NUT CASTLE(481)

90171-12005-00

Unavailable

40

PIN, COTTER

91490-30030-00

Unavailable

41

CHAIN, DRIVE

9Y580-52095-00

Unavailable

42

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
