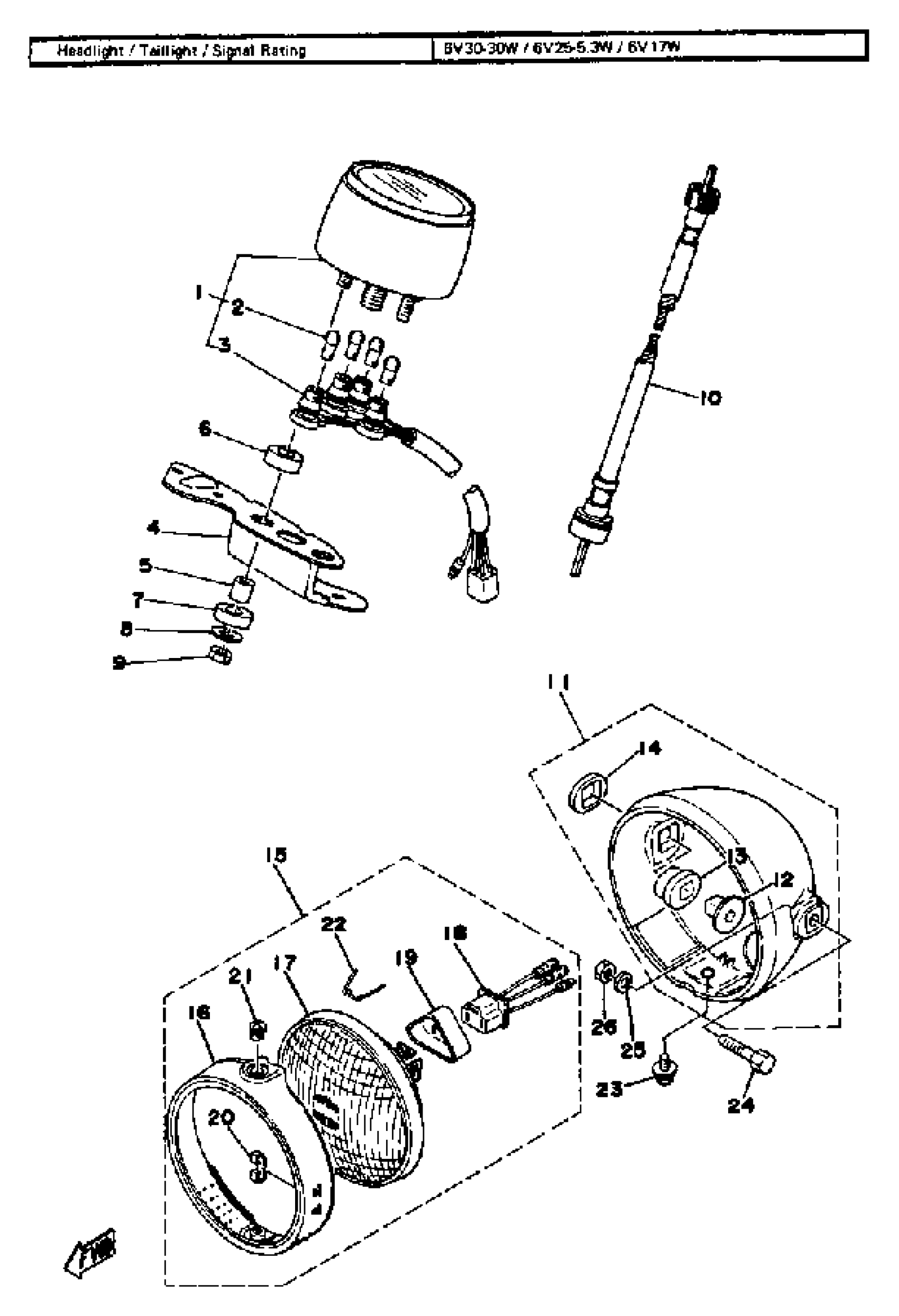

Yamaha GT80E (GT80) 1978 HEADLIGHT - METER GT80E - GT80E~009161 - GT80F Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(2F4-83510-61-00)

Unavailable

2

BULB,(6V3W)

122-83516-10-00

Unavailable

3

SOCKET CORD ASSEMBLY

(2F4-83520-00-00)

Unavailable

4

BRACKET, METER

(2F4-83519-00-98)

Unavailable

5

COLLAR

355-83522-00-00

Unavailable

6

DAMPER

(1M3-83513-00-00)

Unavailable

7

DAMPER 2

355-83526-00-00

$3.43

8

WASHER, PLATE (371)

90201-06412-00

$5.60

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

SPEEDOMETER CABLE

2A1-83550-10-00

Unavailable

11

BODY ASSEMBLY, HEADLIGHT (1M1-84130-60-98)

1M1-84130-60-00

Unavailable

12

COLLAR, BODY FITTING

498-84145-60-00

$6.99

13

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

14

DAMPER

1M1-84164-60-00

$25.99

16

RING, RETAINING

3J0-84195-60-00

Unavailable

17

. LENS ASSEMBLY

498-84120-61-00

Unavailable

18

SOCKET

371-84312-60-00

Unavailable

19

. COVER, SOCKET

341-84397-61-00

Unavailable

20

. SPACER

498-84128-60-00

Unavailable

21

COLLAR

1M1-84133-60-00

Unavailable

22

SPRING, REFLECTOR SET

1M1-84124-60-00

Unavailable

23

BOLT, HEXAGON

1M1-84137-60-00

Unavailable

24

BOLT

97013-08035-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable
