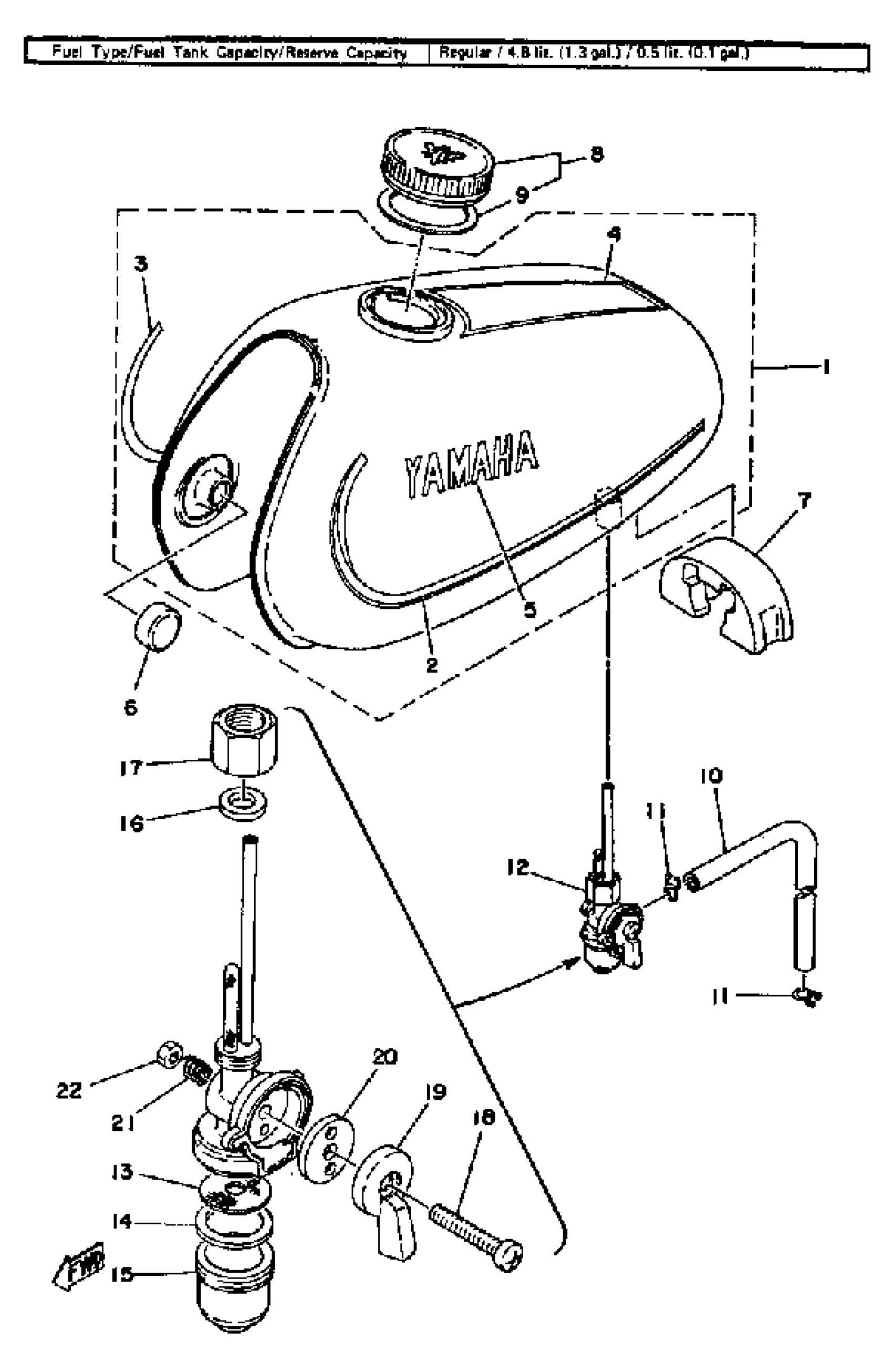

Yamaha GT80E (GT80) 1978 FUEL TANK GT80F Diagram

#

Description
Price

1

FUEL TANK

(367-24110-Y0-W1)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2F4-24244-01-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(2F4-24245-01-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(2F4-24246-01-00)

Unavailable

5

EMBLEM, YAMAHA

99244-00120-00

$16.99

6

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

7

DAMPER, LOCATING

353-24182-00-00

$27.99

8

CAP ASSY

122-24610-01-00

$22.99

8

CAP ASSY

127-24650-10-00

Unavailable

9

PACKING, CAP

122-24612-01-00

$8.99

10

HOSE (L420)

90445-092K1-00

$12.49

11

CLIP 101235600

90467-08003-00

$10.49

12

FUEL COCK ASSY

367-24500-04-00

Unavailable

13

. NET, FILTER 2

355-24515-00-00

Unavailable

14

GASKET

102-24522-02-00

$5.49

15

. CUP, FILTER

122-24521-00-00

Unavailable

16

GASKET, NUT

122-24532-00-00

Unavailable

17

. NUT

603-24531-01-00

Unavailable

18

SCREW, PAN HEAD

98517-05030-00

Unavailable

19

LEVER, COCK

(355-24524-01-00)

Unavailable

20

VALVE

355-24523-00-00

Unavailable

21

WASHER, WAVE

(355-24518-00-00)

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable
