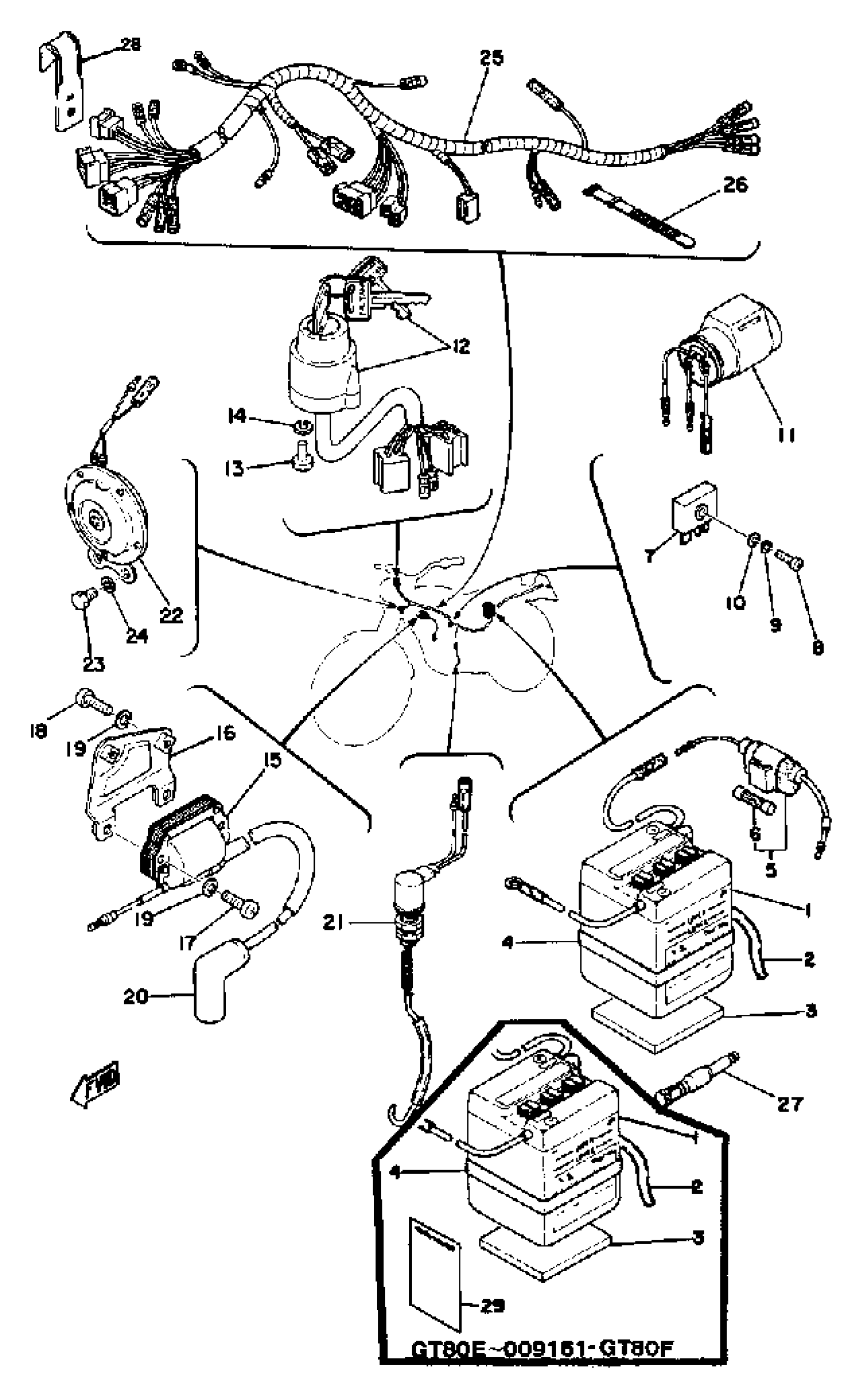

Yamaha GT80E (GT80) 1978 ELECTRICAL GT80E - GT80E~009161 - GT80F Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

HOSE

90445-08172-00

Unavailable

3

DAMPER, TANK LOCATING

583-24182-00-00

$9.99

4

BAND, BATTERY

(308-82124-00-00)

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

RECTIFIER ASSY

353-81970-M2-00

Unavailable

8

SCREW, PAN HEAD

98580-05020-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

. WASHER, PLAIN

92990-05200-00

Unavailable

11

FLASHER RELAY ASSEMBLY

2F7-83350-60-00

Unavailable

12

MAIN SWITCH ASSEMBLY (2E1-82508-50)

2E1-82508-20-00

Unavailable

13

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

IGNITION COIL ASSY

355-82310-40-00

Unavailable

16

BRACKET, IGN COIL

375-82316-01-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

PLUG CAP ASSY

56J-82370-00-00

Unavailable

21

STOP SWITCH ASSEMBLY

353-82530-03-00

Unavailable

22

HORN

2A7-83371-10-00

Unavailable

23

BOLT (661)

97013-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WIRE HARNESS ASSEMBLY

(2F4-82590-50-00)

Unavailable

26

BAND, SWITCH CORD

437-83936-11-00

Unavailable

27

DIODE ASSY

517-81980-A0-00

Unavailable

28

CLAMP

(2A3-82594-00-00)

Unavailable

29

LABEL, BATTERY

40A-82141-G0-00

Unavailable
