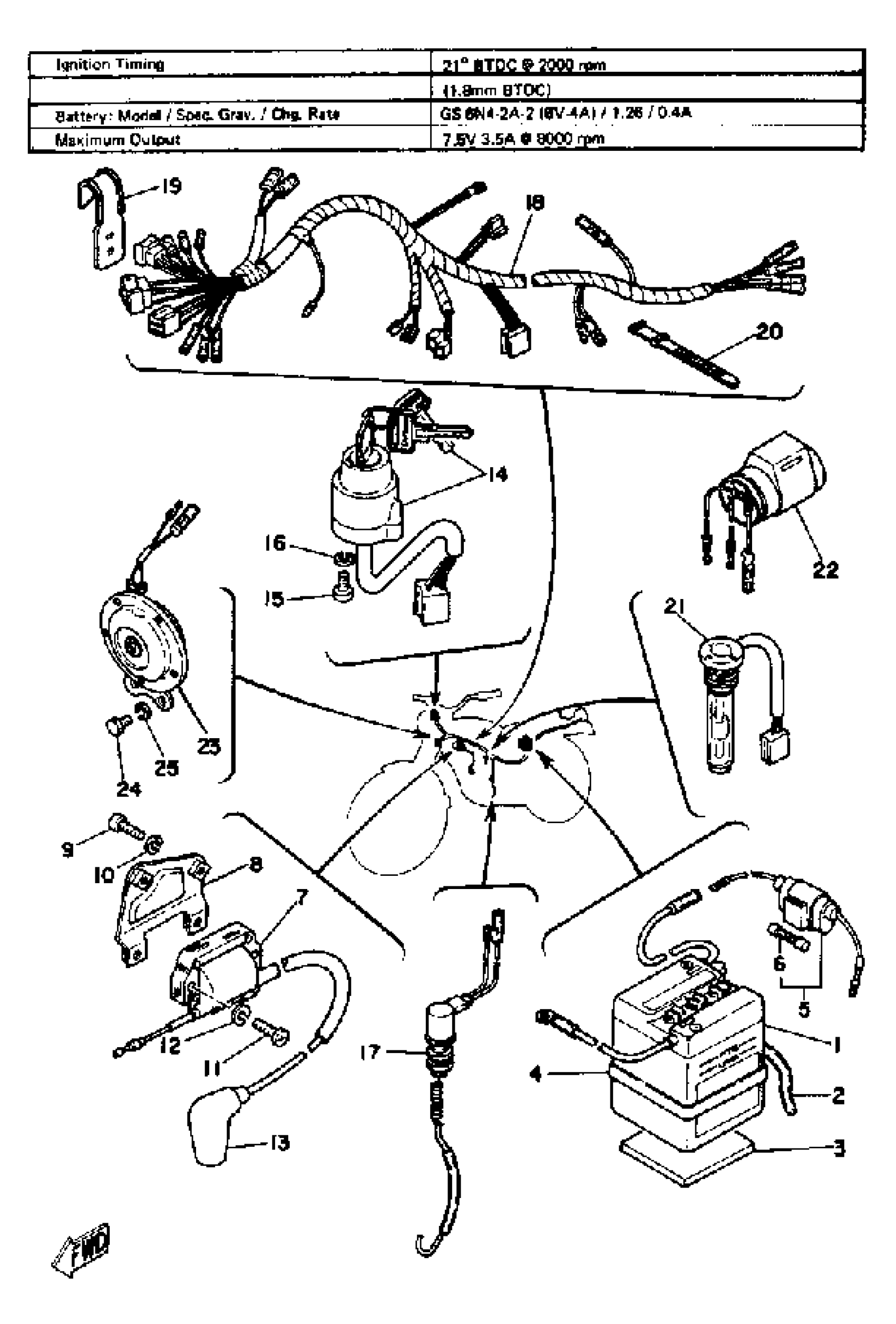

Yamaha GT80E (GT80) 1978 ELECTRICAL 1 GT80G Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

HOSE

90445-08172-00

Unavailable

3

DAMPER, TANK LOCATING

583-24182-00-00

$9.99

4

BAND, BATTERY

(308-82124-00-00)

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

IGNITION COIL ASSY

355-82310-40-00

Unavailable

8

BRACKET, IGN COIL

375-82316-01-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

WASHER, SPRING

92995-06100-00

Unavailable

13

PLUG CAP ASSY

56J-82370-00-00

$64.99

14

MAIN SWITCH ASSY

53C-82510-01-00

$62.99

15

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

STOP SWITCH ASSEMBLY

353-82530-03-00

Unavailable

18

WIRE HARNESS ASSEMBLY

(3J8-82590-50-00)

Unavailable

19

CLAMP

(2A3-82594-00-00)

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

OIL LVL GAUGE ASSEMBLY

2E7-85720-02-00

Unavailable

22

FLASHER RELAY ASSEMBLY

2F7-83350-60-00

Unavailable

23

HORN

2A7-83371-10-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable
