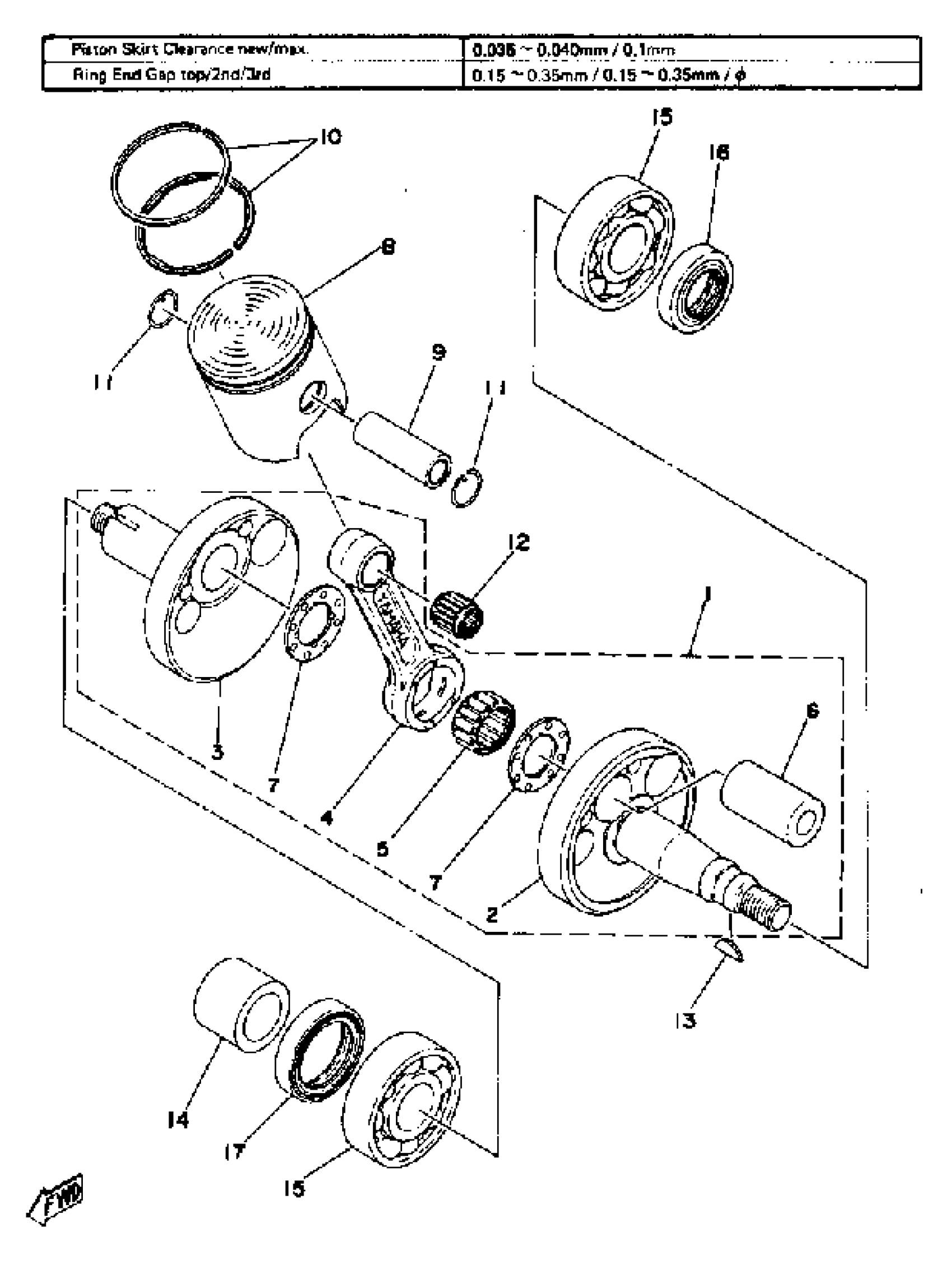

Yamaha GT80E (GT80) 1978 CRANK - PISTON GT80G Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

Unavailable

2

. CRANK 1

598-11412-00-00

Unavailable

3

CRANK 2

(598-11422-00-00)

Unavailable

4

ROD, CONNECTING

3R1-11651-01-00

$125.99

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

PIN, CRANK 1

257-11681-10-00

$29.99

7

WASHER 132116850000

90209-18112-00

$10.49

8

PISTON STD

3J8-11631-00-96

Unavailable

8

PISTON 1 O/S 0.25

3J8-11635-00-00

Unavailable

8

PISTON 2 O/S 0.50

3J8-11636-00-00

Unavailable

8

PISTON 3 O/S 0.75

(3J8-11637-00-00)

Unavailable

8

PISTON 4 O/S 1.00

(3J8-11638-00-00)

Unavailable

9

PIN, PISTON

527-11633-00-00

$17.49

10

PISTON RINGSET STD

2A4-11610-00-00

Unavailable

10

PISTON RINGSET 1ST

2A4-11610-10-00

Unavailable

10

PISTON RINGSET 2ND

2A4-11610-20-00

Unavailable

10

PISTON RINGSET 3RD (3RD O/S)

2A4-11610-30-00

Unavailable

10

PISTON RINGSET 4TH (4TH O/S)

2A4-11610-40-00

Unavailable

11

CIRCLIP 132116340000

93450-13022-00

Unavailable

12

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

COLLAR (4Y2)

90387-205E9-00

Unavailable

15

BEARING(1GJ)

93306-20458-00

Unavailable

16

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

17

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable
