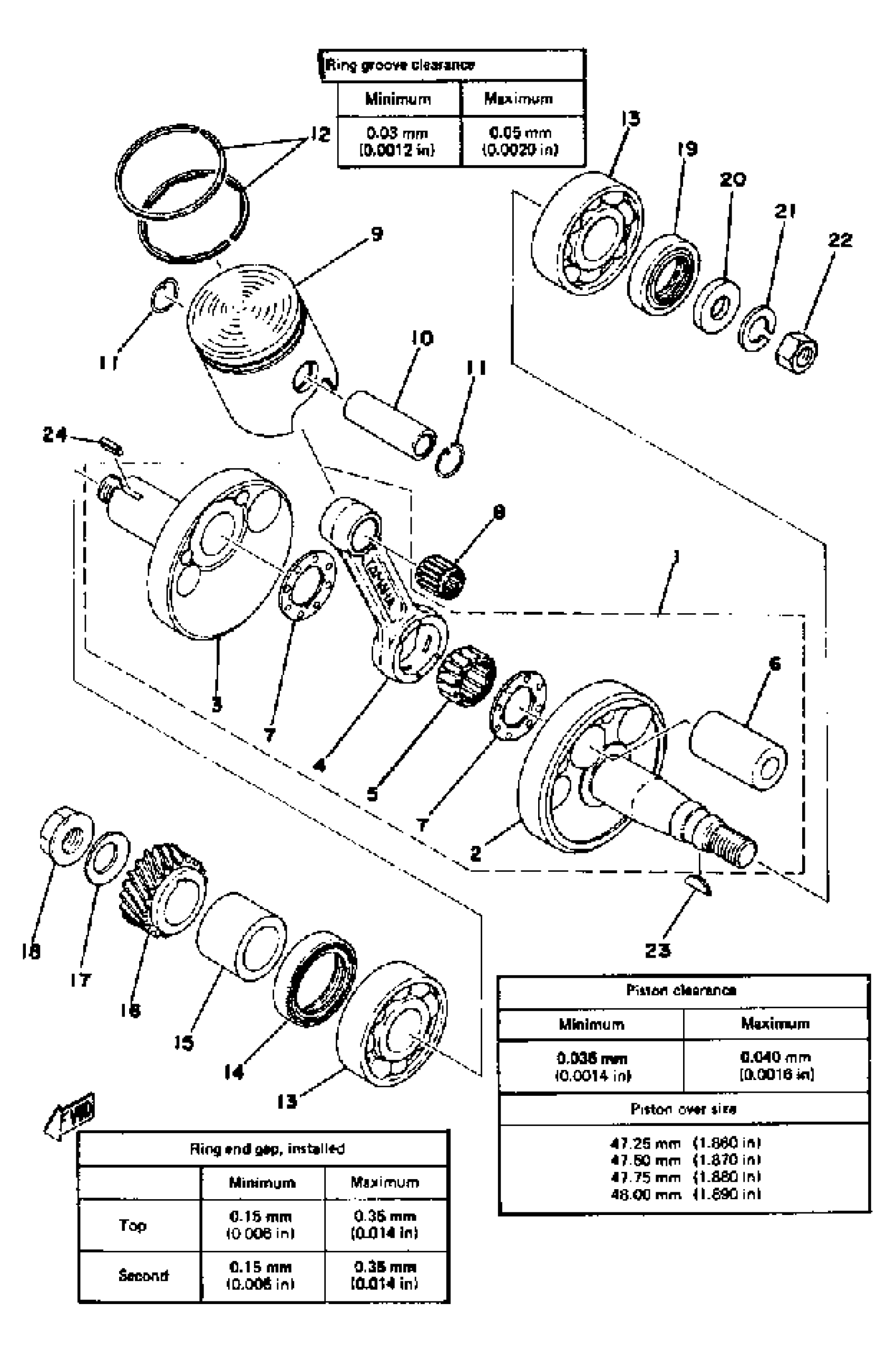

Yamaha GT80E (GT80) 1978 CRANK - PISTON GT80E - GT80E~009161 - GT80F Diagram

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

Unavailable

. CRANK 1

598-11412-00-00

Unavailable

CRANK 2

(598-11422-00-00)

Unavailable

ROD, CONNECTING

3R1-11651-01-00

$125.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

PIN, CRANK 1

257-11681-10-00

$29.99

WASHER 132116850000

90209-18112-00

$10.49

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

PISTON STD (46.96MM STD)

2F4-11631-10-96

Unavailable

PISTON 1 O/S 0.25 (47.25MM 1ST O.S.)

2F4-11635-10-00

Unavailable

PISTON 1 O/S 0.25 (47.25MM 1ST O.S.)

2F4-11635-10-00

Unavailable

PISTON 2 O/S 0.50 (47.50MM 2ND O.S.)

2F4-11636-10-00

Unavailable

PISTON 2 O/S 0.50 (47.50MM 2ND O.S.)

2F4-11636-10-00

Unavailable

PISTON 3 O/S 0.75

(2F4-11637-10-00)

Unavailable

PISTON 3 O/S 0.75

(2F4-11637-10-00)

Unavailable

PISTON 4 O/S 1.00 (48.00MM 4TH O.S.)

2F4-11638-10-00

Unavailable

PISTON 4 O/S 1.00 (48.00MM 4TH O.S.)

2F4-11638-10-00

Unavailable

PIN, PISTON

527-11633-00-00

Unavailable

CIRCLIP 132116340000

93450-13022-00

Unavailable

PISTON RING SET (STD)

367-11610-00-00

Unavailable

PISTON RINGSET 1ST

367-11610-10-00

Unavailable

PISTON RING SET (2NDO/S)

367-11610-20-00

Unavailable

PISTON RINGSET 3RD

367-11610-30-00

Unavailable

PISTON RINGSET 4TH

367-11610-40-00

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

COLLAR (4Y2)

90387-205E9-00

Unavailable

GEAR, PRI DRIVE

353-16111-01-00

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT(1EE)

90179-12659-00

Unavailable

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

WASHER (492)

90201-12535-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
