CARBURETOR GT80E - GT80E~009161 - GT80F

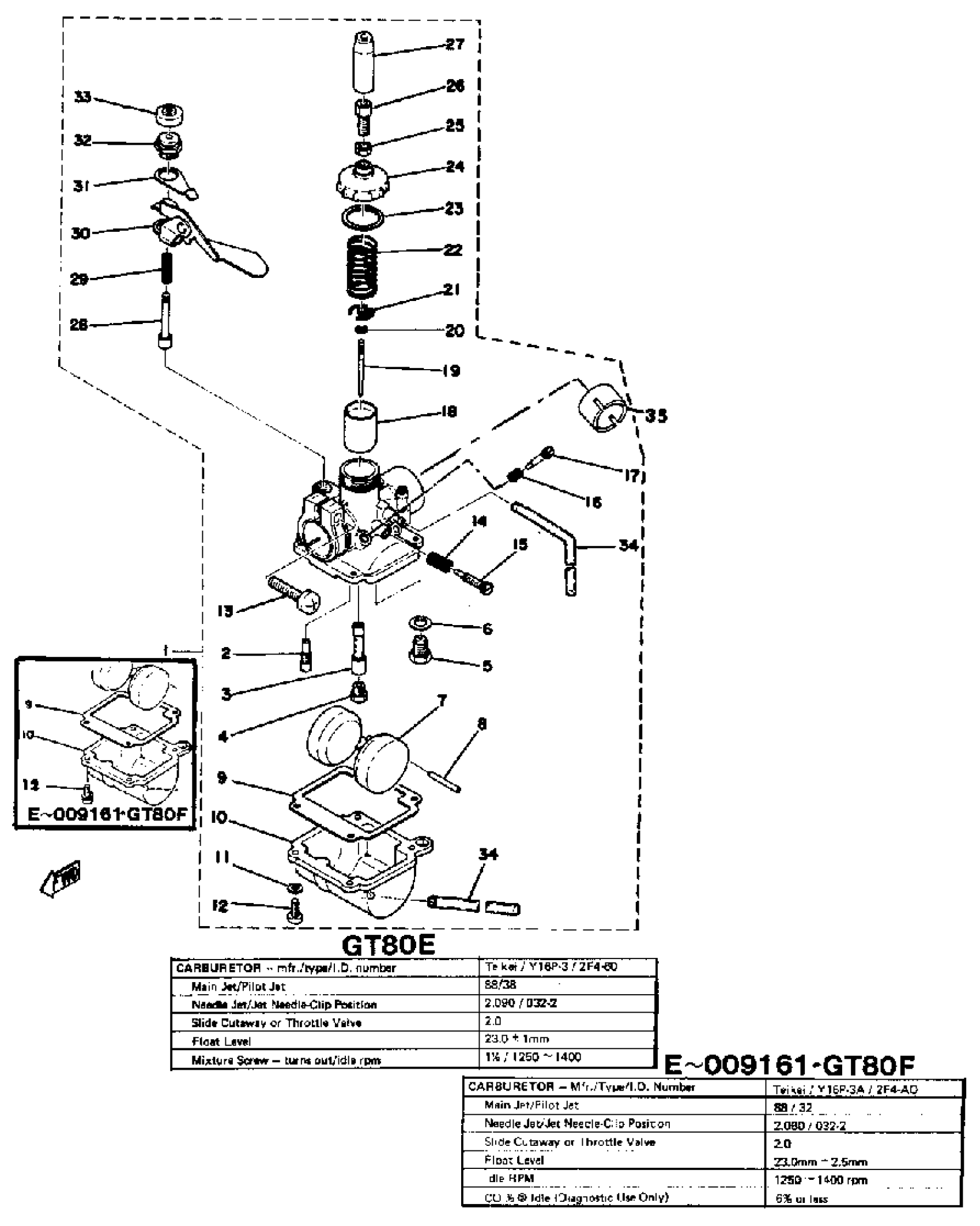

Yamaha GT80E (GT80) 1978 CARBURETOR GT80E - GT80E~009161 - GT80F Diagram
#
1
CARBURETOR ASSEMBLY 1
2F4-14301-60-00
Unavailable
1
CARBURETOR ASSEMBLY 1
2F4-14301-A0-00
Unavailable
2
JET, PILOT #32
(367-14342-16-00)
Unavailable
2
. JET, PILOT #38
367-14342-19-00
Unavailable
3
NOZZLE, MAIN
(2F4-14341-00-00)
Unavailable
3
NOZZLE, MAIN
(2F4-14341-01-00)
Unavailable
4
. JET, MAIN #86
288-14343-43-00
Unavailable
4
. JET, MAIN #88 (#88)
288-14343-44-00
Unavailable
4
. JET, MAIN #90 (#90)
288-14343-45-00
Unavailable
5
VALVE SEAT ASSY
367-14390-20-00
Unavailable
7
FLOAT
367-14385-00-00
Unavailable
10
BODY, FLOAT CHAMBER
(1G5-14381-25-00)
Unavailable
11
WASHER, PLAIN (646)
92990-04600-00
Unavailable
12
SCREW, PAN HEAD
98517-04012-00
Unavailable
12
SCREW, PAN HEAD
98511-04012-00
Unavailable
13
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
14
. SPRING, PILOT ADJUSTING
646-14212-01-00
Unavailable
15
SCREW, PILOT ADJUSTING
646-14211-02-00
Unavailable
16
. SPRING, AIR ADJUST
367-14337-00-00
Unavailable
17
. SCREW, AIR ADJUSTING
396-14323-00-00
Unavailable
18
. VALVE, THROTTLE 1
367-14312-20-00
Unavailable
19
. NEEDLE
2F4-14336-00-00
Unavailable
20
. CLIP
288-14137-00-00
Unavailable
21
. SEAT, SPRING (367-14136-00)
367-14136-02-00
Unavailable
22
. SPRING, THRTL VALVE
367-14331-00-00
Unavailable
23
. GASKET
367-14126-00-00
Unavailable
24
. CAP, MIXING CHAMBER
367-14168-00-00
Unavailable
25
NUT, CABLE ADJUSTING
85L-14161-00-00
Unavailable
26
. SCREW, CABLE ADJUSTING
288-14124-00-00
Unavailable
27
. CAP
367-14169-00-00
Unavailable
28
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
29
. SPRING, PLUNGER
367-14335-00-00
Unavailable
30
. LEVER, STARTER
367-14375-01-00
Unavailable
31
. STOPPER
367-14377-00-00
Unavailable
32
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
33
COVER, PLUNGER CAP
(367-14373-00-00)
Unavailable
34
PIPE, OVER FLOW
367-14396-00-00
Unavailable
35
GASKET
2A3-14359-00-00
Unavailable
