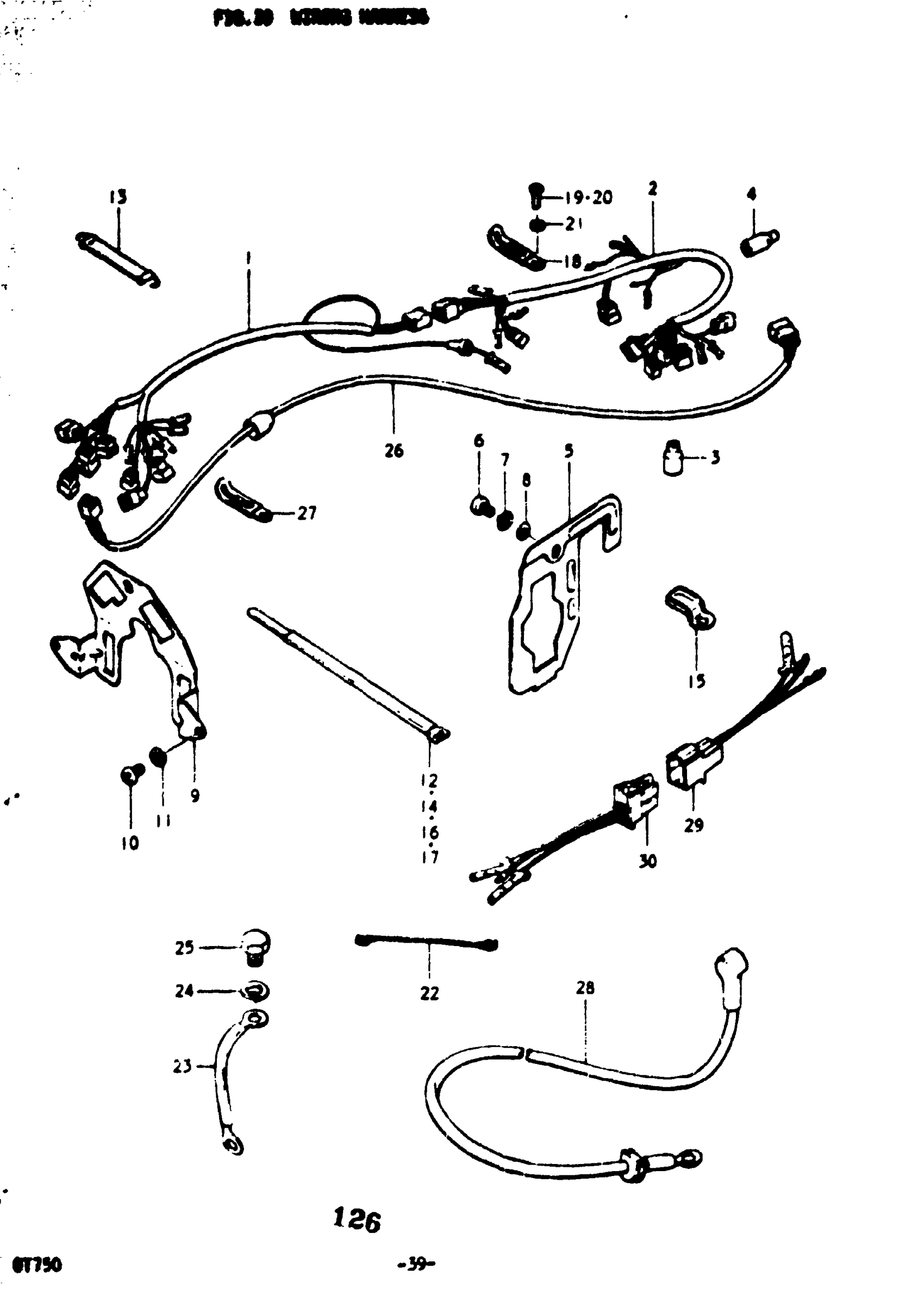

Suzuki GT750 (1977) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS, NO.1 | K

36610-31001

Unavailable

1

WIRING HARNESS, NO.1 | L; TO 36610-31201

36610-31200

Unavailable

1

WIRING HARNESS, NO.1 | M,A; ~F.NO. 66940 FROM 36610-31710TO 36610-31203

36610-31201

Unavailable

1

WIRING HARNESS, NO.1 | A; FROM 36610-31202

36610-31203

Unavailable

1

WIRING HARNESS, NO.1 | A,B

36610-31204

Unavailable

2

WIRING HARNESS, NO.2 | K; TO 36620-31003 (WITH 36851-31710) This part replaces 36620-31001.

36620-31004

Unavailable

2

WIRING HARNESS, NO.2 | L; TO 36620-31003

36620-31002

Unavailable

2

WIRING HARNESS, NO.2 | M,A; FROM 36620-31710 TO 36620-31004

36620-31003

Unavailable

2

WIRING HARNESS, NO.2 | A,B

36620-31004

Unavailable

3

BOOT | L,M,A; 00:25B; 00:25

36618-34000

Unavailable

4

BOOT | K; 00:38 This part replaces 36618-28000.

36618-30000

$9.00

5

PLATE, COUPLER | K; TO 37911-31001

37911-31000

Unavailable

5

PLATE, COUPLER | L,M,A,B

37911-31001

Unavailable

6

SCREW | K,L,M,A,B This part replaces 02111-04087.

02112-04087

$1.49

7

LOCK WASHER | K,L,M This part replaces 08321-21048.

08321-0104A

$1.84

8

WASHER | K This part replaces 08322-21048.

08322-01047

$1.86

9

PLATE, COUPLER | L,M; TO 09404-06404

36682-31200

Unavailable

10

SCREW | L,M This part replaces 02112-06108.

02112-06107

$1.49

11

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

12

CLAMP | K; FROM 09410-00014L,M,A; FROM 09410-00014B; FROM 09410-00014 This part replaces 09407-18301.

09407-18302

$2.28

13

BAND | K,L,M,A,B

09462-00056

Unavailable

14

CLAMP | K,L,M,A; FROM 09407-14401 TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

15

CLAMP, CABLE | K This part replaces 09403-06302.

09403-06301

Unavailable

16

CLAMP | K,L,M; TO 09407-18301 This part replaces 09407-14301.

09407-18302

$2.28

17

CLAMP | KL,M,A,B This part replaces 09407-11302.

09407-18302

$2.28

18

CLAMP(L:80) | L,MA,B This part replaces 09404-06404.

09404-06036

$1.74

18

CLAMP | B This part replaces 09404-06402.

09404-06039

$1.74

19

SCREW | L,MAB This part replaces 02112-06108.

02112-06107

$1.49

20

SCREW | B This part replaces 02112-06128.

02112-06127

$1.84

21

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

22

LEAD WIRE, ENGINE (-) | L,M,A,B This part replaces 36852-26600.

36851-02331

Unavailable

23

LEAD WIRE, ENGINE GROUND | K,L,M,A; L:165 TO 36864-31001

36864-31000

Unavailable

23

LEAD WIRE, ENGINE GROUND | B; L:135

36864-31001

Unavailable

24

.LOCK WASHER | K,L,M,A This part replaces 08321-21088.

08321-01087

$2.13

25

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

26

LEAD WIRE, GEAR SHIFT | L,M,A,B

36660-31200

Unavailable

27

CLAMP | L,M,A,B This part replaces 09404-08402.

09404-08420

$3.16

28

LEAD WIRE, STARTING MOTOR | K,L,M,A,B

36863-31000

Unavailable

29

LEAD WIRE | L

36851-31700

Unavailable

30

LEAD WIRE | K

36851-31710

Unavailable
