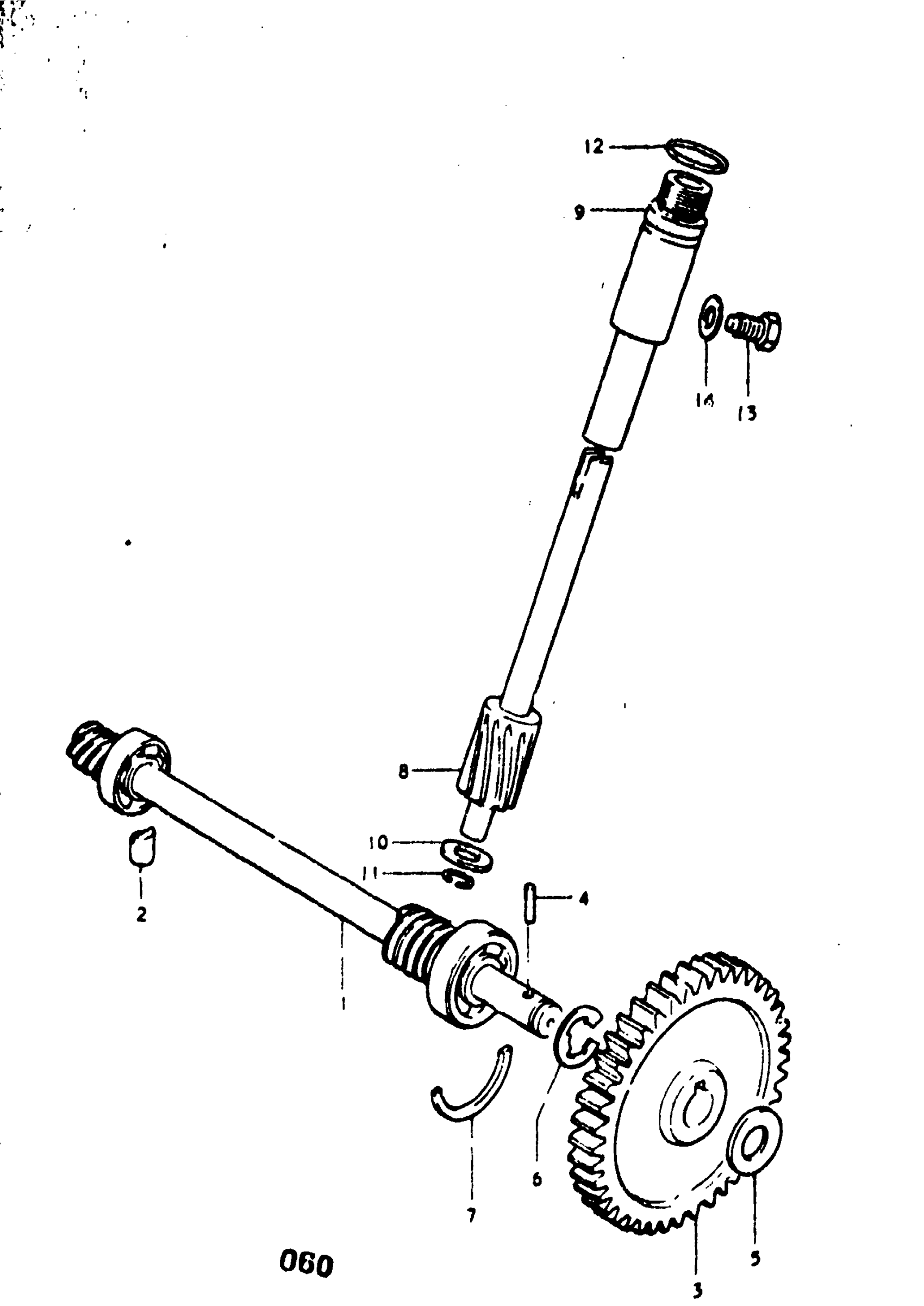

Suzuki GT750 (1977) WATER PUMP DRIVE SHAFT Diagram

#

Description
Price

1

SHAFT, DRIVE | K,L,M,A,B

17510-31000

Unavailable

2

PIN | K,L,M,A,B

09209-07023

Unavailable

3

GEAR, WATER PUMP DRIVEN | K,L,M,A; ~F.NO.66847 TO 17522-31031 This part replaces 17522-31030.

17522-31031

Unavailable

3

GEAR, WATER PUMP DRIVEN | A,B

17522-31031

Unavailable

4

PIN | K,L,M,A,B

09261-03006

Unavailable

5

WASHER, CLUTCH RELEASE | K,L,M,A,B; 10x20x1 This part replaces 08211-10201.

09181-10195

$1.99

6

E-RING, BUSH | KL,M,A,B This part replaces 08332-11098.

08332-1109A

$1.80

7

RING | K,L,M,A,B

09390-30002

Unavailable

8

GEAR, TACHOMETER DRIVEN | K,L,M,A,B

26431-31000

Unavailable

9

SLEEVE, DRIVEN GEAR | K,L,M,A,B

26441-31000

Unavailable

10

WASHER, GEAR SHAFT | K,L,M,A,B This part replaces 08211-08161.

09181-08167

$1.96

11

CIRCLIP | K,L,M,A,B

09380-07002

Unavailable

12

O RING | K,L,M,A,B

09280-16001

Unavailable

13

BOLT (6X10) | K,L,M,A,B This part replaces 09135-06002.

09135-06501

$3.04

14

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13
