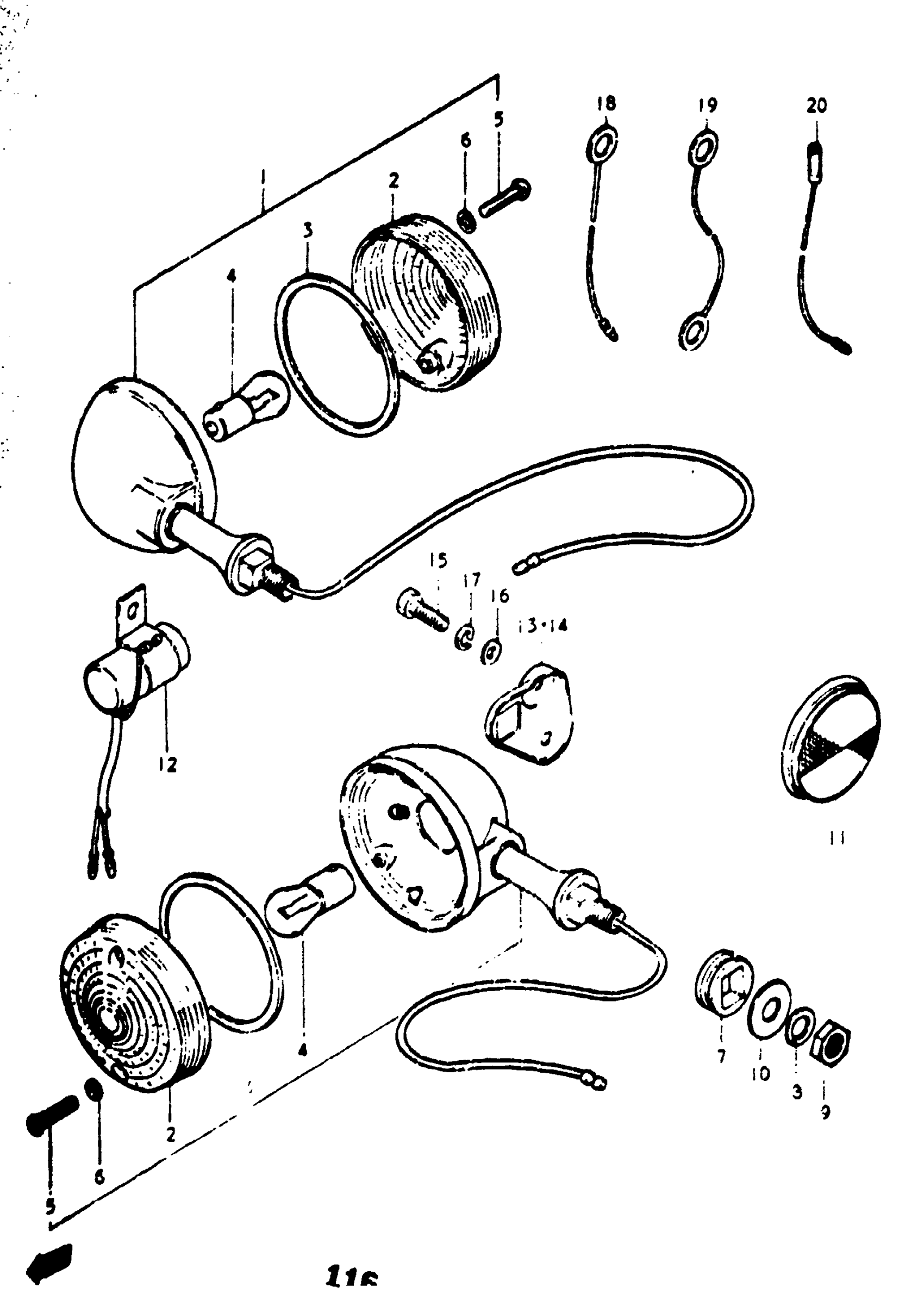

Suzuki GT750 (1977) TURN SIGNAL LAMP (GT750B) Diagram

#

Description
Price

1

FR TURN SIGNAL | B; Includes Item(s) 2 - 6 This part replaces 35601-45010.

35601-45X00-999

Unavailable

2

LENS | B

35612-45010

Unavailable

3

GASKET | B

35613-45010

Unavailable

4

BULB | 12V, 23W

09471-12006

$3.98

5

SCREW (4X30) | B This part replaces 02111-04308.

09125-04023

$2.30

6

GASKET | B

35627-43010

$2.28

7

RR TURN SIG CUS | B This part replaces 35690-32200.

35690-32201

$6.37

8

LOCK WASHER | B This part replaces 08321-21108.

08321-01107

$1.84

9

NUT | B This part replaces 08312-32108.

08310-00107

$2.19

10

WASHER, UPPER, OUTER | B This part replaces 09160-10006.

09160-10501

$2.33

11

REFLEX REFLECTOR, FRONT | BB This part replaces 35950-31210.

35950-45010

$17.09

12

TURN SIGNAL REL | B This part replaces 38610-32210.

38610-322V0

Unavailable

13

BRACKET, REAR TURN SIGNAL RH | B

41640-31600

Unavailable

14

BRACKET, REAR TURN SIGNAL LH | B

41650-31600

Unavailable

15

BOLT | B This part replaces 01111-10207.

01500-1020B

$3.16

16

WASHER | B This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | B This part replaces 08321-21108.

08321-01107

$1.84

18

LEAD WIRE, FRONT TURN SIGNAL L | BB

36660-33000

$4.52

19

LEAD WIRE, REAR TURN SIGNAL LA | BB

36660-32000

Unavailable

20

LEAD WIRE, REAR TURN SIGNAL LA | BB

36852-08400

Unavailable
