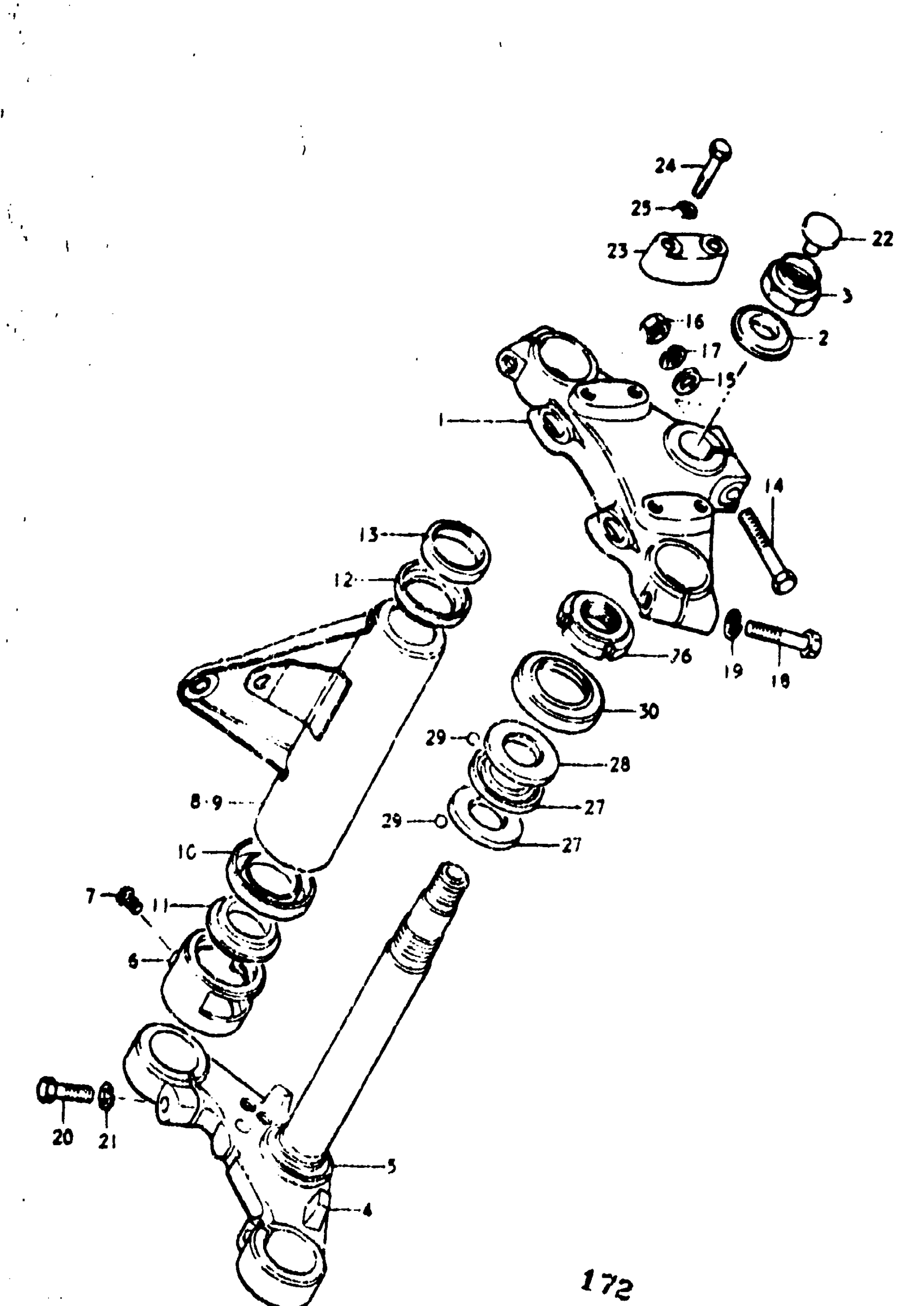

Suzuki GT750 (1977) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM HEAD | L,M,A; TO 51311-31701-019

51311-31700-019

Unavailable

1

NO DESCRIPTION AVAILABLE | B This part replaces 51311-31701-019.

51311-31701-291

Unavailable

2

WASHER, STEERING STEM HEAD | L,M,A,B

51356-31700

Unavailable

3

NUT | L,M,A,B This part replaces 51353-31700.

51353-31710

Unavailable

4

STEERING STEM | L,M,A; TO 51410-15210

51410-31700

Unavailable

4

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 5 This part replaces 51410-15210.

51410-15640

Unavailable

5

OUTER RACE | L,M,A,B

51621-33001

$16.25

6

COVER, STEERING STEM | L

51575-33100

Unavailable

6

COVER, STEERING STEM | M,A,B

51570-37000

Unavailable

7

SCREW | M,A,B This part replaces 02141-05067.

09125-05117

$2.72

8

BRACKET, HEADLAMP RH | L; TO 51530-31201

51530-31200

Unavailable

8

BRACKET, HEADLAMP RH | M,A

51530-31201

Unavailable

8

BRACKET, HEADLAMP RH | B

51530-31710-291

Unavailable

9

BRACKET, HEADLAMP LH | L; TO 51540-31201

51540-31200

Unavailable

9

BRACKET, HEADLAMP LH | M,A

51540-31201

Unavailable

9

BRACKET, HEADLAMP LH | B

51540-31710-291

Unavailable

10

SEAT, HEADLAMP DRACKET | L,M,A,B

51551-31000

Unavailable

11

CUSHION | L,M,A,B

51553-31000

Unavailable

12

CAP | L,M,A,B

51555-31000

Unavailable

13

CUSHION | L,M,A,B

51556-31000

Unavailable

14

BOLT | L,M,A,B This part replaces 01122-08508.

01500-08507

$3.05

15

WASHER | L,M,A,B This part replaces 08322-11088.

08322-01087

$2.13

16

NUT | L,M,A,B This part replaces 08312-12087.

08310-00087

$2.13

17

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

18

BOLT | L,M,A,B This part replaces 01121-10407.

01500-10407

$3.55

19

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

20

BOLT | L,M,A,B This part replaces 01122-10408.

01500-10407

$3.55

21

LOCK WASHER | L,M,A This part replaces 08321-21108.

08321-01107

$1.84

22

CAP, STEERING | L,M,A,B

09250-08005

$2.45

23

HOLDER, HANDLE, UPPER | K,L,M,A,B This part replaces 56211-27200-019.

56211-27200-291

$17.90

24

BOLT | K,L,M,A,B This part replaces 01221-08357.

01204-08357

$2.09

25

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

26

NUT, STEERING STEM | K,L,M,A,B

51631-28000

$17.37

27

RACE, INNER, LOWER | K,L; TO 51611-33002 This part replaces 51611-33001.

51611-33002

$13.81

27

INNER RACE, STEERING | M,A,B

51611-33002

$13.81

28

OUTER RACE, STEERING UPPER | K,L,M,A,B

51621-30001

Unavailable

29

STEEL BALL | K,L,M,A,B

06111-08003

$1.49

30

DUST SEAL, STEERING UPPER | K,L,M,A,B

51643-30000

Unavailable
