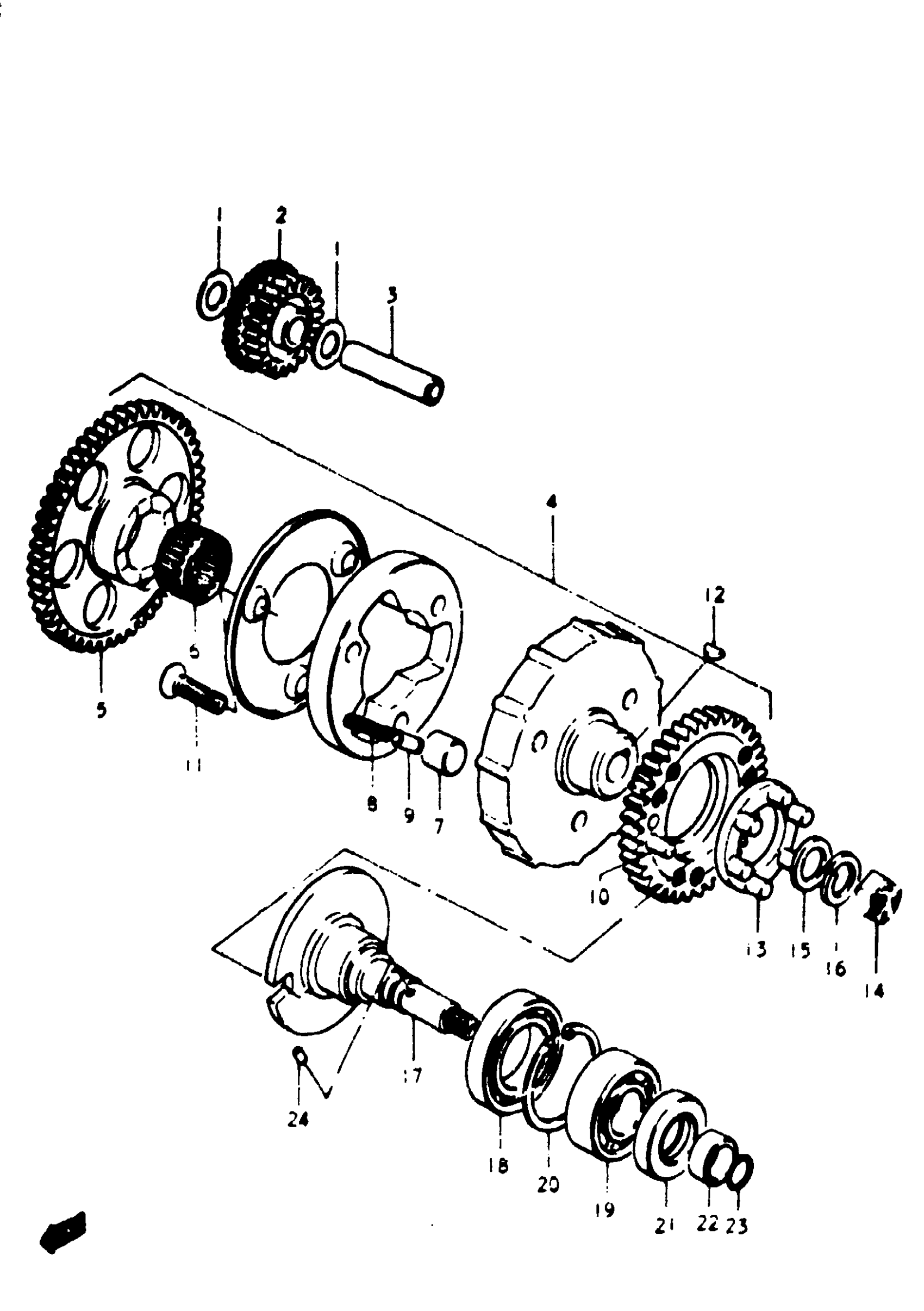

Suzuki GT750 (1977) STARTER CLUTCH Diagram

#

Description
Price

1

WASHER | K,L,M,A,B; 13.3x25x0.85

09160-13003

$1.99

2

GEAR, STARTER IDLE | K,L,M,A,B; NT:43/22

12611-31000

Unavailable

3

PIN | K,L,M,A,B

09206-13003

$15.70

4

STARTER CLUTCH SET | K,L; TO 12600-31831

12603-31816

Unavailable

4

NO DESCRIPTION AVAILABLE | M,A,B; FROM 12600-31831; Includes Item(s) 5 - 11 This part replaces 12600-31832.

12600-31833

Unavailable

5

GEAR | K,L,M,A,B; NT:55

12620-31003

Unavailable

6

BEARING | K,L,M,A,B This part replaces 09263-25011.

09263-25020

$16.65

7

ROLLER | K,L,M,A,B

09261-15001

$3.29

8

SPRING | K,L,M,A,B

09440-04015

$2.22

9

PIECE, ROLLER PUSH | K,L,M,A,B

12633-31000

$8.77

10

PIN | K,L,M,A,B; FOR WATER PUMP DRIVE GEAR* PAINTED BLUE

09261-07003

Unavailable

10

PIN (L:20) | K,L,M,A,B; FOR WATER PUMP DRIVE GEAR* PAINTED RED This part replaces 06211-07202.

04221-07209

$2.30

11

NO DESCRIPTION AVAILABLE | K,L,M,A,B This part replaces 02121-08308.

09126-08003

Unavailable

12

KEY | K,L,M,A,B

08341-31039

$1.89

13

RUBBER, BREAKER CAM SHAFT | K,L,M,A,B; FROM 12719-31040

12582-31040

Unavailable

14

NUT, FIXED DRIVE FACE | K,L,M,A,B This part replaces 08312-11128.

09140-12039

$3.05

15

WASHER | K,L,M,A,B This part replaces 08322-11128.

08322-01127

$1.84

16

LOCK WASHER | K,L,M,A,B This part replaces 08321-21128.

08321-01127

$2.06

17

SHAFT, BREAKER CAM | K,L,M,A,B; FROM 12711-31000

12555-31000

Unavailable

18

BEARING | K,L,M,A,B

09262-30020

Unavailable

19

BEARING (15X42X13) | K,L,M,A,B This part replaces 08110-63020.

09262-15027

$23.39

20

CIRCLIP | K,L,M,A,B This part replaces 08331-21429.

08331-41429

$2.41

21

OIL SEAL | K,L,M,A,B

09283-20024

$5.11

22

SPACER | K,L,M,A,B; 14x20x9

09180-14006

Unavailable

23

O RING | K,L,M,A,B

09280-12003

Unavailable

24

PIN | K,L,M,A,B This part replaces 06211-03052.

04221-03059

$1.72
